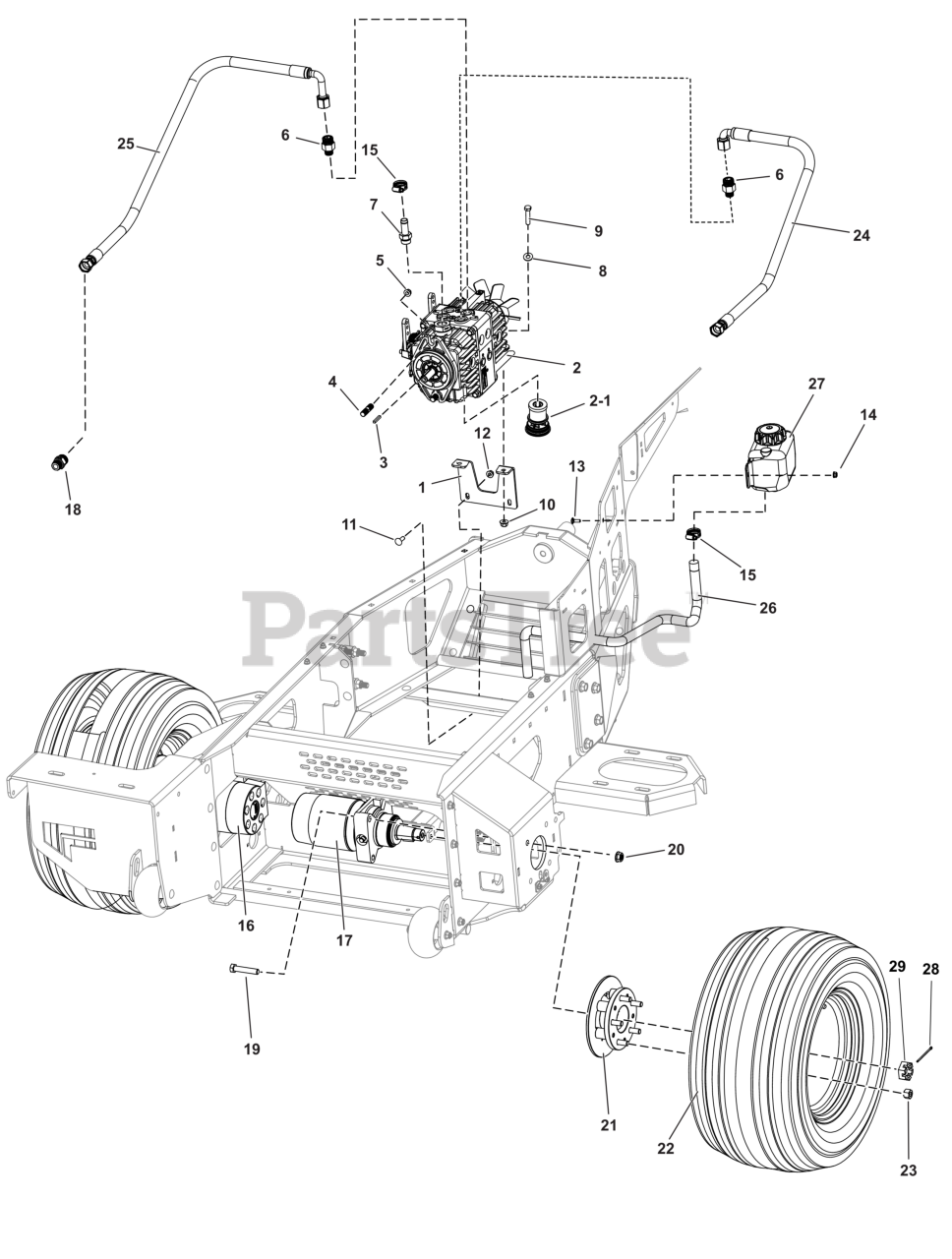

LZ 250800 V - Lesco Stand-On Spreader Sprayer Transmission Group Parts Diagram

Stand-On Spreader Sprayer

Transmission Group Parts Diagram

  • Title

1

5420324

BRACKET, PARKER HP2 PUMP

$

$

Not available

2

5107628

PUMP, TANDEM PARKER HP2

Note: (Includes ref # 2-1.)

$

$

Not available

2-1

84009390

FILTER

Note: (Filter for ref #2.)

$

$

Not available

3

5108837

KEY 3/16" SQ X 1 1/4"

$

$

Not available

4

5107695

STUD, SETUP .500"-13 X .750", 1.875" OAL

$

$

Not available

5

5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$

$

Not available

6

5108202

ADP-HYD, STR 8 MORB - 10 MORFS

$

$

Not available

7

5108323

FTG-HYD, STR 10 HB X 10 MORB

$

$

Not available

8

5107661

WSHR-SS, FLT .438"X 1.000"X.083" USS

$

$

Not available

9

5106518

SCR-CAP, HEX .375"-16 X 1.7500" SS188

$

$

Not available

10

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

11

5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$

$

Not available

12

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

13

5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$

$

Not available

14

5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$

$

Not available

15

5108877

CLAMP, HOSE, WORM GEAR, 11/16" TO 1-1/4"

$

$

Not available

16

5107623

TG0475UB081AAAC LH WHEEL MOTOR

$

$

Not available

17

5107622

TG0475UB080AAVH RH WHEEL MOTOR

$

$

Not available

18

5108267

ADP-HYD, STR 10 MORB - 10 MORFS

$

$

Not available

19

5108353

SCR-CAP, HEX .500'-13 X 2.500" G8 YZ

$

$

Not available

20

5025396

NUT, Hex Flange, Nylock, 1/2-13

$

$

Not available

21

5418910

ASM, WHEEL HUB

$

$

Not available

22

5108505

WHEEL/TIRE 24X12-12 GRASSMASTER

$

$

Not available

23

5105964

NUT-LUG, .500"-20 ZP

$

$

Not available

24

5108316

HOSE, HYDRAULIC ASSY 33.5 SHORT 90

$

$

Not available

25

5108317

HOSE, HYDRAULIC ASSY 35.0 LONG 90

$

$

Not available

26

5420070

HOSE, HYD EXPANSION .625" X 26.5"

$

$

Not available

27

5108463

TANK, EXP. 1 QUART W/ 5/8" STR FITTING

$

$

Not available

28

5025721

PIN, COTTER .125 X 2.50 CZ

$

$

Not available

29

5025722

NUT, CASTLE 1-20 UNEF, WHEEL MOTOR CZ

$

$

Not available
