LZ 30 (968999776) - Husqvarna Zero-Turn Mower (2008-01) Parking Brake Parts Diagram

Zero-Turn Mower

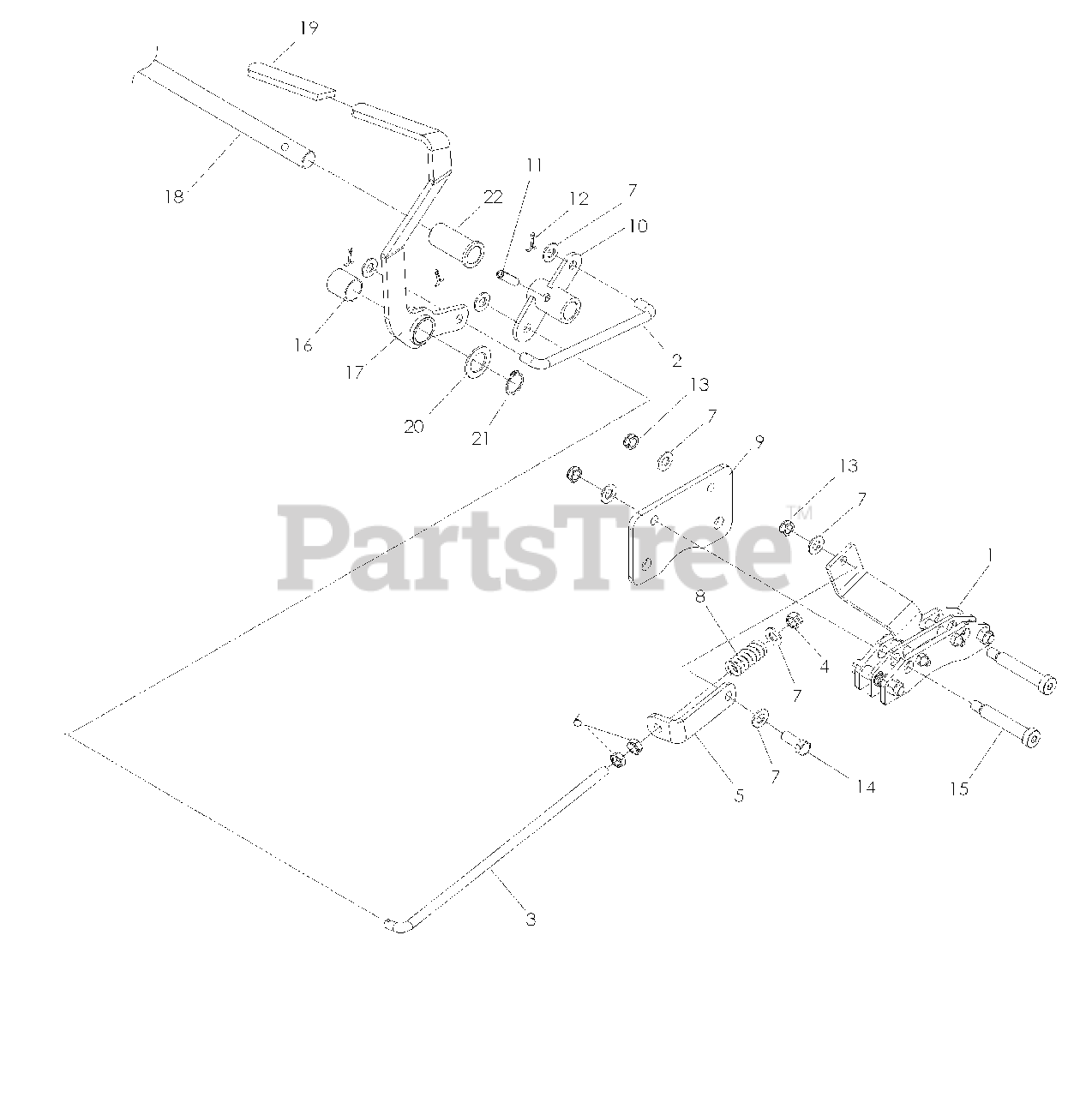

Parking Brake Parts Diagram

  • Title

1

Husqvarna 539133047

CALIPER, PARK BRAKE

$120.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539113947

LINKAGE, BRAKE

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539113949

LINKAGE, REAR BRAKE

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990289

NUT 3/8-24 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113950

BRACKET L

$15.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108732

NUT 3/8-24 HEX JAM

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990122

WASHER, 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539113948

PLATE, BRAKE

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113946

BELLCRANK, BRAKE

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110631

ROLL PIN

$3.99

$

In Stock, Qty 16

0

12

Husqvarna 539990037

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC

$

$

Not available

14

Husqvarna 539990563

HCS 3/8-16 x 1

$1.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539113951

SB 3/8-16 x 2 SKT HD

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539108616

LEVER, BRAKE

$54.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539110624

CROSS SHAFT

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539105036

GRIP, BRAKE HANDLE

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 539923787

BUSHING

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 539101151

RETAINER RING

$

$

Not available

22

Husqvarna 539113479

BUSHING, 3/4 x 2

$12.99

$

Usually ships in 3-10 days

0
