LZ 30 C (968999751) - Husqvarna Zero-Turn Mower (2008-01) CASTERS Parts Diagram

Zero-Turn Mower

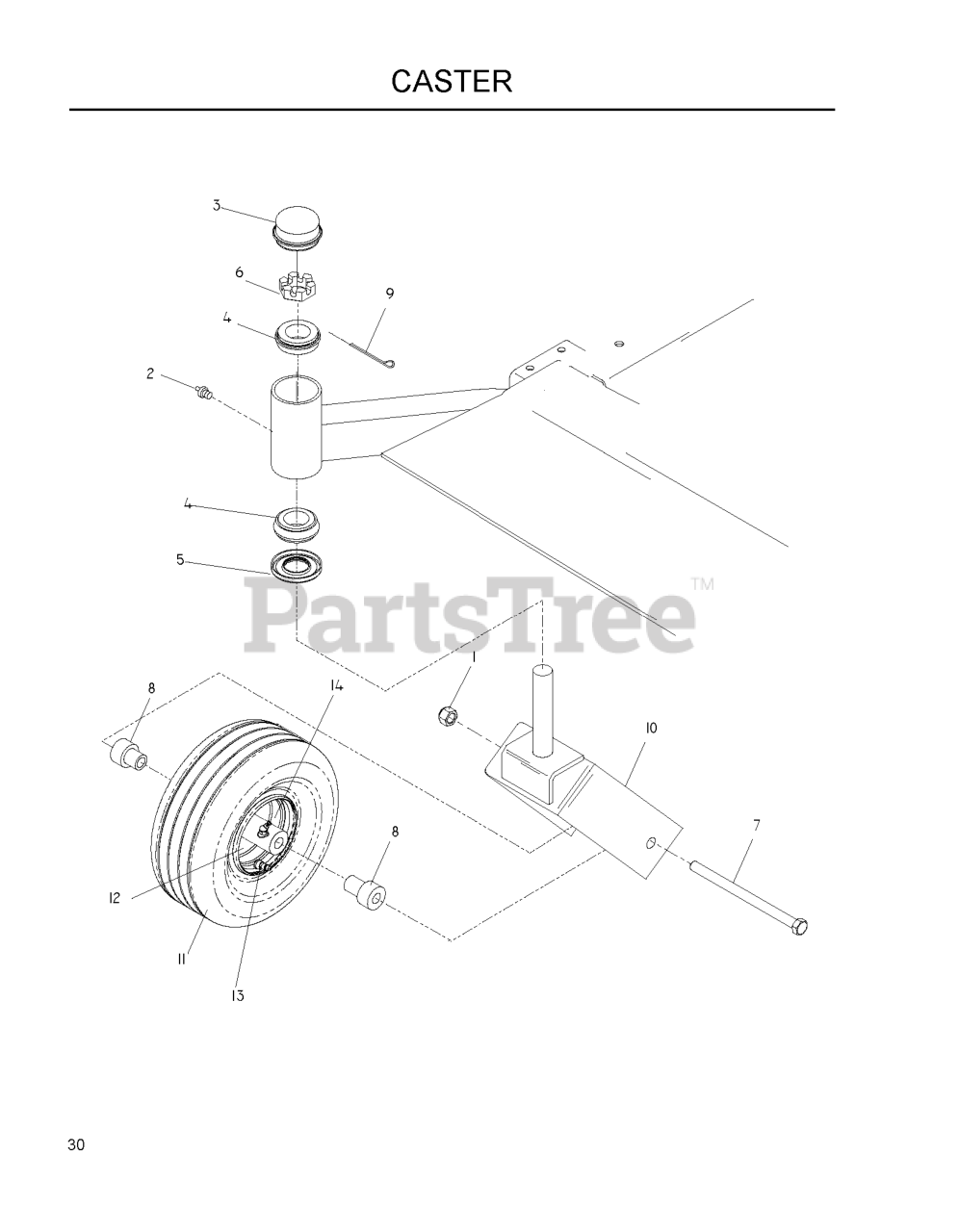

CASTERS Parts Diagram

  • Title

4

Husqvarna 539102543

TAPERED ROLLER BRG

$23.99

$

In Stock, only 2 left!

0

9

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

5

Husqvarna 539102851

SEAL

$8.49

$

In Stock, Qty 16

0

1

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539105523

RIM

$

$

Not available

8

Husqvarna 539105518

AXLE SPACER

$10.99

$

In Stock, Qty 14

0

6

Husqvarna 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$14.99

$

In Stock, only 3 left!

0

3

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 539105982

CASTOR YOKE ORANGE

$

$

Not available

11

Husqvarna 539105521

FRONT TIRE ASSY

$193.99

$

In Stock, Qty 12

0

13

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 15

0

2

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 2 left!

0
