LZ 30 C (968999751) - Husqvarna Zero-Turn Mower (2008-01) FUEL SYSTEM Parts Diagram

Zero-Turn Mower

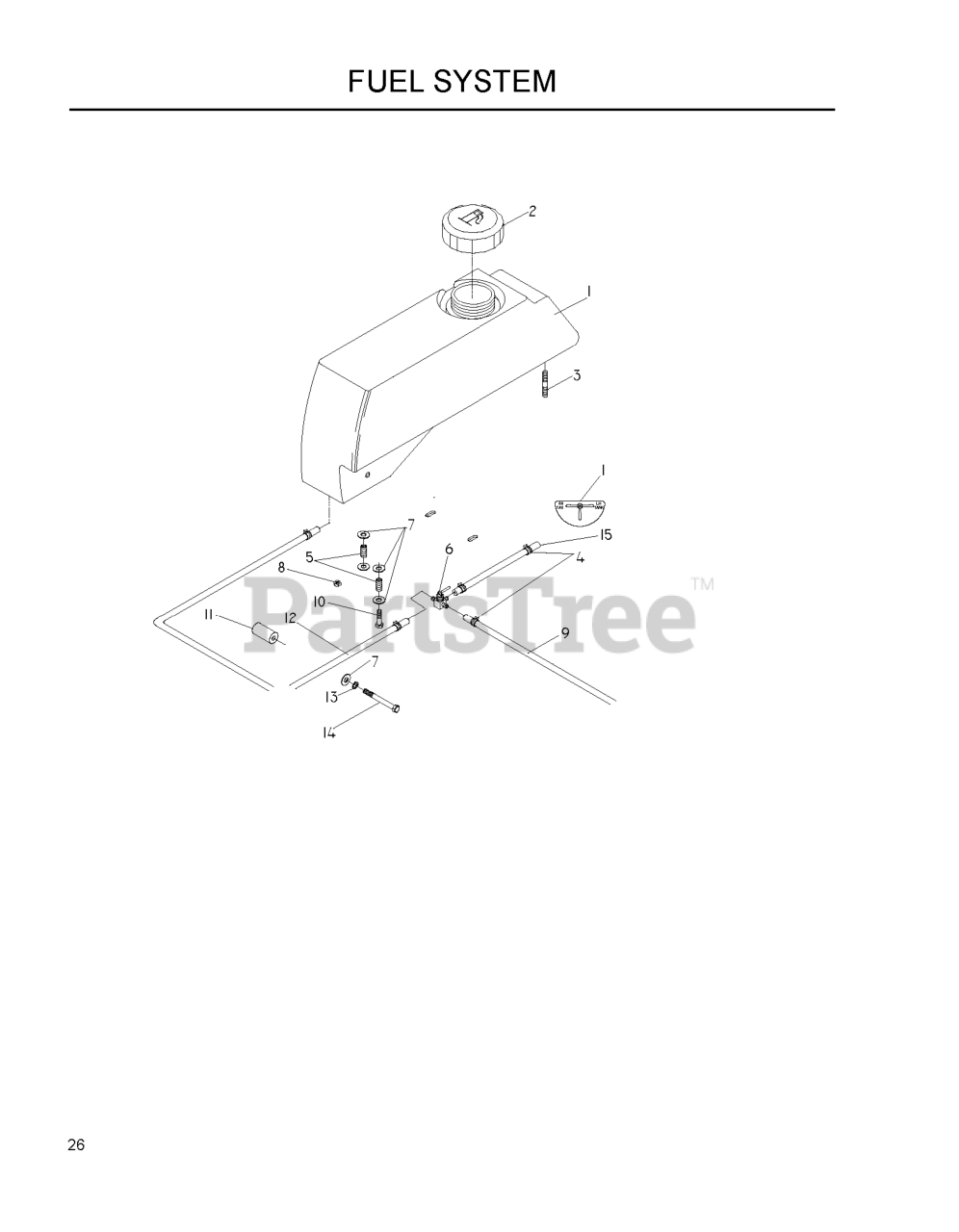

FUEL SYSTEM Parts Diagram

  • Title

8

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

12

Husqvarna 539922091

FUEL LINE

$

$

Not available

13

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 539105280

HOSE 35"

$

$

Not available

1

Husqvarna 539104410

FUEL TANK RT

Note: RT

$

$

Not available

2

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$37.99

$

In Stock, only 2 left!

0

6

Husqvarna 539102679

FUEL VALVE
(Superseded to 598462501)

$51.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

1

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

Note: LT

$

$

Not available

3

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

4

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539102670

DECAL, FUEL VALVE

$

$

Not available

11

Husqvarna 539104897

TANK SPACER

$

$

Not available

5

Husqvarna 539102845

SPRING

$3.49

$

In Stock, Qty 5

0

14

Husqvarna 539102335

HCS 5/16C X 4

$

$

Not available
