LZ-48 (53AM2PTB050) - Cub Cadet 48" Tank Zero-Turn Mower (2013) B&S 44M977-0938-G5 Gasket Sets Parts Diagram

48" Tank Zero-Turn Mower

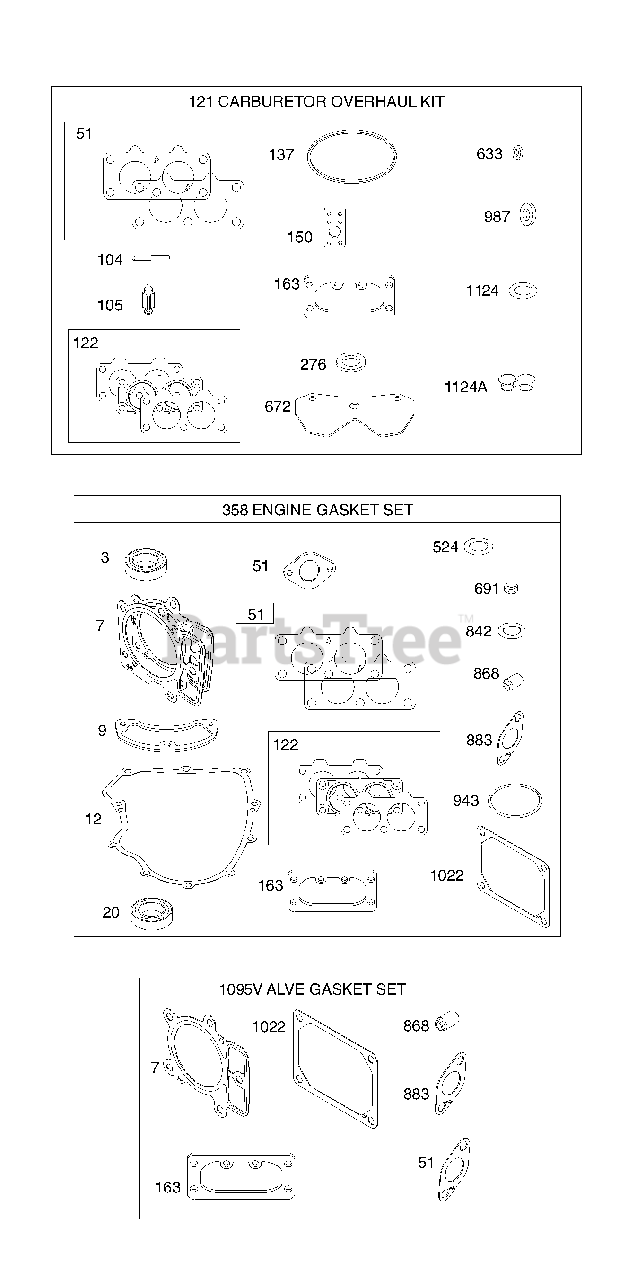

B&S 44M977-0938-G5 Gasket Sets Parts Diagram

  • Title

1

Cub Cadet BS-799087

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-797673

Kit-Bushing/Seal (Magneto Side)

$19.99

$

In Stock, Qty 10

0

3

BS-391086s

Seal-Oil (Magneto Side)

$

$

Not available

4

Cub Cadet BS-797502

Sump-Engine

$

$

Not available

5

Cub Cadet BS-796231

Head-Cylinder (Cylinder 1)
(Superseded to BS-84001918)

$259.99

$

In Stock, Qty 20+

0

5A

Cub Cadet BS-796232

Head-Cylinder (Cylinder 2)
(Superseded to BS-597562)

$

$

Not available

7

Cub Cadet BS-693997

Gasket-Cylinder Head

$25.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-792185

Breather Assembly

$

$

Not available

9

Cub Cadet BS-690937

Gasket-Breather

$8.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-691108

Screw (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-792184

Tube-Breather

$

$

Not available

12

Cub Cadet BS-697227

Gasket-Crankcase
(Superseded to BS-594195)

$39.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-793988

Screw (Cylinder Head)
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-796256

Crankshaft

$

$

Not available

20

Cub Cadet BS-795387

Seal-Oil (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-694966

Screw (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-799090

Flywheel

$

$

Not available

24

BS-222698s

Key-Flywheel (Aluminum)

$

$

Not available

25

Cub Cadet BS-793560

Piston Assembly (Standard)

$175.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-793563

Piston Assembly (.020" Oversize)

$189.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-792026

Ring Set (Standard)

$49.99

$

In Stock, Qty 20+

0

26

Cub Cadet BS-792073

Ring Set (.020" Oversize)

$67.99

$

In Stock, only 2 left!

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$4.49

$

In Stock, Qty 18

0

28

Cub Cadet BS-696581

Pin-Piston

$19.99

$

In Stock, Qty 6

0

29

Cub Cadet BS-796209

Rod-Connecting

$

$

Not available

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 18

0

33

Cub Cadet BS-697576

Valve-Exhaust

$47.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-792200

Valve-Intake

$28.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-694865

Spring-Valve (Intake)

$6.49

$

In Stock, Qty 8

0

36

Cub Cadet BS-694865

Spring-Valve (Exhaust)

$6.49

$

In Stock, Qty 8

0

42

Cub Cadet BS-499586

Keeper-Valve

$

$

Not available

45

Cub Cadet BS-690977

Tappet-Valve

$8.49

$

In Stock, Qty 20+

0

46

Cub Cadet BS-792242

Gear-Cam

$26.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-797092

Short Block

$

$

Not available

50

Cub Cadet BS-797503

Manifold-Intake

$95.99

$

In Stock, Qty 15

0

51

Cub Cadet BS-690949

Gasket-Intake

$3.49

$

In Stock, Qty 20+

0

51A

Cub Cadet BS-796876

Gasket-Intake
(Superseded to BS-798759)

$16.99

$

In Stock, only 4 left!

0

53

Cub Cadet BS-690951

Stud (Carburetor)

$7.49

$

In Stock, Qty 8

0

54

Cub Cadet BS-699816

Screw (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

73

Cub Cadet BS-799098

Screen-Rotating

$

$

Not available

74

Cub Cadet BS-799099

Screw (Rotating Screen)

$

$

Not available

75

Cub Cadet BS-691056

Washer (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

In Stock, Qty 12

0

98

Cub Cadet BS-699721

Kit-Idle Speed

$15.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-694918

Pin-Float Hinge

$7.99

$

In Stock, only 2 left!

0

105

Cub Cadet BS-797410

Valve-Float Needle

$16.99

$

In Stock, Qty 7

0

108

Cub Cadet BS-699723

Valve-Choke

$9.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-842081

Jet-Main (Standard) (Left & Right Jets)

$20.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-699733

Jet-Main (High Altitude) (Left &Right Jets)

$19.99

$

In Stock, Qty 5

0

121

Cub Cadet BS-793132

Kit-Carburetor Overhaul

$

$

Not available

122

Cub Cadet BS-798759

Spacer-Carburetor

$16.99

$

In Stock, only 4 left!

0

125

Cub Cadet BS-799109

Carburetor

$282.99

$

In Stock, only 1 left!

0

130

Cub Cadet BS-690993

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-799113

Kit-Throttle Shaft

$61.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-699724

Float-Carburetor

$34.99

$

In Stock, only 3 left!

0

135

Cub Cadet BS-699729

Tube-Fuel Transfer

$38.99

$

In Stock, Qty 15

0

137

Cub Cadet BS-690994

Gasket-Float Bowl

$6.99

$

In Stock, Qty 20+

0

141

Cub Cadet BS-799112

Kit-Choke Shaft

$46.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-796871

Nozzle-Carburetor

$24.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 20+

0

150

Cub Cadet N/A

Gasket-Nozzle

$

$

Currently unavailable

163

Cub Cadet BS-691001

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 7

0

186

Cub Cadet BS-796532

Connector-Hose (Oil Drain Hose)

$11.99

$

In Stock, Qty 9

0

186A

Cub Cadet BS-799158

Connector-Hose (EVAP System)

$11.99

$

In Stock, Qty 20+

0

186B

Cub Cadet BS-841511

Connector-Hose (Oil Cooler Diverter)

$

$

Not available

186C

Cub Cadet BS-794873

Connector-Hose (Intake Manifold)

$24.99

$

Usually ships in 2-12 days

0

186D

Cub Cadet BS-845141

Connector-Hose (EVAP System)

$11.99

$

In Stock, only 3 left!

0

187

Cub Cadet 751-10349

Line-Fuel (Cut to Required Length)

$9.99

$

Usually ships in 3-6 days

0

188

Cub Cadet BS-691108

Screw (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$12.99

$

In Stock, Qty 6

0

197

Cub Cadet BS-697820

Screw (Back Plate)

$4.49

$

In Stock, Qty 12

0

209

Cub Cadet BS-799171

Spring-Governor (Light Blue)

$8.49

$

In Stock, only 2 left!

0

211

Cub Cadet BS-691019

Spring-Governed Idle (No Color)

$5.49

$

In Stock, Qty 18

0

212

Cub Cadet BS-695238

Link-Throttle

$8.99

$

In Stock, Qty 20+

0

213

Cub Cadet BS-799510

Bracket-Choke

$50.99

$

Usually ships in 2-12 days

0

216

Cub Cadet BS-691022

Link-Choke

$8.99

$

In Stock, only 1 left!

0

217

Cub Cadet BS-799771

Spring-Choke Return

$8.99

$

In Stock, only 2 left!

0

219

Cub Cadet BS-793338

Gear-Governor

$30.99

$

In Stock, Qty 20+

0

220

Cub Cadet BS-799772

Washer (Governor Gear)

$6.99

$

In Stock, Qty 20+

0

221

Cub Cadet BS-841026

Cup-Governor

$12.99

$

In Stock, only 2 left!

0

222

Cub Cadet BS-798916

Bracket-Control

$41.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-798856

Lever-Governor Control

$25.99

$

In Stock, Qty 9

0

231

Cub Cadet BS-690718

Screw (Choke Valve)

$5.99

$

In Stock, Qty 12

0

240

Cub Cadet BS-691035

Filter-Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

250

Cub Cadet BS-690957

Retainer-Breather

$7.99

$

In Stock, Qty 13

0

252

Cub Cadet BS-794389

Collector-Oil

$

$

Not available

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, only 1 left!

0

267

Cub Cadet BS-792629

Screw (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

276

Cub Cadet BS-695410

Washer-Sealing

$7.49

$

In Stock, Qty 20+

0

278

Cub Cadet BS-792651

Washer (Governor Control Lever)

$25.99

$

In Stock, Qty 9

0

287

Cub Cadet BS-697820

Screw (Dipstick Tube)

$4.49

$

In Stock, Qty 12

0

304

Cub Cadet BS-799957

Housing-Blower

$140.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-691005

Screw (Blower Housing) (1/4-20x.68)
(Superseded to BS-594618)

$3.99

$

In Stock, Qty 20+

0

305A

Cub Cadet BS-691130

Screw (Blower Housing to Intake Elbow)

$

$

Not available

306

Cub Cadet BS-796852

Shield-Cylinder (Cylinder 2)

$

$

Not available

306A

Cub Cadet BS-798855

Shield-Cylinder (Cylinder 1)

$

$

Not available

307

Cub Cadet BS-691003

Screw (Cylinder Shield) (#10-24x.43)

$3.99

$

In Stock, Qty 12

0

307A

Cub Cadet BS-691108

Screw (Cylinder Shield) (1/4-20x.62)

$3.49

$

In Stock, Qty 20+

0

309

Cub Cadet BS-590476

Motor-Starter

$186.99

$

In Stock, Qty 9

0

332

Cub Cadet BS-691059

Nut (Flywheel)

$4.99

$

In Stock, Qty 8

0

333

Cub Cadet BS-799651

Armature-Magneto
(Superseded to BS-592846)

$56.99

$

Usually ships in 2-12 days

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

Cub Cadet BS-792015

Plug-Spark

$3.99

$

In Stock, Qty 20+

0

358

Cub Cadet BS-799117

Gasket Set-Engine

$129.99

$

In Stock, only 2 left!

0

385

Cub Cadet BS-797409

Screw (Fuel Pump)

$3.99

$

In Stock, Qty 5

0

387

Cub Cadet BS-808656

Pump-Fuel
(Superseded to BS-597338)

$30.99

$

In Stock, Qty 20+

0

400

Cub Cadet BS-796862

Cooler-Oil

$133.99

$

Usually ships in 2-12 days

0

404

Cub Cadet BS-690442

Washer (Governor Crank)

$3.99

$

In Stock, Qty 11

0

415

Cub Cadet BS-794903

Plug

$5.99

$

In Stock, Qty 7

0

417

Cub Cadet BS-695629

Screw (Oil Cooler) (1/4-20x.31)

$3.99

$

Usually ships in 2-12 days

0

418

Cub Cadet BS-795912

Plate-Carburetor

$15.99

$

In Stock, only 2 left!

0

431

Cub Cadet BS-799097

Elbow-Intake

$53.99

$

In Stock, only 1 left!

0

445

Cub Cadet BS-798897

Filter-Air Cleaner Cartridge

$31.99

$

In Stock, Qty 8

0

447

Cub Cadet BS-691003

Screw (Air Guide Cover)

$3.99

$

In Stock, Qty 12

0

448

Cub Cadet BS-799103

Bracket-Oil Cooler

$35.99

$

Usually ships in 2-12 days

0

467

Cub Cadet BS-790697

Knob-Air Cleaner

$8.49

$

In Stock, Qty 20+

0

474

Cub Cadet BS-696458

Alternator
(Superseded to BS-592830)

$111.99

$

In Stock, Qty 11

0

496

Cub Cadet BS-799095

Lever-Air Cleaner Filter

$31.99

$

Usually ships in 2-12 days

0

501

Cub Cadet BS-797375

Regulator
(Superseded to BS-845907)

$67.99

$

In Stock, Qty 20+

0

505

Cub Cadet BS-691029

Nut (Governor Control Lever)

$5.99

$

In Stock, only 1 left!

0

512

Cub Cadet BS-796530

Hose-Oil Drain
(Superseded to BS-594200)

$26.99

$

In Stock, Qty 11

0

523

Cub Cadet BS-691036

Dipstick
(Superseded to BS-594528)

$20.99

$

In Stock, Qty 8

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, Qty 20+

0

525

Cub Cadet BS-691037

Tube-Dipstick

$

$

Not available

526

Cub Cadet BS-691108

Screw (Regulator)

$3.49

$

In Stock, Qty 20+

0

552

Cub Cadet BS-796638

Bushing-Governor Crank

$7.49

$

In Stock, only 2 left!

0

552A

Cub Cadet BS-690553

Bushing-Governor Crank

$7.49

$

In Stock, Qty 5

0

562

Cub Cadet BS-690311

Screw (Governor Control Lever)

$4.49

$

In Stock, only 2 left!

0

573

Cub Cadet BS-790444

Plate-Back

$65.99

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-691038

Clamp-Hose (Black)

$3.99

$

In Stock, Qty 20+

0

601A

Cub Cadet BS-841597

Clamp-Hose (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

615

Cub Cadet BS-698290

Retainer-Governor Shaft

$4.99

$

In Stock, only 2 left!

0

616

Cub Cadet BS-691045

Crank-Governor

$21.99

$

In Stock, Qty 7

0

617

Cub Cadet BS-697891

Seal-O Ring (Intake Manifold) (Red)
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

635

Cub Cadet BS-692076

Boot-Spark Plug

$5.99

$

In Stock, Qty 20+

0

654

Cub Cadet BS-690958

Nut (Carburetor)

$3.49

$

In Stock, Qty 20+

0

672

Cub Cadet BS-690234

Gasket-Carburetor Plate

$13.99

$

In Stock, Qty 20+

0

691

Cub Cadet BS-790574

Seal-Governor Shaft

$6.49

$

In Stock, Qty 20+

0

697

Cub Cadet BS-791680

Screw (Drive Cap)

$4.49

$

In Stock, only 4 left!

0

703

Cub Cadet BS-691010

Clip (Fuel Line)

$6.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$7.49

$

In Stock, Qty 5

0

729

Cub Cadet BS-797454

Clip-Wire

$5.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-690980

Gear-Timing

$16.99

$

In Stock, only 2 left!

0

742

Cub Cadet BS-690328

Retainer-E Ring (Governor Crank)

$4.49

$

In Stock, Qty 11

0

750

Cub Cadet BS-796208

Screw (Oil Pump Cover)

$4.49

$

In Stock, only 3 left!

0

789

Cub Cadet BS-797424

Harness-Wiring

$39.99

$

In Stock, only 3 left!

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.99

$

In Stock, Qty 18

0

829

Cub Cadet BS-799104

Hose-Oil Cooler

$51.99

$

In Stock, only 2 left!

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick)

$5.99

$

In Stock, Qty 20+

0

851

BS-493880s

Terminal-Spark Plug

$

$

Not available

865

Cub Cadet BS-792286

Cover-Air Guide (Valley)

$37.99

$

Usually ships in 2-12 days

0

868

Cub Cadet BS-690968

Seal-Valve

$10.99

$

In Stock, Qty 20+

0

875

Cub Cadet BS-799094

Base-Air Cleaner

$65.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-690970

Gasket-Exhaust

$4.99

$

In Stock, Qty 20+

0

890

Cub Cadet BS-799100

Plate-Support

$14.99

$

Usually ships in 2-12 days

0

914

Cub Cadet BS-691127

Screw (Rocker Cover)

$4.49

$

Usually ships in 2-12 days

0

918

Cub Cadet BS-799160

Hose-Vacuum

$8.49

$

In Stock, Qty 8

0

918A

Cub Cadet BS-797408

Hose-Vacuum (Rocker Cover)
(Superseded to BS-596163)

$8.49

$

In Stock, Qty 20+

0

921

Cub Cadet BS-799092

Cover-Blower Housing

$

$

Not available

929

Cub Cadet BS-792629

Screw (Choke Control Bracket)

Note: (To Air Cleaner Base)

$3.99

$

In Stock, only 2 left!

0

929A

Cub Cadet BS-691003

Screw (Choke Control Bracket)

Note: (To Manifold) (#10-24x.43)

$3.99

$

In Stock, Qty 12

0

934

Cub Cadet BS-791680

Screw (Fan Retainer)

$4.49

$

In Stock, only 4 left!

0

943

Cub Cadet BS-796222

Seal-O Ring (Oil Pump Cover)

$6.99

$

In Stock, Qty 20+

0

947

Cub Cadet BS-798779

Solenoid-Fuel

$183.99

$

In Stock, Qty 5

0

964

Cub Cadet BS-799159

Cap-Connector

$8.99

$

In Stock, only 2 left!

0

965

Cub Cadet BS-796221

Cover-Oil Pump

$11.99

$

In Stock, Qty 6

0

968

Cub Cadet BS-799102

Cover-Air Cleaner

$43.99

$

In Stock, only 2 left!

0

969

Cub Cadet BS-799093

Screw (Blower Housing Cover)

$4.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-798778

Bowl-Float

$197.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-808183

Seal-Throttle Shaft

$16.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-791236

Fan-Flywheel
(Superseded to BS-593640)

$28.99

$

In Stock, Qty 7

0

1006

Cub Cadet BS-798750

Retainer-Fan

$

$

Not available

1017

Cub Cadet BS-796214

Screen-Oil Pump

$11.99

$

In Stock, only 2 left!

0

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-793146

Cover-Rocker (Cylinder 1)

$

$

Not available

1023A

Cub Cadet BS-499600

Cover-Rocker (Cylinder 2)

$17.99

$

In Stock, Qty 14

0

1024

Cub Cadet BS-796220

Pump-Oil

$34.99

$

In Stock, only 2 left!

0

1026

Cub Cadet BS-690981

Rod-Push (Steel) (Exhaust)
(Superseded to BS-597785)

$8.99

$

In Stock, Qty 20+

0

1026A

Cub Cadet BS-690982

Rod-Push (Aluminum) (Intake)

$8.99

$

In Stock, Qty 20+

0

1027

Cub Cadet BS-696854

Filter-Oil

$13.99

$

In Stock, Qty 20+

0

1028

Cub Cadet BS-796864

Adapter-Oil Filter

$51.99

$

Usually ships in 2-12 days

0

1029

Cub Cadet BS-690972

Arm-Rocker

$14.99

$

In Stock, Qty 20+

0

1036

Cub Cadet N/A

Label-Emissions

Note: (Available from a Briggs & Stratton)

$

$

Currently unavailable

1054

Cub Cadet BS-280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Cub Cadet BS-698516

Kit-Screw/Washer (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1095

Cub Cadet BS-694013

Gasket Set-Valve

$72.99

$

In Stock, Qty 14

0

1100

Cub Cadet BS-791959

Pivot-Rocker Arm

$7.99

$

In Stock, Qty 5

0

1119

Cub Cadet BS-93621

Screw (Alternator)
(Superseded to BS-691183)

$

$

Not available

1124A

Cub Cadet BS-841653

Seal-O Ring (Fuel Transfer Tube)

$13.99

$

In Stock, Qty 20+

0

1126

Cub Cadet BS-690991

Screw (Fuel Transfer Tube)

$4.49

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-695407

Screw (Fuel Bowl)

$4.99

$

In Stock, Qty 20+

0

1128

Cub Cadet BS-690990

Screw (Carburetor Nozzle)

$4.49

$

Usually ships in 2-12 days

0

1169

Cub Cadet BS-690990

Screw (Carburetor Plate)

$4.49

$

Usually ships in 2-12 days

0

1329

Cub Cadet BS-44Q777-0036

Replacement Engine
(Superseded to BS-44S877-0001)

$

$

Not available

1366

Cub Cadet BS-799131

Diverter-Oil Cooler

$93.99

$

In Stock, only 1 left!

0

1372

Cub Cadet BS-799101

Stud (Rotating Screen)

$

$

Not available

1373

Cub Cadet BS-799105

Screw ((Oil Cooler Bracket)

$3.99

$

Usually ships in 2-12 days

0

1374

Cub Cadet BS-796863

Seal-O Ring (Oil Cooler Diverter)

$6.49

$

In Stock, Qty 20+

0

1395

Cub Cadet BS-698304

Screw (Air Cleaner Base)

$3.99

$

In Stock, only 2 left!

0

1406

Cub Cadet BS-799096

Valve-Debris

$19.99

$

Usually ships in 2-12 days

0

1448

Cub Cadet BS-690260

Washer (Magneto Armature)

$9.49

$

In Stock, only 2 left!

0
