LZ 5043 (960910015-01) - Lazer Tiller (2010-10) TINE SHIELD Parts Diagram

Tiller

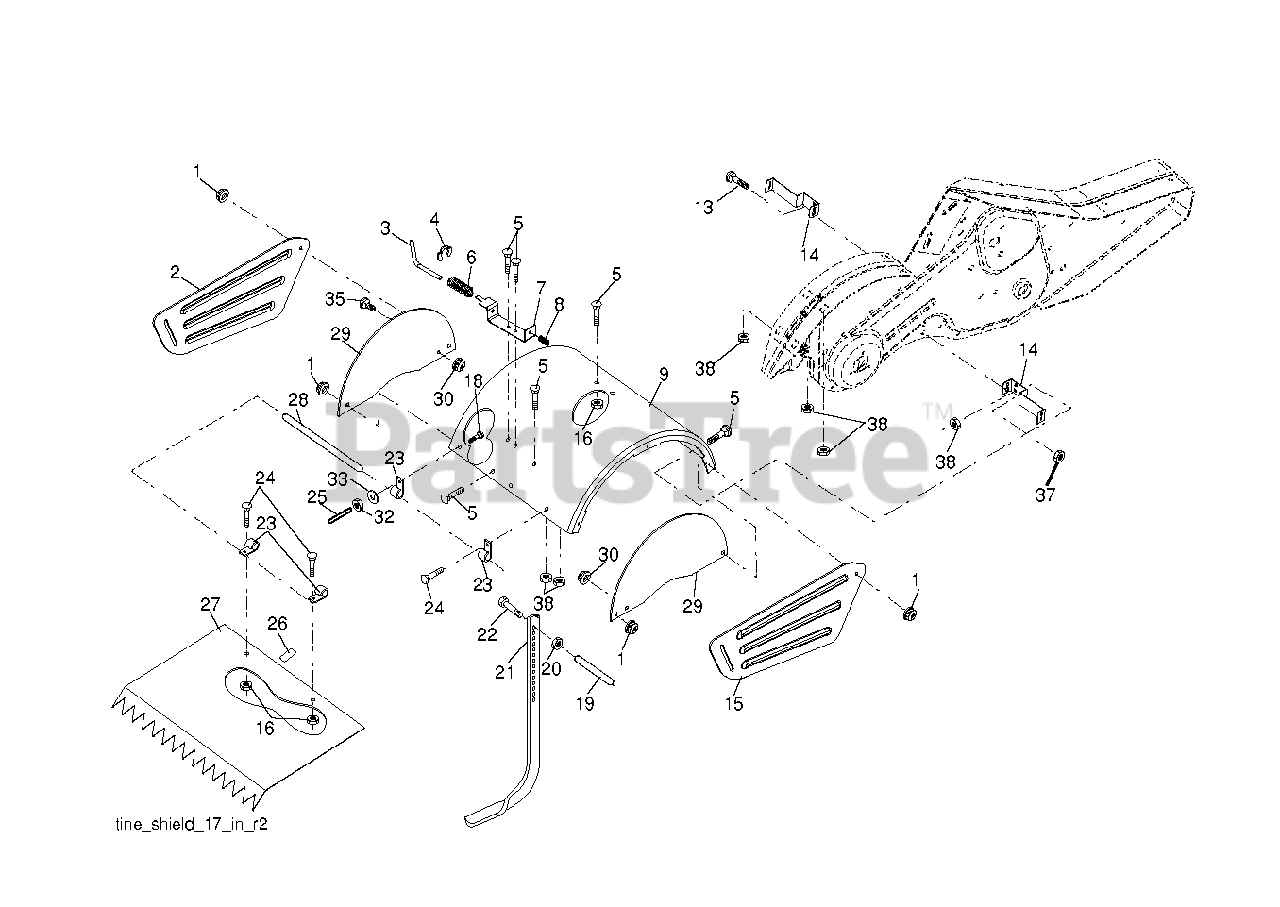

TINE SHIELD Parts Diagram

  • Title

1

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 532164062

No Description Available

$30.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

5

Electrolux/AYP 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532008394

SPRING TI

$7.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532008392

LATCH BRACKET TI

$

$

Not available

8

Electrolux/AYP 532109230

SPRING CRT

$6.49

$

In Stock, Qty 12

0

9

Electrolux/AYP 532142036

NO LONGER AVAILABLE
(Superseded to 532442858)

$54.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532124311

BRACKET.TINE.SHIELD.TILLER
(Superseded to 581813501)

$

$

Not available

15

Electrolux/AYP 532164061

SHIELD,SIDE,O.LH
(Superseded to 532442869)

$

$

Not available

16

Electrolux/AYP 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 872040410

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532102701

GRIP CRT

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 532102156

STAKE DEPTH CRT
(Superseded to 532144437)

$21.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 874930632

BOLT.375-16

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 872140404

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532125410

NO LONGER AVAILABLE
(Superseded to 583641501)

$21.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532120588

PIN.HINGE.TILLER

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532403343

No Description Available

$

$

Not available

30

Electrolux/AYP 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
