LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2010-05) 52"/132CM CUTTING DECK Parts Diagram

52" Zero-Turn Mower

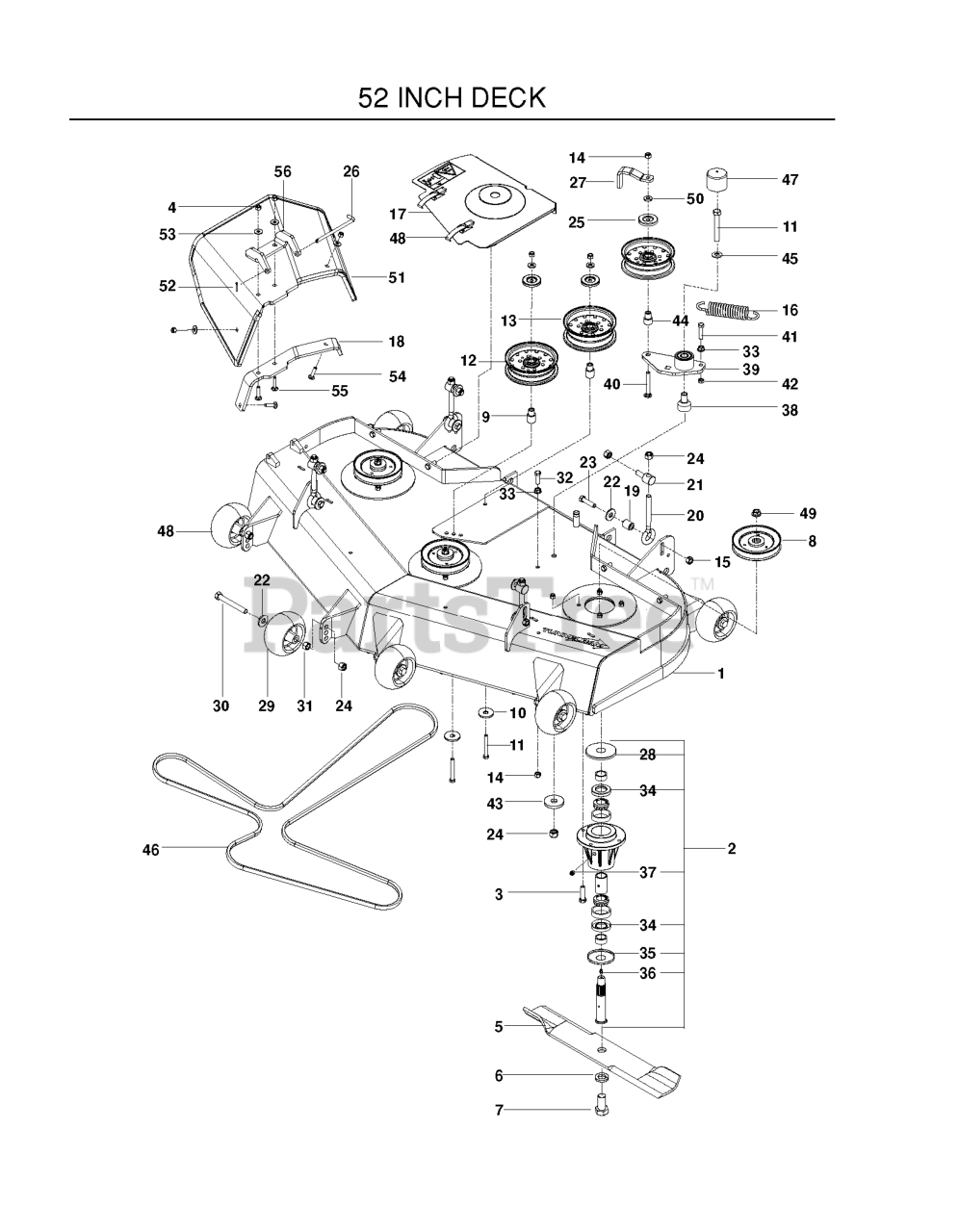

52"/132CM CUTTING DECK Parts Diagram

  • Title

48

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

25

Husqvarna 510254501

DUST SHIELD

$

$

Not available

44

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

9

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

22

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

19

Husqvarna 539114404

SPACER

$

$

Not available

3

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

1

Husqvarna 539111377

DECK W/DECALS 52" HUS

Note: w/ SAFETY DECALS

$

$

Not available

18

Husqvarna 539130925

BRACKET, REINF-CHUTE

$170.99

$

In Stock, only 1 left!

0

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

4

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539130779

CHUTE, RUBBER DISCHARGE 52/61"

$68.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539130690

SPRING

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539131383

HOUSING ASM, 52/61
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

54

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539109652

52" BELT SHIELD ASM - RH

$339.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

40

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

34

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

52

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 505256501

SWIVEL, DECK HEIGHT ADJ

$18.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539130923

PIVOT BRACKET - RUBBER CHUTE

$39.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 15

0

17

Husqvarna 539109653

52" BELT SHIELD ASM - LH

$303.99

$

Usually ships in 3-10 days

0

46

Husqvarna 522795901

BELT, DECK

$109.99

$

In Stock, Qty 20+

0

29

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

43

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

15

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539131813

PIN, CHUTE PIVOT

$

$

Not available

28

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 1 left!

0

36

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

55

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

49

Husqvarna 539130653

NUT FLANGE 3/4-16

$7.49

$

In Stock, only 1 left!

0

24

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539114982

GROMMET

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

13

Husqvarna 521966601

PULLEY - IDLER, 6IN WIDE

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

6

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

39

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

37

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

5

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available

8

Husqvarna 539112124

PULLEY, 52

$44.99

$

In Stock, Qty 7

0

41

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0
