LZ 5227 TXPKOA (968999309) - Husqvarna 52" Zero-Turn Mower (2007-04) Chassis / Frame (Part 2) Parts Diagram

52" Zero-Turn Mower

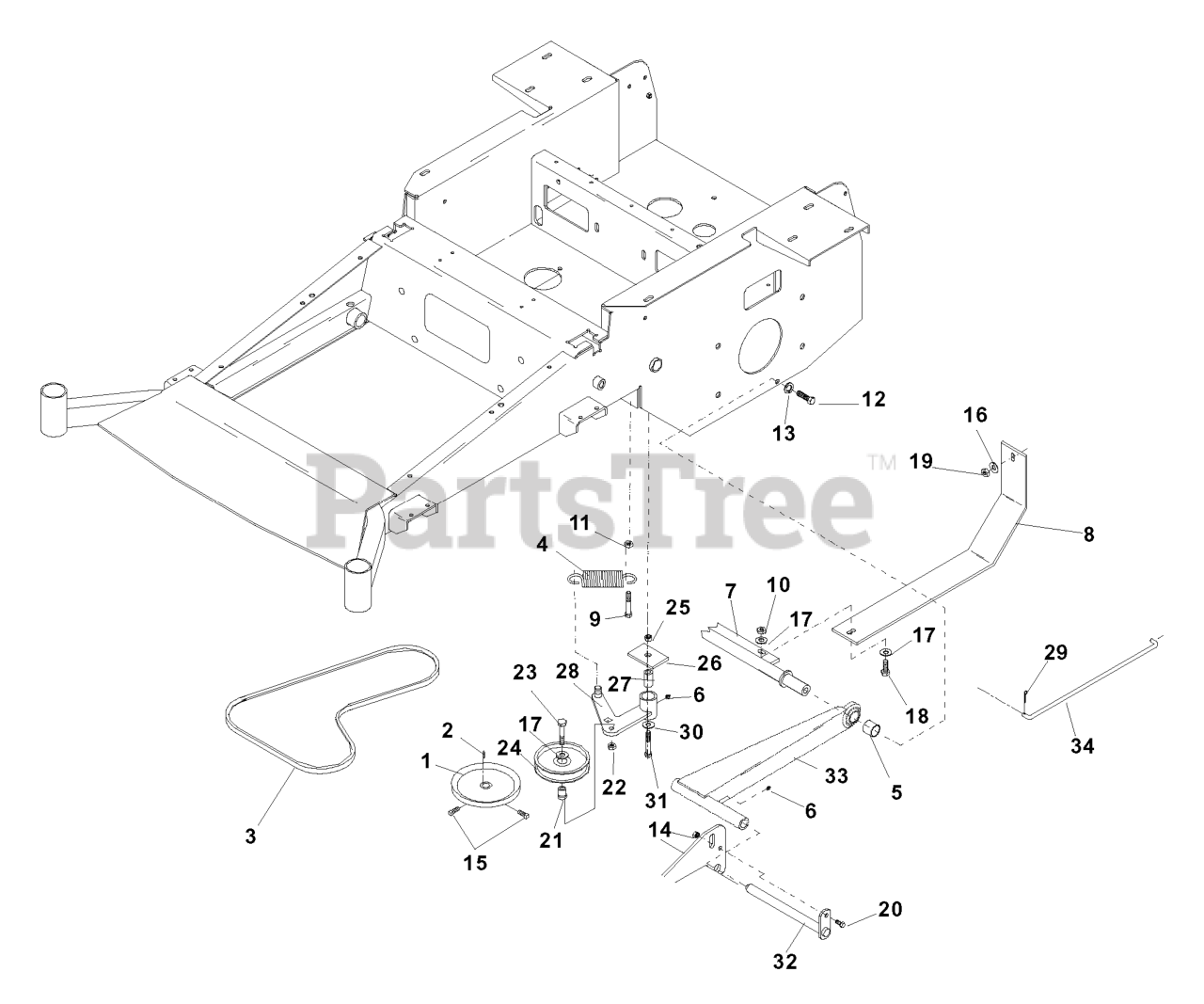

Chassis / Frame (Part 2) Parts Diagram

  • Title

1

Husqvarna 539101176

PULLEY

$

$

Not available

2

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$5.99

$

In Stock, only 2 left!

0

3

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$45.99

$

In Stock, Qty 20+

0

4

Husqvarna 539103256

SPRING

$13.99

$

In Stock, Qty 17

0

5

Husqvarna 539104521

SPACER, STRUT

$

$

Not available

6

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539104332

CROSS SHAFT WLDMT

$

$

Not available

8

Husqvarna 539112634

SKID PLATE

$

$

Not available

9

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 12

0

12

Husqvarna 539105905

HEX SCREW 7/16-14 X 1 GR8

$

$

Not available

13

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539110631

5/16 DIA ROLL PIN
(Superseded to 596917801)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

20

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

21

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

22

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.49

$

In Stock, Qty 9

0

24

Husqvarna 539976688

IDLER PULLEY
(Superseded to 596739801)

$37.99

$

In Stock, only 2 left!

0

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539102236

PAD

$

$

Not available

27

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

28

Husqvarna 539104388

IDLER ARM WLDT
(Superseded to 539130532)

$

$

Not available

29

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539990550

WASHER 1/2 FLAT
(Superseded to 595316401)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 13

0

32

Husqvarna 539102619

PIVOT PIN

$56.99

$

In Stock, only 1 left!

0

32

Husqvarna 539105480

PIN WELDMENT

$

$

Not available

33

Husqvarna 539104390

STRUT

$319.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539110746

STRUT 72"

$

$

Not available

34

Husqvarna 539104525

SEAT ROD

$

$

Not available

Husqvarna 539105974

RUBBER GROMMET

Note: NOT SHOWN

$

$

Not available
