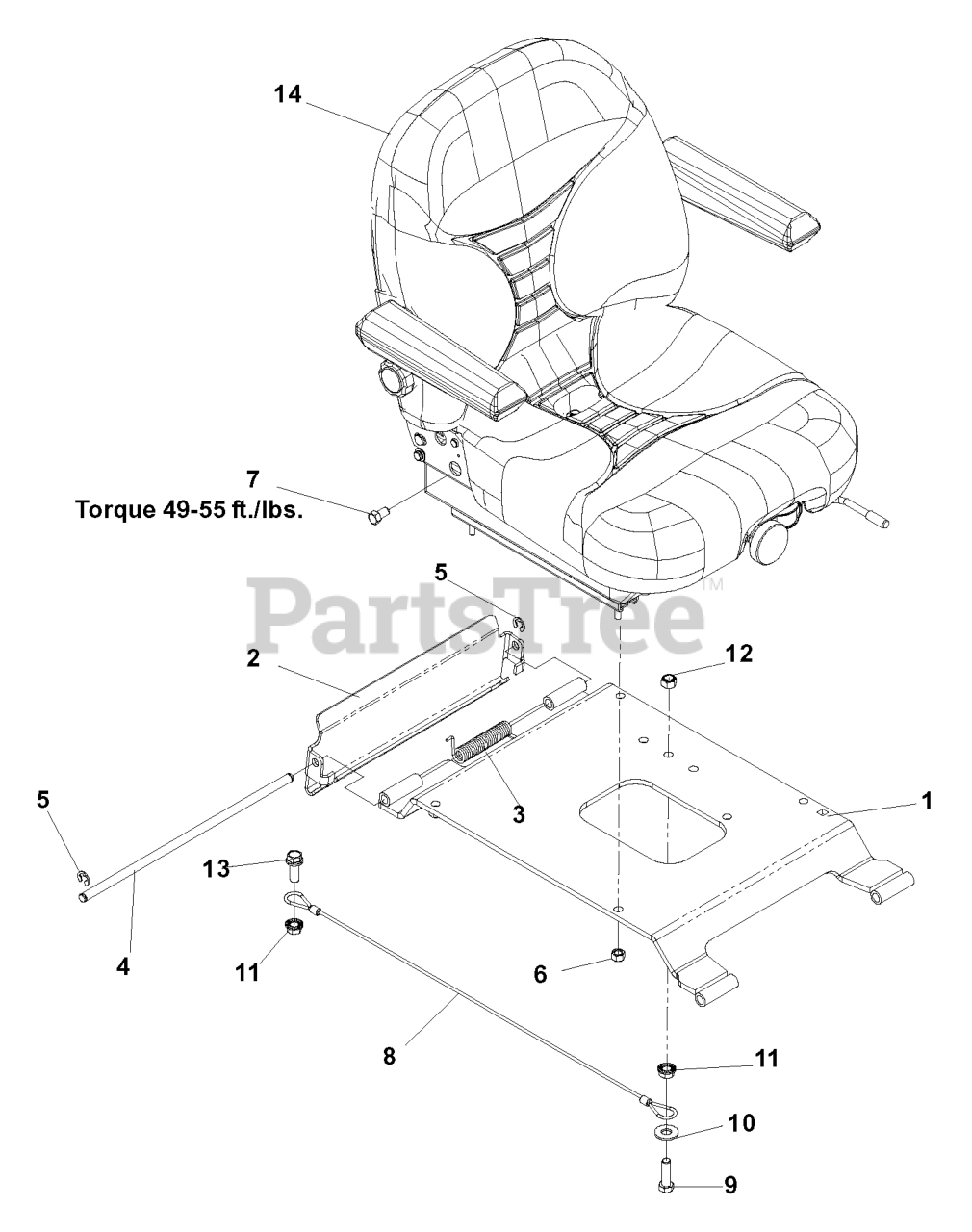

LZ 5227 TXPKOA (968999309) - Husqvarna 52" Zero-Turn Mower (2007-04) Seat Parts Diagram

52" Zero-Turn Mower

Seat Parts Diagram

  • Title

1

Husqvarna 539130367

SEAT PAN - BLACK

$

$

Not available

2

Husqvarna 539110644

SEAT LATCH BRACKET

$

$

Not available

3

Husqvarna 539110645

TORSION SPRING (SEAT)

$

$

Not available

4

Husqvarna 539110646

SEAT LATCH ROD

$

$

Not available

5

Husqvarna 539990870

E RING 3/8"

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539103247

SEAT LANYARD

$20.99

$

In Stock, only 1 left!

0

9

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 12

0

12

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 11

0

14

Husqvarna 539107859

SEAT, SUSPENSION
(Superseded to 539131986)

$

$

Not available

Husqvarna 539111026

SEAT BELT

Note: NOT SHOWN

$

$

Not available
