LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2013) Kohler CV730-3150 Blower Housing & Baffles Parts Diagram

54" Tank Zero-Turn Mower

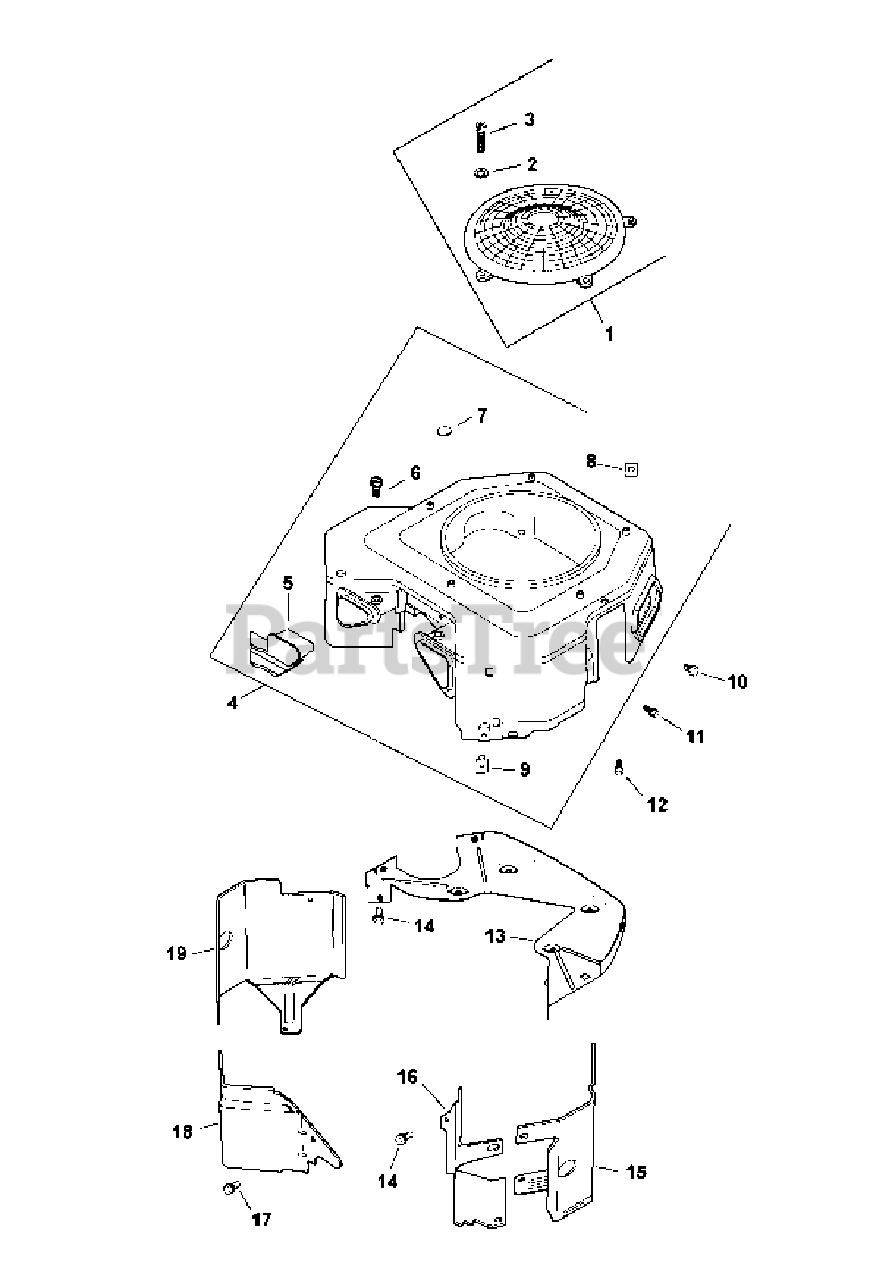

Kohler CV730-3150 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-81-S

Fixed Guard Kit

Note: (Inc. 2, 3, KH-24-113-18-3 & KH-24-332-01-S)

$52.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-24-468-10

Flat Washer, 7/32

$

$

Not available

3

Cub Cadet KH-24-086-35-S

Pan Screw, M5 x 0.8 x 10

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-027-197-S

Blower Housing Assembly Kit

Note: (Inc. 5-9 & KH-24-332-01-S)

$150.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-119-S

Blower Housing Cover
(Superseded to KH-24-096-161-S)

$2.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-086-91-S

Tap Screw, #8-18 x 1/2

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-139-16

Button Plug, 9/16

$

$

Not available

8

Cub Cadet KH-24-100-02-S

Plastic Nut

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-M-545016-S

Thread Forming Void Screw
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

11

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet KH-M-545020-S

Flange Screw, M5 x .8 X 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

13

Cub Cadet KH-24-146-59-S

Backing Plate

$15.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-063-88-S

Baffle

$28.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-063-94-S

Valley Baffle, #2

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-M-0545010

Flange Screw, M5 x .8 x 10

$

$

Not available

18

Cub Cadet KH-24-063-93-S

Valley Baffle, #1

$

$

Not available

19

Cub Cadet KH-24-063-85-S

Baffle

$17.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-154-11-S

Clip Repair

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-332-01-S

Threaded Insert

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: (Not Shown)

$8.49

$

In Stock, only 3 left!

0
