LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2013) Kohler CV730-3150 Ignition & Electrical Parts Diagram

54" Tank Zero-Turn Mower

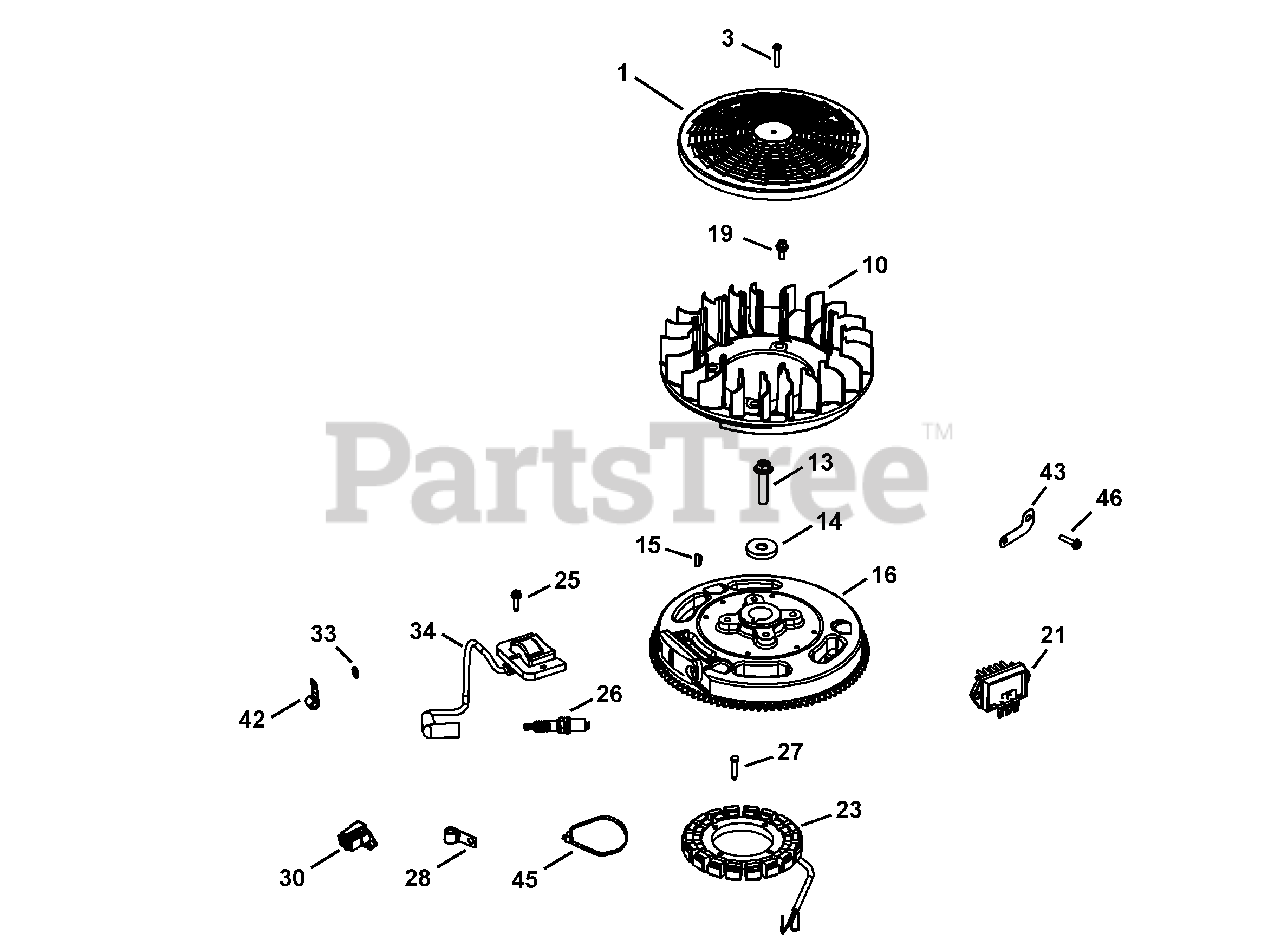

Kohler CV730-3150 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-162-44-S

Grass Screen

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-25-086-117-S

Flange Screw, M4 x .7 x 25

$3.49

$

In Stock, only 4 left!

0

10

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-12-086-14-S

Flange Screw, M10 x 1.5 x 45

$

$

Currently unavailable

14

Cub Cadet KH-12-468-03-S

Flat Washer, 13/32

$

$

Currently unavailable

15

Cub Cadet KH-X-42-15-S

Key, 3/16 x 5/8

$

$

Currently unavailable

16

Cub Cadet KH-24-025-59-S

Flywheel Assembly

$372.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-086-47-S

Shoulder Bolt

$

$

Currently unavailable

21

Cub Cadet KH-25-403-21-S

Rectifier Regulator
(Superseded to KH-25-403-39-S)

$96.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-237878-S

15/20 Amp Stator Kit

$

$

Currently unavailable

25

Cub Cadet KH-25-086-399-S

Thread Forming Screw
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

26

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-25-086-402-S

Thread Forming Screw

$2.99

$

In Stock, only 2 left!

0

28

Cub Cadet KH-235173-S

Cable Clip

$

$

Currently unavailable

30

Cub Cadet KH-25-155-06-S

Connector

$

$

Currently unavailable

33

Cub Cadet KH-X-25-63-S

Flat Washer, 1/4"

$

$

Currently unavailable

34

Cub Cadet KH-24-584-45-S

Ignition Module Kit
(Superseded to KH-24-584-201-S)

$116.99

$

Usually ships in 3-6 days

0

42

Cub Cadet KH-210281-S

Clip

$7.49

$

Usually ships in 2-5 days

0

43

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$5.99

$

In Stock, only 2 left!

0

45

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

46

Cub Cadet KH-25-086-157-S

Hi-Lo Hex Flange Screw

$2.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-176-150-S

Wiring Harness Assembly

Note: (not shown)

$59.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

Lead

Note: (not shown)

$8.49

$

Usually ships in 2-5 days

0
