LZ-54 KW (53YI2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2016) Spindle Assembly Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

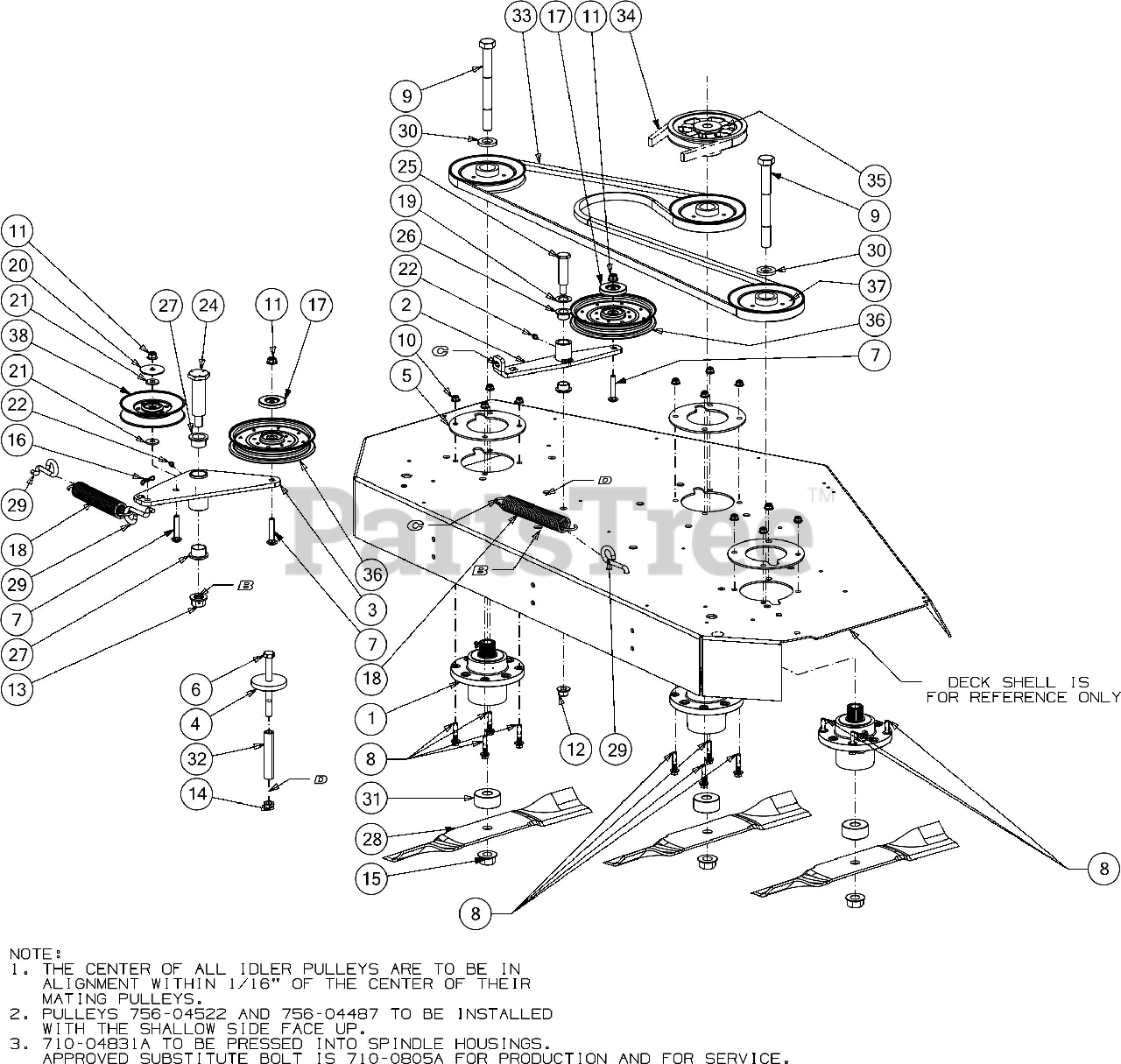

Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 918-05132

SPINDLE ASSEMBLY

$376.99

$

In Stock, only 2 left!

0

1

Cub Cadet 911-05758

SPINDLE SHAFT

Note: (Not Shown)

$76.99

$

In Stock, only 4 left!

0

1

Cub Cadet 921-0385

OIL SEAL

Note: (Not Shown)

$28.99

$

In Stock, Qty 11

0

1

Cub Cadet 736-04642

DUST WASHER

Note: (Not Shown)

$7.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 737-04373

FITTING ADAPTER

Note: (Not Shown)

$11.99

$

In Stock, only 2 left!

0

1

Cub Cadet 737-3001

45 DEGREE LUBE FITTING 1/4-28 TAPER

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 941-3050

BEARING CUP

Note: (Not Shown)

$25.99

$

In Stock, only 2 left!

0

1

Cub Cadet 941-3051

BEARING CONE

Note: (Not Shown)

$51.99

$

In Stock, only 2 left!

0

1

Cub Cadet 750-05695

SEAL RING

Note: (Not Shown)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00167A-0637

IDLER BRACKET
(Superseded to 680E00167A)

$79.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00319-0637

PTO IDLER ASSEMBLY
(Superseded to 680E00319)

$124.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08855-0637

SPACER PLATE
(Superseded to 703E08855)

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09434-0637

SPINDLE TOP SUPPORT PLATE

$24.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0382

BOLT-HEX 1/2-13X5.0 GR5

$12.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$9.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-04831A

BOLT 5/16-18 x 1.50 GR5

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05387

SCREW 3/4-16 x 7.00 GR5

$15.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04327

NUT

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet 721-04516

PULLEY CAP

$15.99

$

In Stock, Qty 6

0

18

Cub Cadet 732-04911

EXTENSION SPRING

$16.99

$

In Stock, Qty 8

0

19

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

20

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.99

$

In Stock, Qty 16

0

21

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 937-0146

GREASE FITTING

$5.99

$

In Stock, only 2 left!

0

24

Cub Cadet 738-05030

SHOULDER SCREW 1.0 x 3.15

$28.99

$

In Stock, only 1 left!

0

25

Cub Cadet 938-3110

SHOULDER SCREW

$35.99

$

In Stock, only 4 left!

0

26

Cub Cadet 741-0338

FLANGE BEARING

$9.99

$

In Stock, Qty 20+

0

27

Cub Cadet 741-04552

BUSHING

$9.99

$

In Stock, Qty 10

0

28

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$30.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747-05658

ROD HOOK

$8.99

$

In Stock, only 2 left!

0

30

Cub Cadet 750-05553

SPACER .812 ID x .218 LG

$10.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-05617

SPACER

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-3213

SPACER

$16.99

$

In Stock, only 2 left!

0

33

Cub Cadet 954-04327

BELT-B SECTION x 119.45

$127.99

$

In Stock, only 2 left!

0

34

Cub Cadet 954-04328

BELT-B SECTION x 99.1

$134.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-04485

PULLEY-6.96 OD x .750 ID
(Superseded to 756-04485A)

$169.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-04487

IDLER PULLEY

$70.99

$

In Stock, only 2 left!

0

37

Cub Cadet 756-04500

SPINDLE PULLEY 6"

$36.99

$

In Stock, only 2 left!

0

38

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$42.99

$

Usually ships in 3-6 days

0
