LZ 6130 C (968999752) - Husqvarna 61" Zero-Turn Mower (2008-01) SEAT Parts Diagram

61" Zero-Turn Mower

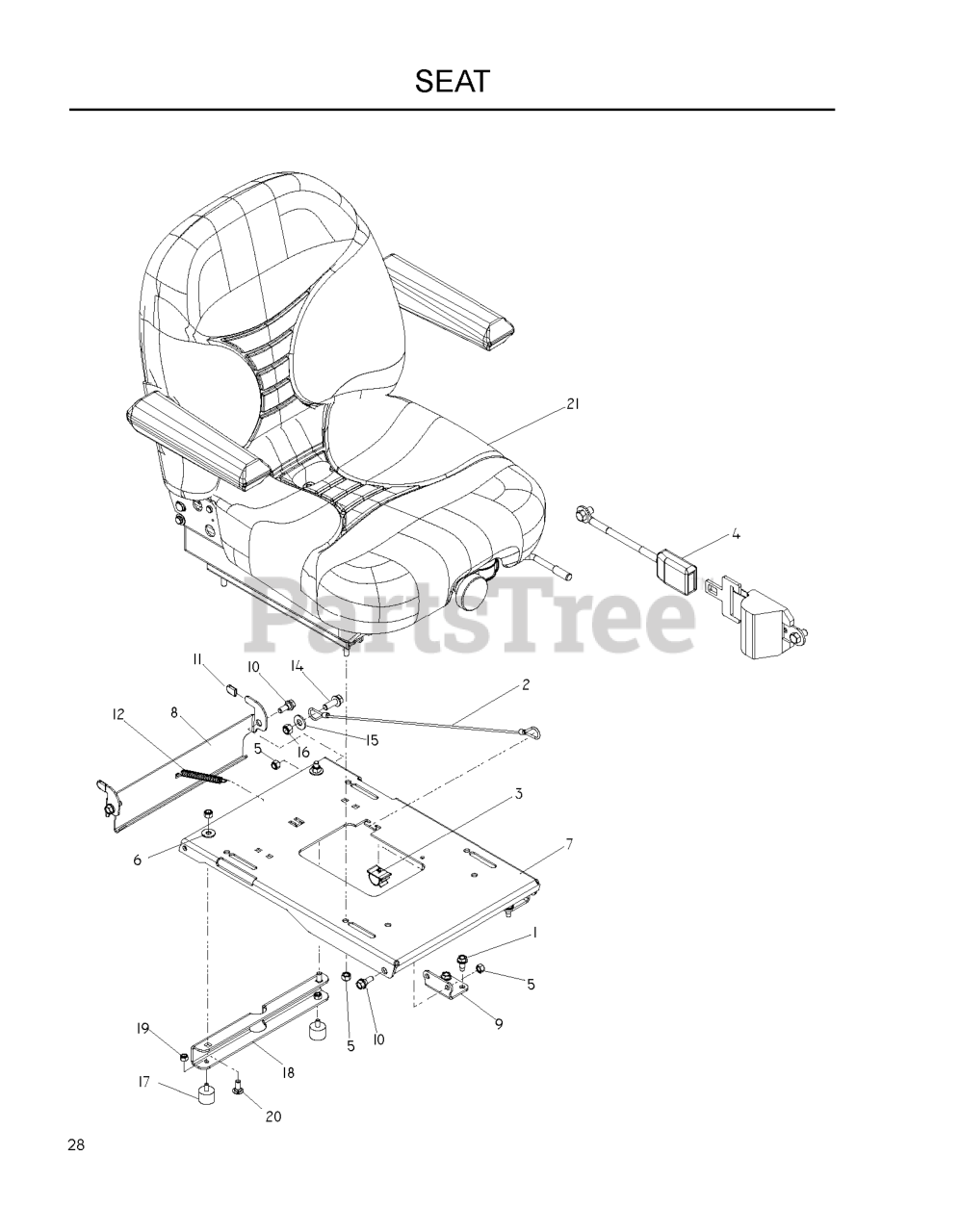

SEAT Parts Diagram

  • Title

16

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539132332

STANDOFF, SEAT PAN

$

$

Not available

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539103247

SEAT LANYARD

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$

$

Not available

21

Husqvarna 539132203

SEAT - SUSP, NC SWITCH

Note: for Serial No. 074439861 and after

$

$

Not available

7

Husqvarna 539130785

PAN, SEAT - BLACK

$

$

Not available

6

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539130789

PIVOT, SEAT PAN

$

$

Not available

12

Husqvarna 539977250

SPRING

$

$

Not available

3

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$143.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539130874

SEAT for units produced before Serial No. 074439861

Note: for units produced before Serial No. 074439861

$

$

Not available

13

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 17

0

20

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 11

0

17

Husqvarna 539105039

STUD/PLATE MOUNT

$

$

Not available

11

Husqvarna 539130898

GRIP, VINYL, .09 X .495 X.75

$

$

Not available

15

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 539130787

LATCH, SEAT - BLACK

$

$

Not available

14

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 9

0
