LZ22KC52 - Exmark 52" Lazer Z Zero-Turn Mower, 22hp Kohler (SN: 115000 - 129999) (1996) Blower Housing & Baffles - Pg. 32 2 Parts Diagram

52" Lazer Z Zero-Turn Mower, 22hp Kohler

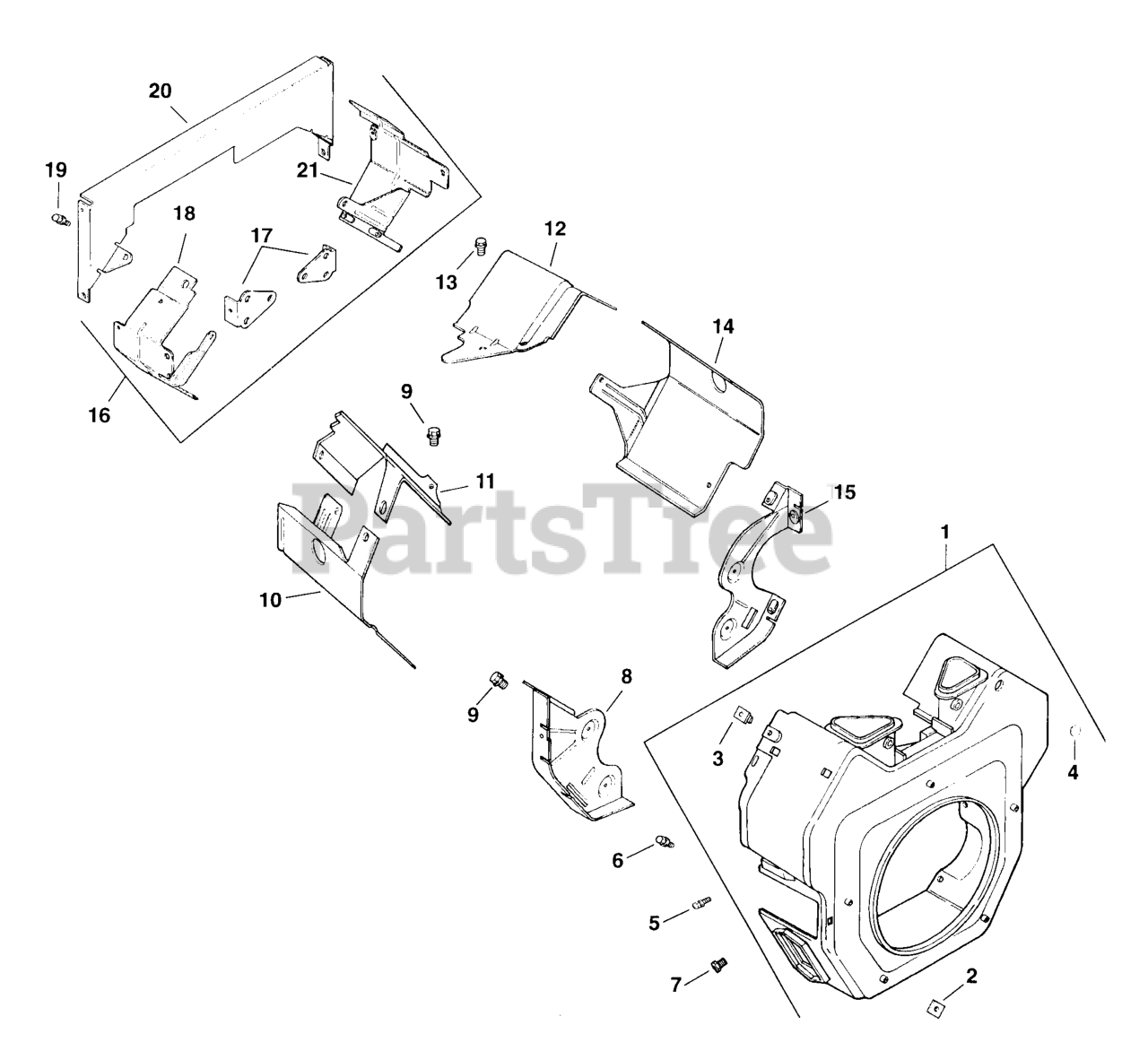

Blower Housing & Baffles - Pg. 32 2 Parts Diagram

  • Title
2

Exmark 2410001-S

Nut, Plastic

$

$

Currently unavailable

3

Exmark 2410002-S

Nut, Plastic

$

$

Currently unavailable

4

Exmark 2513916-S

Plug, Button 9/16"

$

$

Currently unavailable

5

Exmark M-0545016

Screw, Hex. Flange M5x0.8x16

$

$

Currently unavailable

6

Exmark M-0545020

Screw, Hex. Flange M5x0.8x20

$

$

Currently unavailable

7

Exmark M-0551016

Screw, Hex. Flange M5x0.8x16

$

$

Currently unavailable

8

Exmark 2414602

Plate, Backing - #2 Side

$

$

Currently unavailable

9

Exmark M-0645016

Screw, Hex. Flange M6x1.0x16

$

$

Currently unavailable

10

Exmark 2406320-S

Baffle, Cylinder Barrel - #2 Side

$

$

Currently unavailable

11

Exmark 2406317-S

Baffle, Valley - #2 Side

$

$

Currently unavailable

12

Exmark 2406324-S

Baffle, Valley - #1 Side

$

$

Currently unavailable

13

Exmark M-0545010

Screw, Hex. Flange M5x0.8x10

$

$

Currently unavailable

14

Exmark 2406321

Baffle, Cylinder Barrel - #1 Side

Note: Replaced by 24 063 30-S

$

$

Currently unavailable

15

Exmark 2414608

Plate, Backing - #1 Side

$

$

Currently unavailable
