LZ22KC523 - Exmark 52" Lazer Z Zero-Turn Mower, 22hp Kohler (SN: 190000 - 219999) (1999) Kohler Air-Cooled Fuel Group Parts Diagram

52" Lazer Z Zero-Turn Mower, 22hp Kohler

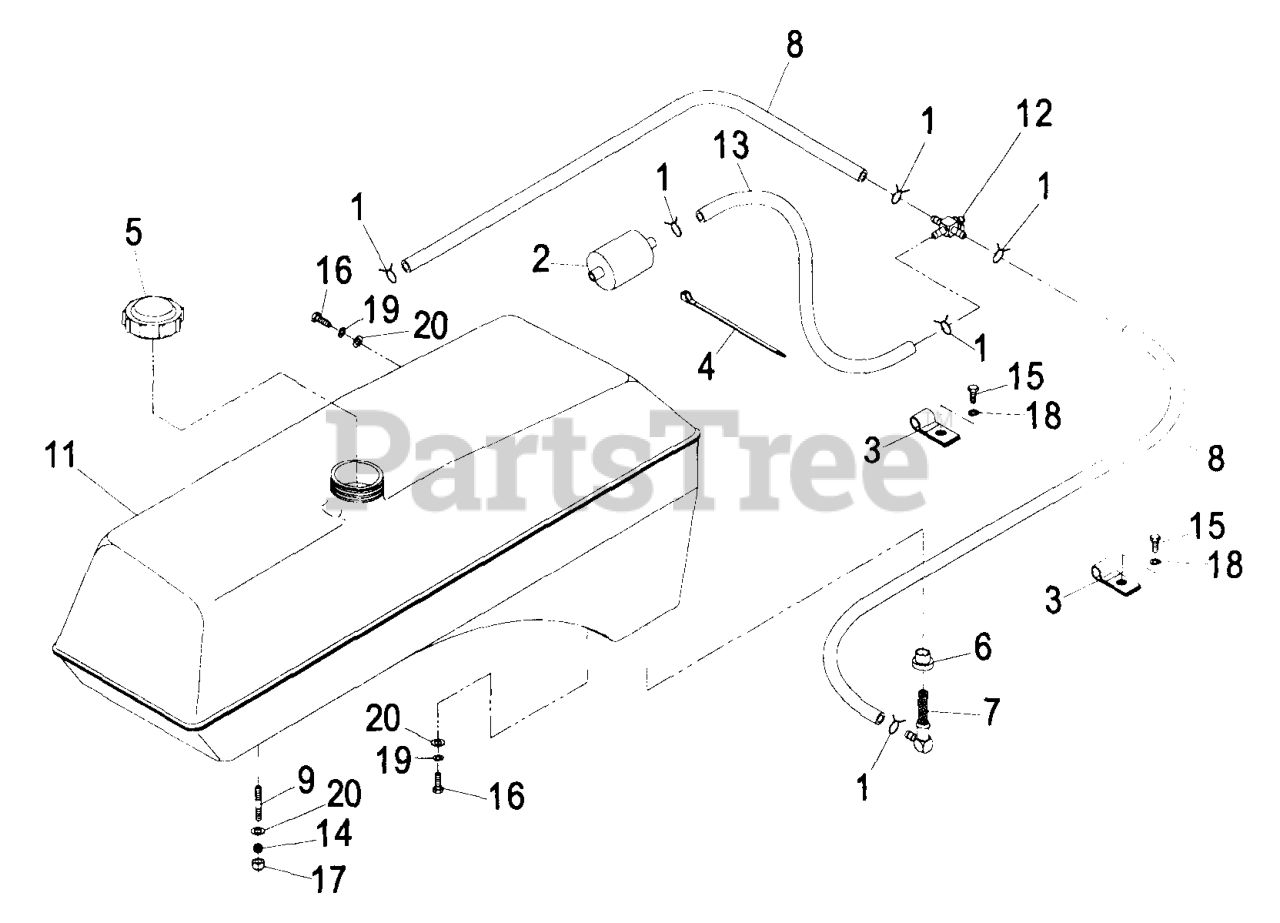

Kohler Air-Cooled Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Fuel Filter

Note: (Kohler Part No. 2405002) (Refer to Engine Owner's Manual - Fuel Filter Must be 15 Micron or smaller.)

$

$

Not available

3

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

4

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

5

Exmark 1-513508

CAP-FUEL

$26.99

$

In Stock, Qty 20+

0

6

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Exmark 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 20+

0

8

Exmark 1-543456

HOSE-FUEL

$12.99

$

In Stock, Qty 7

0

9

Exmark 1-633023

STUD

Note: (Use Prolock, Retaining type [Part No. 840023], .5cc tube on stud threads going into the tank.)

$6.49

$

In Stock, only 3 left!

0

10

Exmark 1-633967

103-2132
(Superseded to 103-2132)

Note: (Not Illustrated)

$

$

Not available

11

Exmark 1-633968

DISCONTINUED
(Superseded to 103-2133)

$

$

Not available

12

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, Qty 12

0

13

Exmark 1-633348

109-0307
(Superseded to 109-0307)

$20.99

$

In Stock, only 2 left!

0

14

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 10

0

15

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 15

0

16

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$18.99

$

In Stock, only 1 left!

0
