LZ22KC60 - Exmark 60" Lazer Z Zero-Turn Mower, 22hp Kohler (SN: 102000 - 114999) (1995) Park Brake Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 22hp Kohler

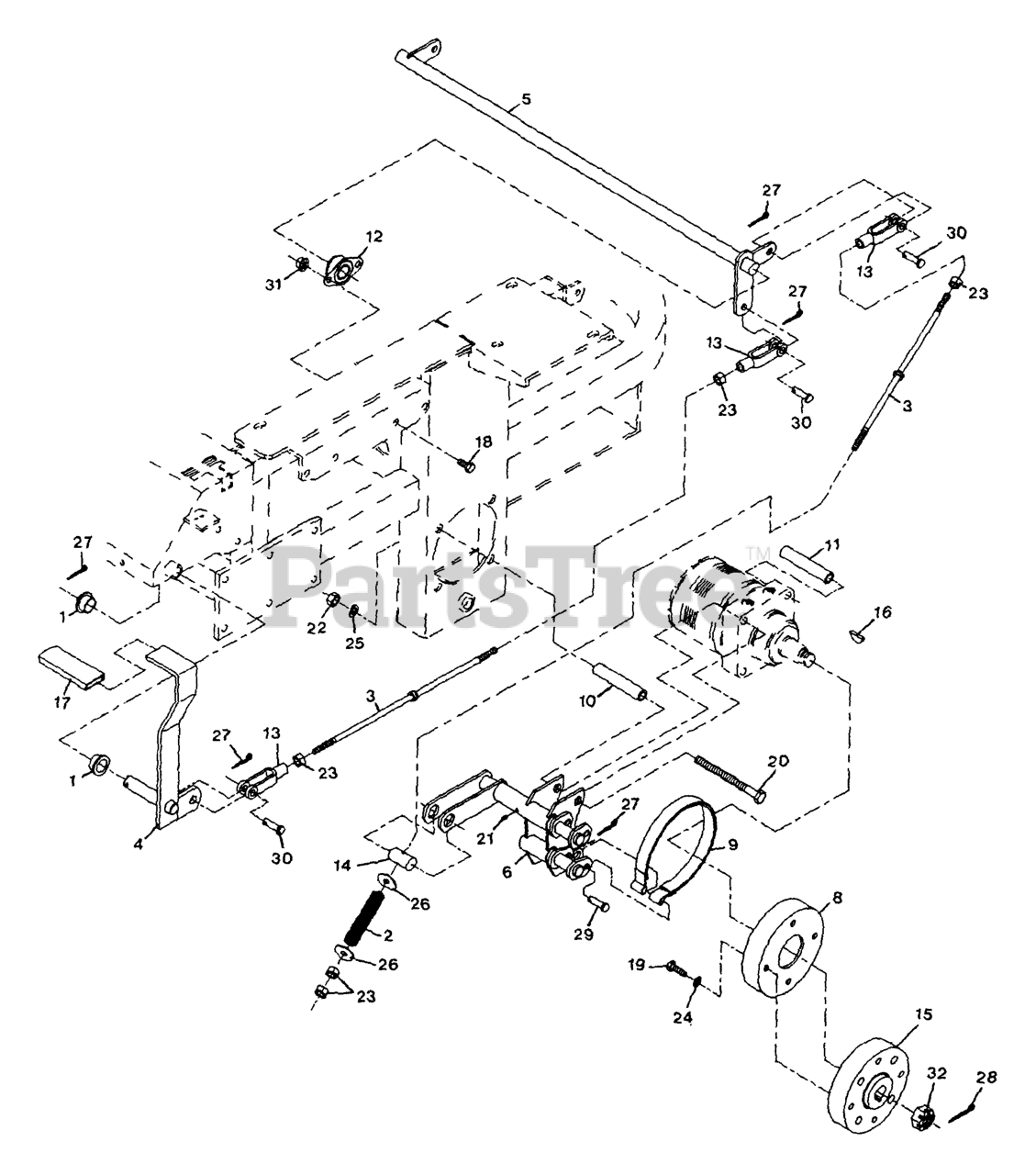

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-513140

BEARING-CONTROL

$6.99

$

In Stock, Qty 6

0

2

Exmark 1-543132

SPRING,COMPRESSION

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$

$

Not available

2

Exmark 1-633454

SPRING-BRAKE

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$11.99

$

In Stock, Qty 15

0

3

Exmark 1-632189

1-633477
(Superseded to 1-633477)

$21.99

$

In Stock, only 1 left!

0

4

Exmark 1-632210-03

DISCONTINUED

$

$

Not available

5

Exmark 1-632217-03

SHAFT-BRAKE

$189.99

$

Usually ships in 3-6 days

0

6

Exmark 1-632230

1-631763
(Superseded to 1-631763)

$

$

Not available

7

Exmark 1-632232

Bracket, Brake (Rh)
(Superseded to 1-631762)

Note: Not Illustrated

$497.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633057

1-641337
(Superseded to 1-641337)

$289.99

$

Usually ships in 3-6 days

0

9

Exmark 1-633058

DISCONTINUED

$

$

Not available

10

Exmark 1-633060

SPACER-WHEEL, SHORT

$15.99

$

In Stock, only 2 left!

0

11

Exmark 1-633062

109-5012
(Superseded to 109-5012)

$30.99

$

In Stock, only 2 left!

0

12

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

13

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 1-633149

1-641337
(Superseded to 1-641337)

Note: Use anti-sieze on hub bore.

$289.99

$

Usually ships in 3-6 days

0

16

Exmark 1-807020

3257-42
(Superseded to 3257-42)

$6.99

$

In Stock, Qty 14

0

17

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 7

0

18

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

19

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 20+

0

21

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-804525

3219-3
(Superseded to 3219-3)

$1.99

$

In Stock, Qty 13

0

24

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 5

0

25

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 11

0

26

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

27

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

28

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 11

0

29

Exmark 1-808283

PIN,CLEVIS 3/8X2

$

$

Not available

30

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-809036

NUT-HH

$39.99

$

In Stock, only 2 left!

0

33

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 5

0
