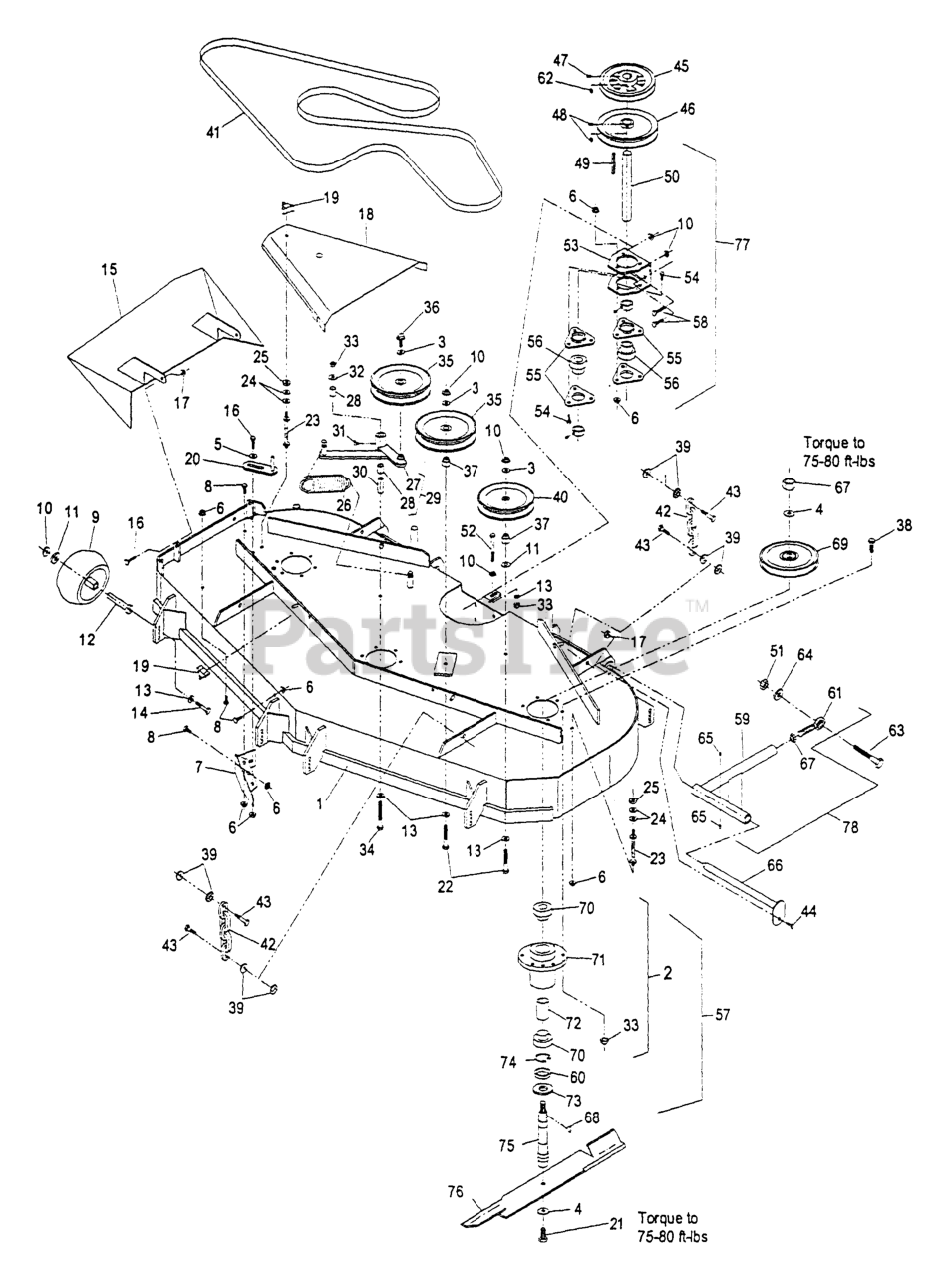

Exmark LZ23KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 23hp Kohler (SN: 220000 - 259999) (2000) 60" Deck Group Parts Lookup with Diagrams

1

Exmark 1-632958

103-0702

(Superseded to 103-0702) 

$5089.99

$

Usually ships in 3-6 days

Exmark 1-634983

103-0702

(Superseded to 103-0702) 

$5089.99

$

Usually ships in 3-6 days

2

Exmark 1-634619

103-8280

(Superseded to 103-8280) 

$282.99

$

In Stock, Qty 12

3

Exmark 1-805259

3256-24

(Superseded to 3256-24) 

$0.99

$

In Stock, Qty 20+

4

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

6

Exmark 1-809001

32128-20

(Superseded to 32128-20) 

$1.49

$

In Stock, Qty 20+

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

8

Exmark 1-800270

322-2

(Superseded to 322-2) 

$2.99

$

In Stock, Qty 20+

9

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

10

Exmark 1-809007

3290-357

(Superseded to 3290-357) 

$0.99

$

In Stock, Qty 20+

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

12

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

13

Exmark 1-303327

98-5975

(Superseded to 98-5975) 

$3.99

$

In Stock, Qty 20+

14

Exmark 1-800807

98-5961

(Superseded to 98-5961) 

$5.49

$

In Stock, Qty 20+

15

Exmark 1-632939-01

103-5830-01

(Superseded to 103-5830-01) 

$177.99

$

Usually ships in 3-6 days

16

Exmark 1-800273

322-5

(Superseded to 322-5) 

$0.99

$

In Stock, Qty 20+

17

Exmark 1-804256

3296-29

(Superseded to 3296-29) 

$2.49

$

In Stock, Qty 20+

18

Exmark 1-633084-01

SHIELD,BELT

$113.99

$

In Stock, only 4 left!

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

20

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

21

Exmark 1-800848

103-1026

(Superseded to 103-1026) 

Note: Torque to 75-80 ft-lbs

$5.49

$

In Stock, Qty 20+

22

Exmark 1-800297

323-11

(Superseded to 323-11) 

$2.49

$

In Stock, Qty 20+

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

24

Exmark 1-805258

3256-3

(Superseded to 3256-3) 

$0.99

$

In Stock, Qty 20+

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

26

Exmark 1-633151

116-6317

(Superseded to 116-6317) 

$29.99

$

In Stock, Qty 20+

27

Exmark 1-632119

103-5693

(Superseded to 103-5693) 

$162.99

$

In Stock, Qty 8

28

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

29

Exmark 1-634244

103-5693

(Superseded to 103-5693) 

$162.99

$

In Stock, Qty 8

30

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

31

Exmark 1-811008

302-40

(Superseded to 302-40) 

$3.49

$

In Stock, Qty 19

32

Exmark 1-805260

3256-4

(Superseded to 3256-4) 

$1.99

$

In Stock, Qty 20+

33

Exmark 1-804257

3296-39

(Superseded to 3296-39) 

$2.99

$

In Stock, Qty 20+

34

Exmark 1-800299

323-13

(Superseded to 323-13) 

$3.99

$

In Stock, Qty 20+

35

Exmark 1-633109

126-7685

(Superseded to 126-7685) 

$66.99

$

In Stock, Qty 20+

36

Exmark 1-803016

3234-11

(Superseded to 3234-11) 

$4.49

$

In Stock, Qty 20+

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

38

Exmark 1-800293

323-7

(Superseded to 323-7) 

$3.49

$

In Stock, Qty 20+

39

Exmark 1-809073

32128-37

(Superseded to 32128-37) 

$4.99

$

In Stock, Qty 20+

40

Exmark 1-603805

PULLEY-IDLER

$58.99

$

In Stock, Qty 20+

41

Exmark 1-633127

BELT,BLADE DRIVE

(Superseded to 1-633127-SL) 

$133.99

$

In Stock, Qty 20+

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

43

Exmark 1-800811

SCREW-CAP, HH

$12.99

$

In Stock, only 3 left!

44

Exmark 1-800271

322-3

(Superseded to 322-3) 

$0.99

$

In Stock, Qty 20+

45

Exmark 1-303498

SHEAVE,BLADE DRIVE

Note: Use antiseize on bore of sheaves and bearings; For all 23 & 25 hp Kohler units and 22 hp Kawasaki units.

$155.99

$

In Stock, only 3 left!

Exmark 1-643292

SHEAVE-SPLIT

Note: Use antiseize on bore of sheaves and bearings; For all 26 hp Kohler EFI units and 23 hp Kawasaki units.

$110.99

$

In Stock, only 3 left!

46

Exmark 1-633010

SHEAVE,SPLIT STEEL

Note: Use antiseize on bore of sheaves and bearings; For all 23 & 25 hp Kohler units and 22 hp Kawasaki units.

$86.99

$

In Stock, only 2 left!

Exmark 1-643292

SHEAVE-SPLIT

Note: Use antiseize on bore of sheaves and bearings; For all 26 hp Kohler EFI units and 23 hp Kawasaki units.

$110.99

$

In Stock, only 3 left!

47

Exmark 1-803046

30-1710

(Superseded to 30-1710) 

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews. Exmark red touch up spray paint - P/N 850337

$12.99

$

In Stock, Qty 11

48

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews. Exmark red touch up spray paint - P/N 850337

$2.99

$

In Stock, Qty 15

49

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, only 4 left!

50

Exmark 1-633012

JACKSHAFT,DECK DRIVE

$83.99

$

In Stock, only 2 left!

51

Exmark 1-804522

3217-11

(Superseded to 3217-11) 

$3.99

$

In Stock, Qty 20+

52

Exmark 1-800304

323-20

(Superseded to 323-20) 

$3.99

$

In Stock, Qty 11

53

Exmark 1-633014-01

BRACKET,JACKSHAFT

$57.99

$

In Stock, only 2 left!

54

Exmark 1-807503

3230-1

(Superseded to 3230-1) 

$1.99

$

In Stock, Qty 20+

55

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

56

Exmark 1-513012

BEARING,W/COLLAR

$128.99

$

In Stock, Qty 9

57

Exmark 1-634972

SPINDLE HSG.ASSY.COMP.

Note: Cutter housing complete includes sheave, washer, and nut.

$457.99

$

In Stock, only 2 left!

58

Exmark 1-807507

3231-22

(Superseded to 3231-22) 

$3.99

$

In Stock, Qty 20+

59

Exmark 1-632690-01

109-1181

(Superseded to 109-1181) 

$120.99

$

In Stock, Qty 20+

60

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 8

61

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, Qty 20+

62

Exmark 1-803050

SCREW-SET

Note: Use Pro-lock Nut Type (P/N 840022 .5 ml. tube) on setscrews. Exmark red touch up spray paint - P/N 850337

$2.99

$

In Stock, Qty 9

63

Exmark 1-800343

327-11

(Superseded to 327-11) 

$13.99

$

In Stock, Qty 12

64

Exmark 1-805010

3253-8

(Superseded to 3253-8) 

$0.99

$

In Stock, Qty 20+

65

Exmark 1-811006

302-19

(Superseded to 302-19) 

$2.99

$

In Stock, Qty 20+

66

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 18

67

Exmark 1-804510

3219-6

(Superseded to 3219-6) 

Note: Torque to 75-80 ft-lbs

$4.49

$

In Stock, Qty 20+

68

Exmark 1-807006

3257-32

(Superseded to 3257-32) 

$2.99

$

In Stock, Qty 20+

69

Exmark 1-633701

SHEAVE,BLADE DRIVE

Note: Use antiseize on bore of sheaves and bearings.

$86.99

$

Usually ships in 3-6 days

70

Exmark 1-513016

BEARING

Note: Use antiseize on bore of sheaves and bearings.

$86.99

$

In Stock, Qty 20+

71

Exmark 1-323532

103-8280

(Superseded to 103-8280) 

$282.99

$

In Stock, Qty 12

72

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 10

73

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

74

Exmark 1-808502

32120-8

(Superseded to 32120-8) 

$2.99

$

In Stock, Qty 20+

75

Exmark 1-633942

SHAFT,SPINDLE 604

$99.99

$

In Stock, only 2 left!

76

Exmark 1-633483

103-2530-S

(Superseded to 103-2530-S) 

$36.99

$

In Stock, Qty 20+

Exmark 1-613250

103-1580-S

(Superseded to 103-1580-S) 

$38.99

$

In Stock, Qty 14

Exmark 1-613111

103-2510-S

(Superseded to 103-2510-S) 

$41.99

$

In Stock, Qty 11

Exmark 1-613112

Blade, Mulching

(Superseded to 103-0301-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604

$40.99

$

In Stock, Qty 14

77

Exmark 1-634546

DK DR. BRG. ASSY

$570.99

$

In Stock, only 1 left!

78

Exmark 1-634726

103-1081

(Superseded to 103-1081) 

Note: Strut subassemblies have the same components, they are assembled to different lengths from center to center. 15.31". For all 23 & 25 hp Kohler units and 22 hp Kawasaki units.

$292.99

$

In Stock, only 2 left!

Exmark 1-634772

103-1106

(Superseded to 103-1106) 

Note: Strut subassemblies have the same components, they are assembled to different lengths from center to center. 15.00". For all 26 hp Kohler EFI units and 23 hp Kawasaki units.

$

Not available 
