LZ23KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 23hp Kohler (SN: 440000 - 509999) (2004) Engine Deck Group (Cont.) Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 23hp Kohler

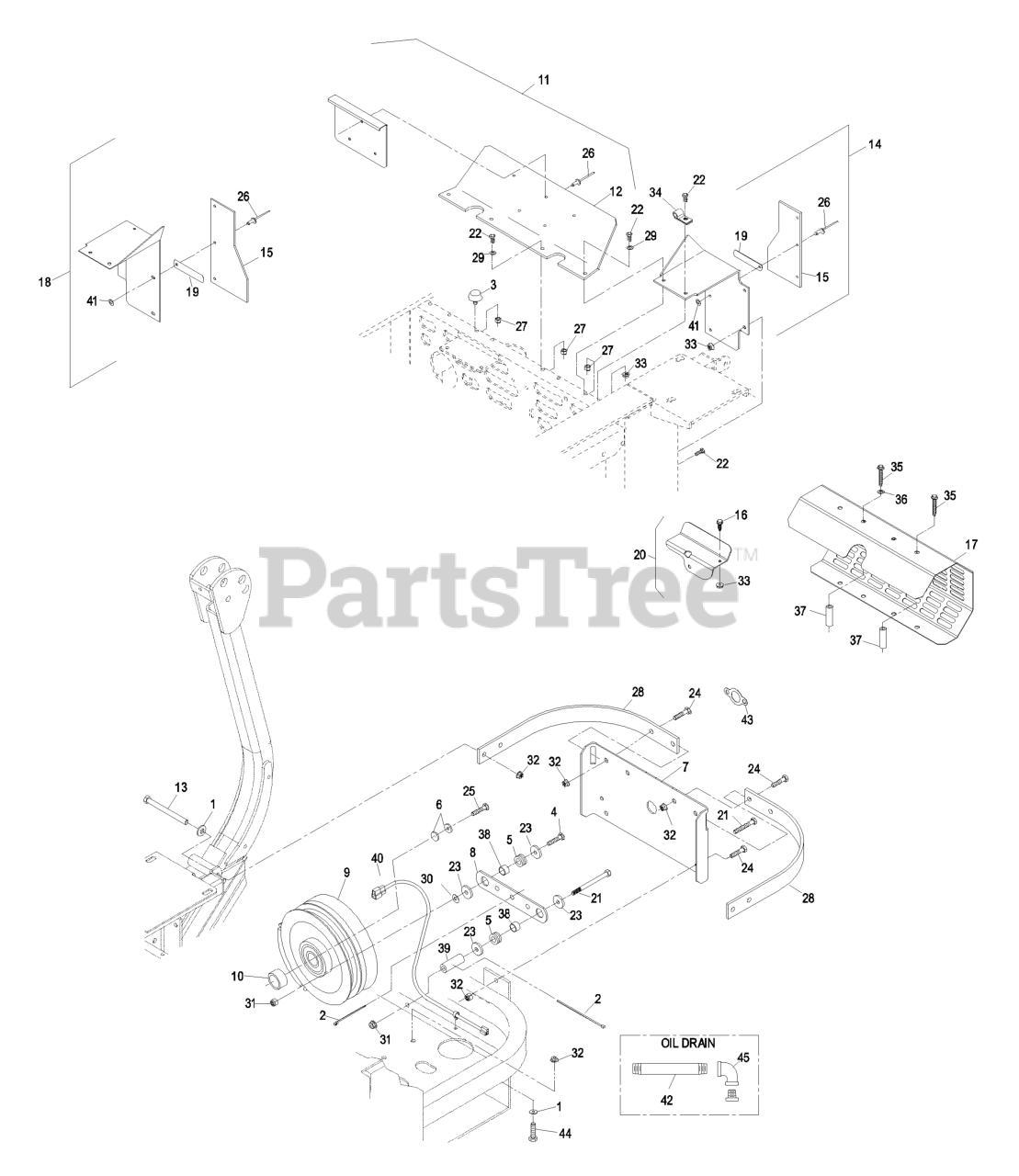

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

3

Exmark 1-523420

109-2365

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 11

0

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-633615-03

GUARD-CLUTCH

$96.99

$

In Stock, only 1 left!

0

8

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 1 left!

0

9

Exmark 103-3245

KIT-CLUTCH

Note: Includes clutch and jumper harness kit item #40.

$603.99

$

Usually ships in 3-6 days

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$162.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633453

SPACER-CLUTCH

$20.99

$

In Stock, only 1 left!

0

11

Exmark 103-3340

1-644276
(Superseded to 1-644276)

$124.99

$

In Stock, only 1 left!

0

12

Exmark 103-1308

SHIELD-ENGINE

$36.99

$

In Stock, Qty 8

0

13

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

14

Exmark 1-634796

DISCONTINUED

$

$

Not available

15

Exmark 1-633301

SHIELD-ENGINE

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-643313-03

GUARD-MUFFLER

$120.99

$

In Stock, Qty 5

0

18

Exmark 1-644316

RH SHIELD ASM

$

$

Not available

19

Exmark 1-523285

CLIP-BAFFLE, REAR

$

$

Not available

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

Note: Standard with Kohler units except 20 HP, available as a kit to fit 20 HP.

$113.99

$

Usually ships in 3-6 days

0

21

Exmark 322-19

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.99

$

In Stock, Qty 20+

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-643264-03

DISCONTINUED

$

$

Not available

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 1-809076

SCREW

$2.99

$

In Stock, Qty 13

0

36

Exmark 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

37

Exmark 1-323236

SPACER

$8.49

$

In Stock, Qty 13

0

38

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$13.99

$

In Stock, only 2 left!

0

40

Exmark 103-3247

KIT,CLUTCH JUMPER HARNESS

Note: Includes jumper harness, clip and 2 plastic ties item #2.

$49.99

$

In Stock, Qty 5

0

41

Exmark 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

42

Exmark 1-543232

NIPPLE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$22.99

$

Usually ships in 3-6 days

0

43

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

44

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 1-303428

ELBOW-90 DEG

$

$

Not available
