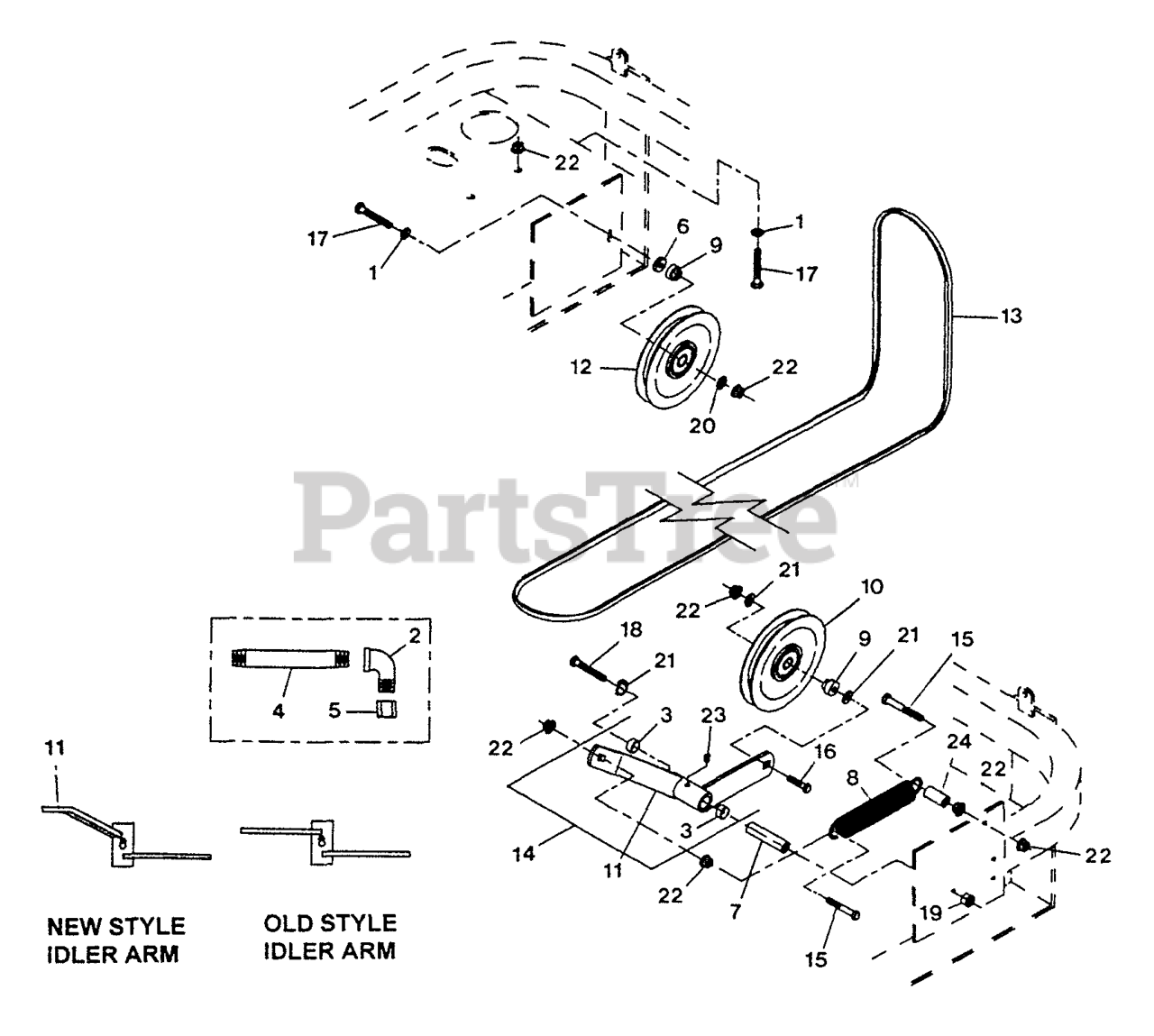

LZ25KC60 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 115000 - 129999) (1996) Engine Deck Group (Cont.) Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

Engine Deck Group (Cont.) Parts Diagram

  • Title
1

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

2

Exmark 1-403124

ELBOW-90 DEG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$26.99

$

Usually ships in 3-6 days

0

3

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

4

Exmark 1-543232

NIPPLE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 1-543233

CAP-HEX

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$17.99

$

Usually ships in 3-6 days

0

6

$7.99

$

In Stock, Qty 12

0

7

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

8

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

9

Exmark 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$56.99

$

In Stock, Qty 20+

0

11

Exmark 1-632468

1-632469
(Superseded to 1-632469)

Note: Check current idler arm. If there is no offset in one of the arms, as shown, it is an old style arm. Part No. 631470 (Kit-Mule Drive Idler) must be ordered to replace the old style idler arm. The new idler arm stops idler pulley from rubbing on spring.

$113.99

$

In Stock, Qty 5

0

12

Exmark 1-633166

PULLEY-IDLER

$59.99

$

In Stock, Qty 20+

0

13

Exmark 1-633173

BELT,MULE DRIVE
(Superseded to 1-633173-SL)

$102.99

$

In Stock, Qty 20+

0

14

Exmark 1-634272

1-631470
(Superseded to 1-631470)

$148.99

$

Usually ships in 3-6 days

0

15

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

19

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

20

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

24

$6.99

$

In Stock, Qty 20+

0

Exmark 1-631470

KIT - MULE DRIVE IDR

$148.99

$

Usually ships in 3-6 days

0
