LZ25KC603 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 130000 - 149999) (1997) Motion Control Levers Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

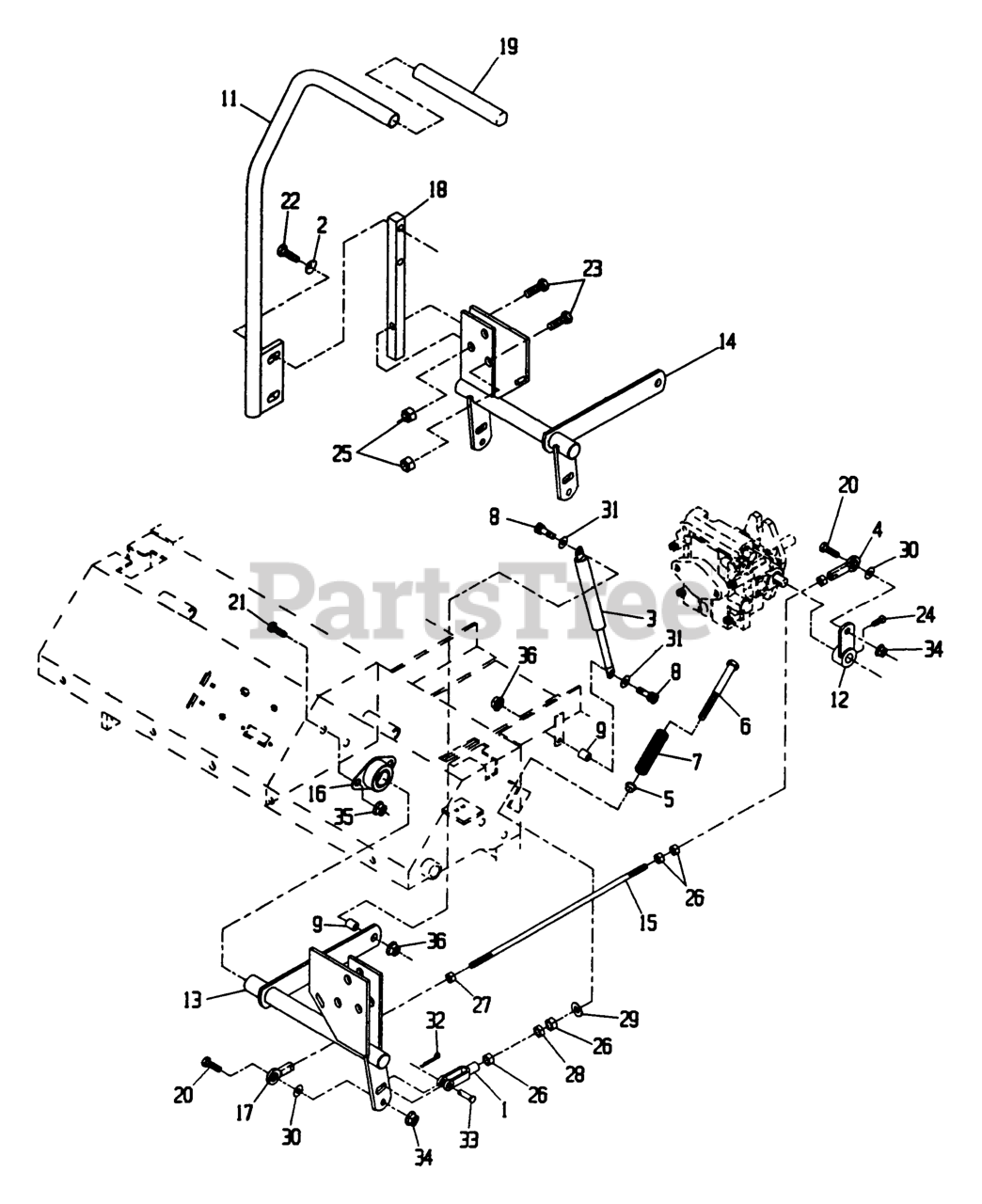

Motion Control Levers Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

2

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

3

Exmark 1-523027

109-2339
(Superseded to 109-2339)

$80.99

$

In Stock, Qty 6

0

4

Exmark 1-543017

BALLJOINT-RH

$22.99

$

In Stock, only 4 left!

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, Qty 5

0

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, Qty 8

0

8

Exmark 1-809057

SCREW-HSH

Note: Use Pro-Lock, Retaining Type (P/N 840023) on damper mounting shoulder bolts.

$

$

Not available

9

Exmark 1-603903

SPACER

$5.99

$

In Stock, Qty 20+

0

10

Exmark 1-632191-03

1-634258
(Superseded to 1-634258)

Note: Not illustrated.

$

$

Not available

11

Exmark 1-632193-03

1-634259
(Superseded to 1-634259)

$

$

Not available

12

Exmark 1-632208-03

1-632208
(Superseded to 1-632208)

$29.99

$

In Stock, Qty 20+

0

13

Exmark 1-632213

1-641335
(Superseded to 1-641335)

$

$

Not available

14

Exmark 1-632215

109-3907
(Superseded to 109-3907)

$143.99

$

Usually ships in 3-6 days

0

15

Exmark 1-633153

103-3064
(Superseded to 103-3064)

$50.99

$

In Stock, only 2 left!

0

16

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

17

Exmark 1-633152

BALLJOINT-LH

$22.99

$

In Stock, only 2 left!

0

18

Exmark 1-633177

ARM-CONTROL, SHAFT

$70.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

20

Exmark 1-800274

322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 17

0

21

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

22

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

23

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

25

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

28

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

29

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

30

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 15

0

31

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 9

0

32

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.99

$

Usually ships in 3-6 days

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

34

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 5

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 1 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$22.99

$

In Stock, only 1 left!

0
