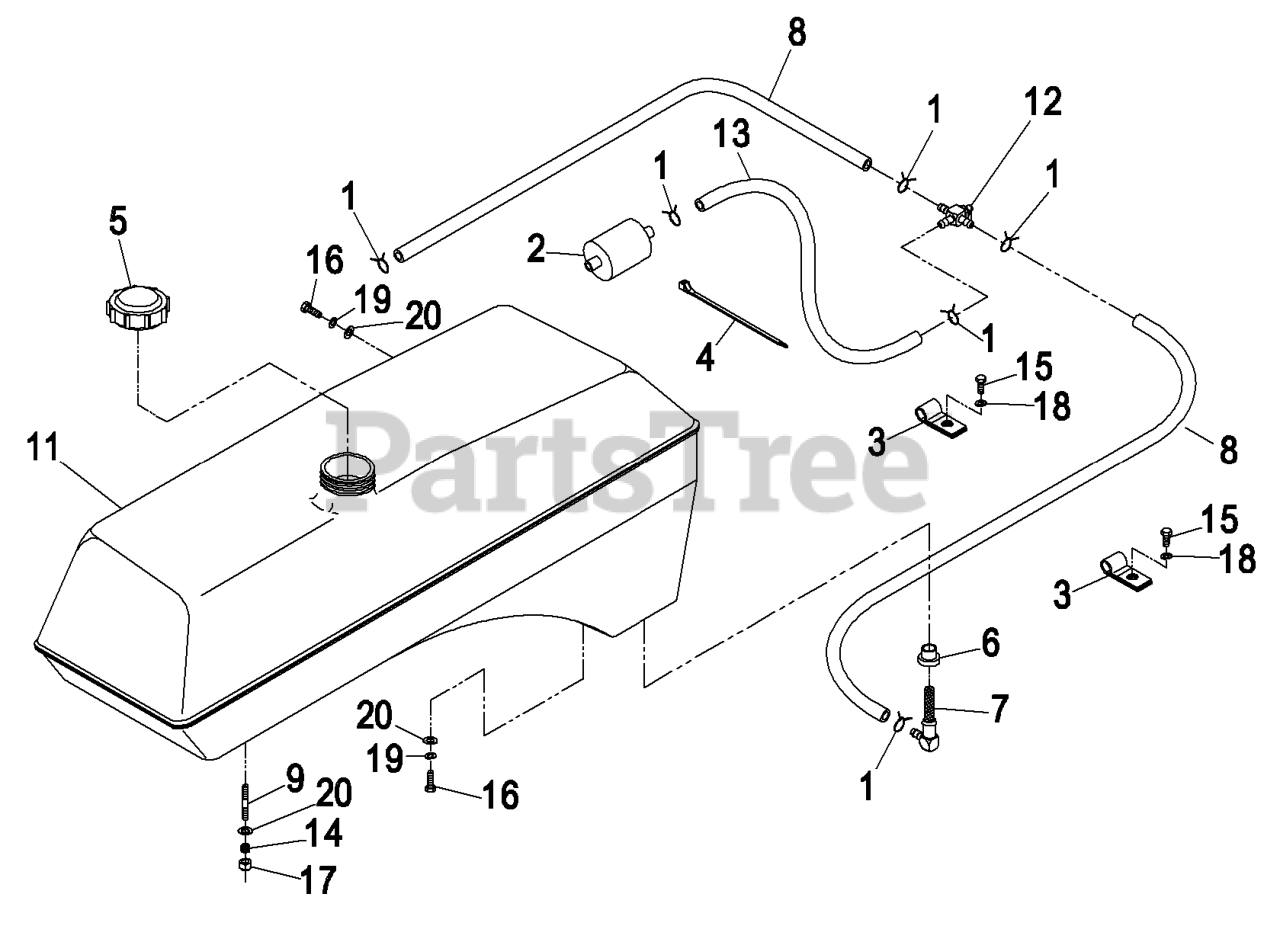

LZ25KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 25HP Kohler (SN: 260000 - 319999) (2001) > Parts Diagrams (26) > 23 HP Kawasaki And 23 & 25 HP Kohler Air-Cooled Fuel Group

  • Title
303077

1

Clamp, Fuel Line

Part# 303077

OEM Warranty Repair Part for Exmark

Currently unavailable

Fuel Filter

2

Fuel Filter

Part# Fuel Filter

Note: Kohler Part No. 2405002 Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

Not available

Fuel Filter

Fuel Filter

Part# Fuel Filter

Note: Kawasaki Part No. 49019-7001 Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

Not available

513762

3

Clip, Loom .50

Part# 513762

OEM Warranty Repair Part for Exmark

Currently unavailable

303335

4

Plastic Tie (Large)

Part# 303335

OEM Warranty Repair Part for Exmark

Currently unavailable

513508

5

Cap, Fuel Tank

Part# 513508

OEM Warranty Repair Part for Exmark

Not available

513645

6

Bushing

Part# 513645

OEM Warranty Repair Part for Exmark

Currently unavailable

543277

7

Elbow, Strainer

Part# 543277

OEM Warranty Repair Part for Exmark

Currently unavailable

543456

8

Fuel Line

Part# 543456

OEM Warranty Repair Part for Exmark

Currently unavailable

633023

9

Stud, Fuel Tank

Part# 633023

OEM Warranty Repair Part for Exmark

Currently unavailable

633967

10

Tank, Fuel (Lh)

Part# 633967

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Currently unavailable

633968

11

Tank, Fuel (Rh)

Part# 633968

OEM Warranty Repair Part for Exmark

Currently unavailable

633347

12

Valve, Fuel

Part# 633347

OEM Warranty Repair Part for Exmark

Currently unavailable

633348

13

Fuel Line

Part# 633348

OEM Warranty Repair Part for Exmark

Currently unavailable

633349

14

Spring, Fuel Tank

Part# 633349

OEM Warranty Repair Part for Exmark

Currently unavailable

321-3

15

Screw, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

322-3

16

Screw, 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

3296-47

17

Nut, Thin Nylock 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.49

805004

18

Washer, Lock 1/4

Part# 805004

OEM Warranty Repair Part for Exmark

Currently unavailable

805005

19

Washer, Lock 5/16

Part# 805005

OEM Warranty Repair Part for Exmark

Currently unavailable

3256-23

20

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-840023

Pro-Lock, Retaining Type

Part# 1-840023

Note: .5cc tube

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.16
