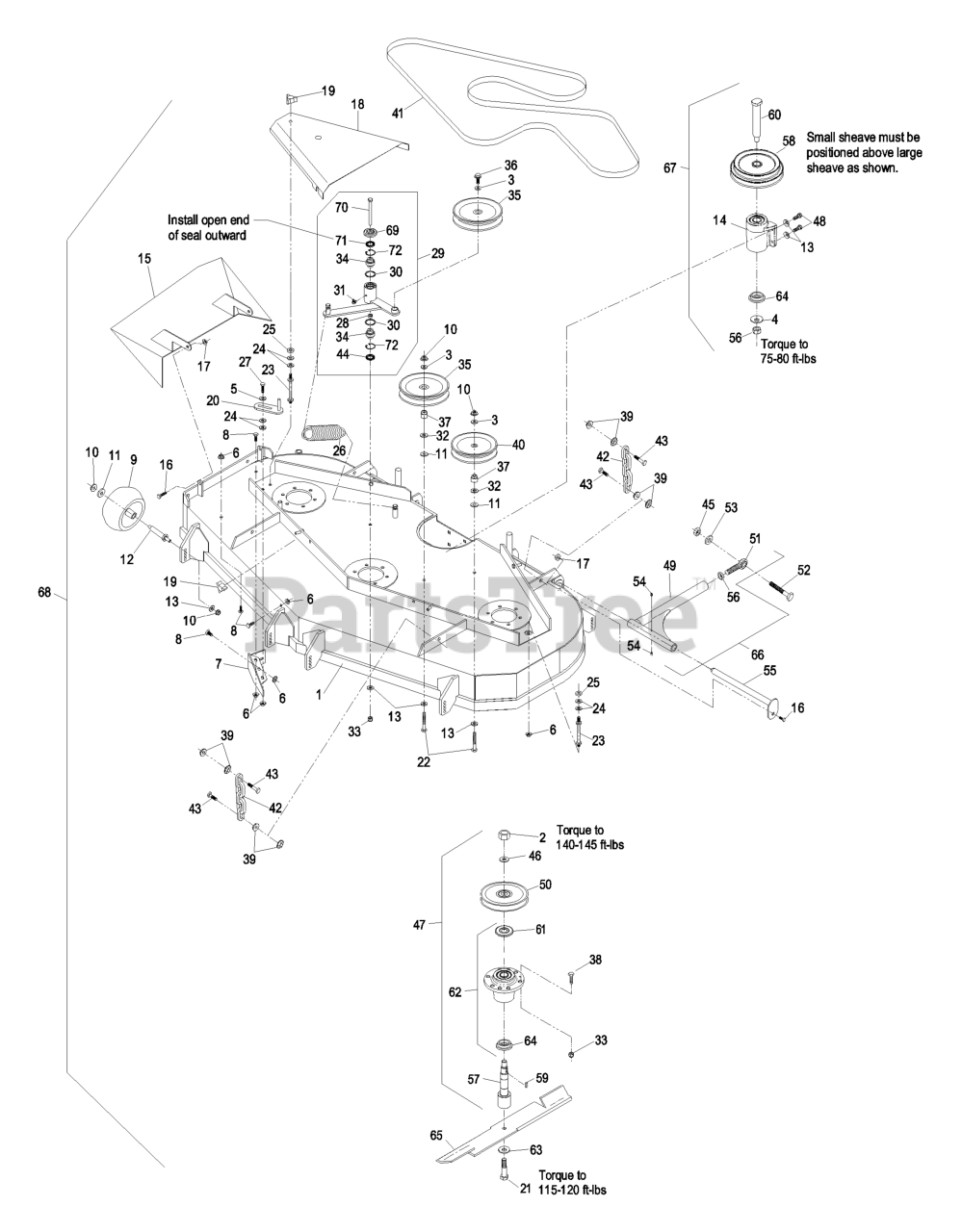

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005)

60" Lazer Z AS Zero-Turn Mower, 25HP Kohler

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005) > Parts Diagrams (14) > Deck Group 60"

  • Title
103-3184

1

Asm, Deck (103-3029-01) W/Decals

Part# 103-3184

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2775.16

3217-46

2

Nut, Hex 3/4-16 Heavy

Part# 3217-46

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #2.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.97

3256-24

3

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

1-513208

4

Washer, Spring Disk

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-303334

5

Washer, 5/16 Spring Disk

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

32128-20

6

Nut, 5/16-18 Whizlock

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-602913-01

7

Baffle Wldmt, Discharge

Part# 1-602913-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.77

322-2

8

Screw, 5/16-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.86

1-603299

9

Roller, Antiscalp

Part# 1-603299

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

3290-357

10

Nut, 3/8-16 Whizlock

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-373034

11

Washer, Pivot

Part# 1-373034

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.33

99-2842

12

Spacer

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

98-5975

13

Washer, 3/8 Spring Disk

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

103-2544

14

Asm, Jackshaft Housing W/Brgs

Part# 103-2544 (Superseded to 103-9746)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $175.67

103-5830-01

15

Chute, Discharge 60"

Part# 103-5830-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $101.24

322-5

16

Screw, 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42

3296-29

17

Nut, 5/16-18 Nyloc

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

1-633084-01

18

Shield, Belt 60"

Part# 1-633084-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.92

1-323385

19

Knob, Belt Shield

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-322110

20

Belt Guide Wldmt

Part# 1-322110

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02

103-0862

21

Screw, 5/8-18 X 2 3/4 Gr 8

Part# 103-0862

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

323-11

22

Screw, 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-303537

23

Stud, Belt Shield

Part# 1-303537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

3256-3

24

Washer 5/16 Std Flat

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

1-323417

25

Washer, Rubber

Part# 1-323417

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-3330

26

Spring, Extension

Part# 103-3330 (Superseded to 116-6317)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

322-6

27

Screw, 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

103-5677

28

Spacer

Part# 103-5677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-5693

29

Kit, Idler Arm (103-6528-01) W/Bearings

Part# 103-5693

Note: Kit also includes items #13 & #33.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $96.14

106-7159

30

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

302-40

31

Zerk, 1/4-20 90°.

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.37

3256-4

32

Washer, 3/8 Std Flat

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3296-39

33

Nut, 3/8-16 Nyloc

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

103-3504

34

Bearing, Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.76

1-633109

35

Idler Pulley 6.00 Dia Flat

Part# 1-633109 (Superseded to 126-7685)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $43.75

3234-11

36

Bolt, 3/8-16 X 1 Whizlock

Part# 3234-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.12

1-633456

37

Bushing, Idler

Part# 1-633456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

323-8

38

Screw, 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

32128-37

39

Nut, 7/16-14 Whizlock

Part# 32128-37

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

1-603805

40

Idler Pulley 5.06 O.D. V

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.94

1-633127

41

Belt, Blade Drive 60" Deck

Part# 1-633127

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $86.53

1-633447

42

Chain

Part# 1-633447

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.05

103-1898

43

Screw, 7/16-14 X 1 5/8 Sp

Part# 103-1898

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

103-3505

44

Seal, Double Lip

Part# 103-3505

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

3217-11

45

Nut, 5/8-11 Hex

Part# 3217-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.54

103-2802

46

Washer, Spring Disk

Part# 103-2802

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-8075

47

Cutter Housing Complete

Part# 103-8075

Note: Complete cutter housing assembly also includes items #63 & #21.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $359.99

323-6

48

Screw. 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

103-1072-01

49

Strut Wldmt, Deck

Part# 103-1072-01 (Superseded to 109-1181)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $68.31

103-2794

50

Sheave, Blade Drive

Part# 103-2794

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.06

1-633029

51

Spherical Rod End

Part# 1-633029

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $45.15

327-11

52

Screw, 5/8-11 X 5

Part# 327-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.36

3253-8

53

Lockwasher,5/8 Reg.Spring

Part# 3253-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.52

302-19

54

Zerk, 1/4-28 Straight

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

1-632199-01

55

Pin Wldmt, Deck Strut

Part# 1-632199-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.56

3219-6

56

Nut, 5/8-18 Hex

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

103-2785

57

Spindle

Part# 103-2785

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $78.25

103-3046

58

Sheave, Jackshaft Double

Part# 103-3046

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $79.37

103-2982

59

Key, 1/4 X 3/16 X 3/4

Part# 103-2982

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-643393

60

Jackshaft

Part# 1-643393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.85

103-1330

61

Guard, Bearing Top

Part# 103-1330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-8280

62

Housing W/Bearings

Part# 103-8280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $178.87

103-0865

63

Washer, Spring Disk 5/8

Part# 103-0865

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.35

103-2535

64

Spacer, Guard Bottom

Part# 103-2535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.21

103-2530

65

Blade, Notched

Part# 103-2530 (Superseded to 103-2530-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-2510

Blade, Low Lift

Part# 103-2510 (Superseded to 103-2510-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.82

103-0301

Blade, Mulching

Part# 103-0301 (Superseded to 103-0301-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-1580

Blade, Solid

Part# 103-1580 (Superseded to 103-1580-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

103-6338

Blade, Extreme

Part# 103-6338 (Superseded to 116-5173-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.47

103-1081

66

Asm, Strut Long

Part# 103-1081

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $175.97

103-3249

67

Jackshaft Assy

Part# 103-3249

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $312.73

103-3258

68

Complete Deck Assy

Part# 103-3258

Note: Complete deck assembly excludes items #39, #42, #43, and #66 and includes mule drive belt from "Engine Deck Group".

OEM Warranty Repair Part for Exmark

Currently unavailable

103-2916

69

Guard, Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

98-5961

70

Screw, 3/8-16 X 4 Gr 8

Part# 98-5961

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-3506

71

Seal, Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.37

32120-10

72

Ring, Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
