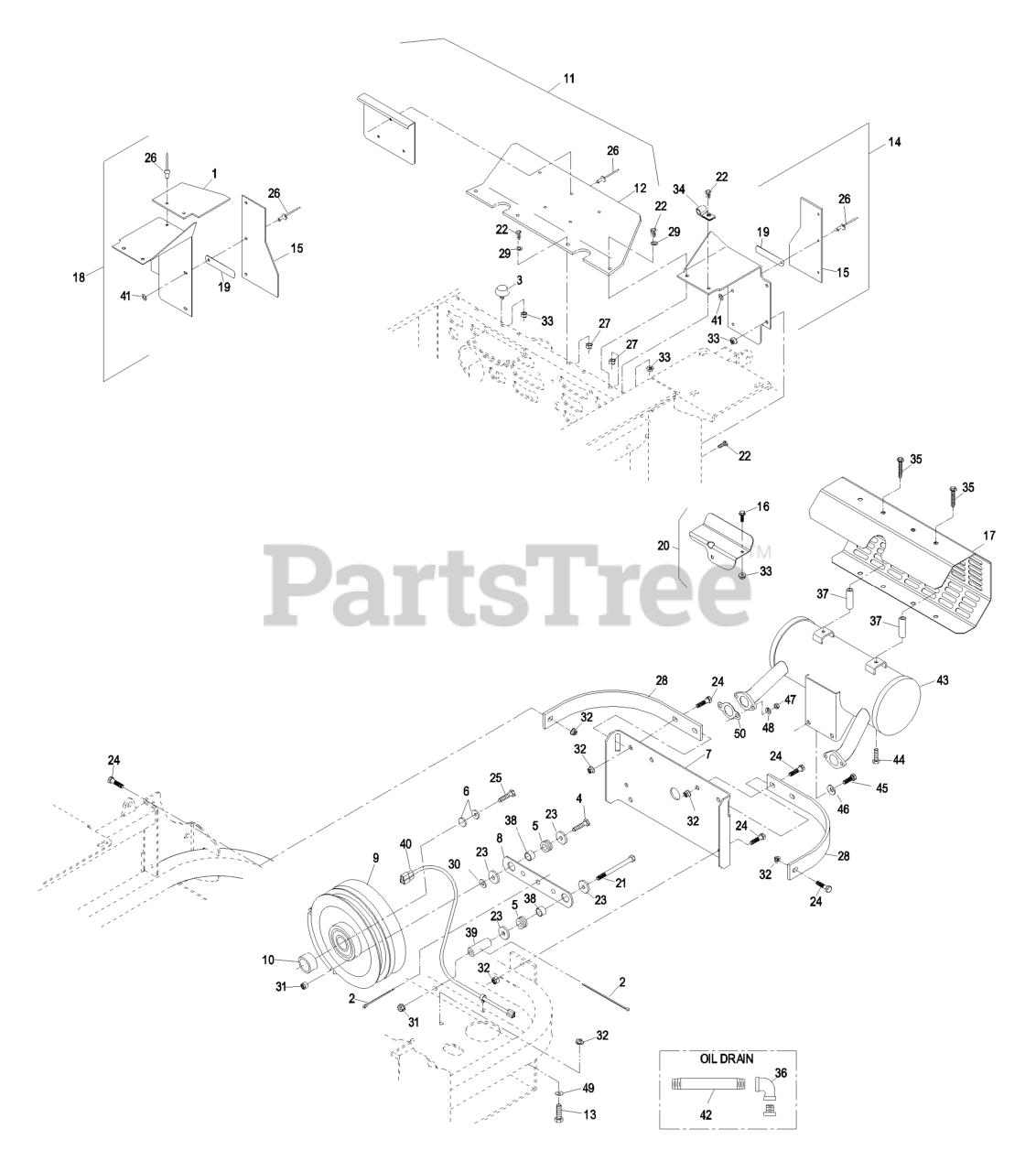

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005) > Parts Diagrams (14) > Engine Deck Group (Cont.)

  • Title
1-643315

1

Baffle, Engine Cooler (25hp)

Part# 1-643315

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.40

1-303335

2

Plastic Tie

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

1-523420

3

Bumper, Rubber

Part# 1-523420 (Superseded to 109-2365)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

322-6

4

Screw, 5/16 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

1-633630

5

Grommet

Part# 1-633630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.75

1-603610

6

Washer, Spring Disc

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-633615-03

7

Guard, Rear Engine

Part# 1-633615-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.68

1-633543-03

8

Strap, Clutch

Part# 1-633543-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

103-3245

9

Clutch Kit (23hp)

Part# 103-3245

Note: Includes clutch and jumper harness kit item #40.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $394.64

103-3246

Clutch Kit (25hp)

Part# 103-3246 (Superseded to 109-7665)

Note: Includes clutch and jumper harness kit item #40.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $530.07

103-3012

Kit, Brake Pole Module

Part# 103-3012

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $93.00

1-633453

10

Spacer (23hp)

Part# 1-633453

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

1-633179

Spacer (25hp)

Part# 1-633179

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

103-3340

11

Asm, Shield W/Decals

Part# 103-3340 (Superseded to 1-644276)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $71.81

103-1308

12

Shield, Engine

Part# 103-1308

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

323-9

13

Screw, 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

1-634796

14

Shield (Lh) - Subassy

Part# 1-634796

OEM Warranty Repair Part for Exmark

Not available

1-633301

15

Shield, Heat

Part# 1-633301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.76

321-4

16

Screw, 1/4-20x 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-643313-03

17

Shield, Muffler

Part# 1-643313-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $70.63

1-644316

18

Shield (Rh) - Subassy

Part# 1-644316

OEM Warranty Repair Part for Exmark

Not available

1-523285

19

Clip, Shield

Part# 1-523285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

103-3535

20

Kit, Cable Heat Shield

Part# 103-3535

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $67.10

322-19

21

Screw, 5/16-18 X 4

Part# 322-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.47

321-4

22

Screw, 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

1-613235

23

Washer

Part# 1-613235

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

323-6

24

Screw, 3/8-16x1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

3212-10

25

Screw, 7/16-20 X 2 1/2

Part# 3212-10

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.62

1-803035

26

Rivet, 3/16 X 1/4

Part# 1-803035

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.16

3296-42

27

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

103-7454-03

28

Bracket, Guard Top

Part# 103-7454-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.99

3256-2

29

Washer, 1/4 Std

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

3256-3

30

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

32128-20

31

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

3290-357

32

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

32128-33

33

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-633396

34

Clip, Loom .56

Part# 1-633396

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

1-809108

35

Screw, Self Tapping 5/16-18x1.75

Part# 1-809108

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

1-809076

Screw, M6-1.0 X 45mm

Part# 1-809076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-303428

36

Elbow, 3/8 Npt

Part# 1-303428

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.58

1-323236

37

Spacer

Part# 1-323236

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-633545

38

Spacer, Grommet

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-633988

39

Spacer, Clutch Anchor

Part# 1-633988

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

103-3247

40

Kit, Clutch Jumper Harness

Part# 103-3247

Note: Includes jumper harness, clip and 2 plastic ties item #2.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.42

3256-63

41

Washer, 3/16 Std

Part# 3256-63

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

1-543232

42

Nipple, Pipe 3/8 Npt

Part# 1-543232

Note: Use a Teflon Pipe Sealant or equivalent on threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.11

103-7480

43

Kit, Muffler Kohler

Part# 103-7480

Note: Includes items #20, & #50.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $160.11

9266934

44

Screw, 5/16-18x.5

Part# 9266934

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

324-2

45

Screw, 7/16-14x.75 G5

Part# 324-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

3253-6

46

Washer, Lock 7/16

Part# 3253-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.70

33014-00

47

Nut, Hex M8 1.25

Part# 33014-00

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

1-805005

48

Washer, Lock 5/16 Hvy

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

98-5975

49

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-653291

50

Gasket

Part# 1-653291 (Superseded to 110-6697)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.59
