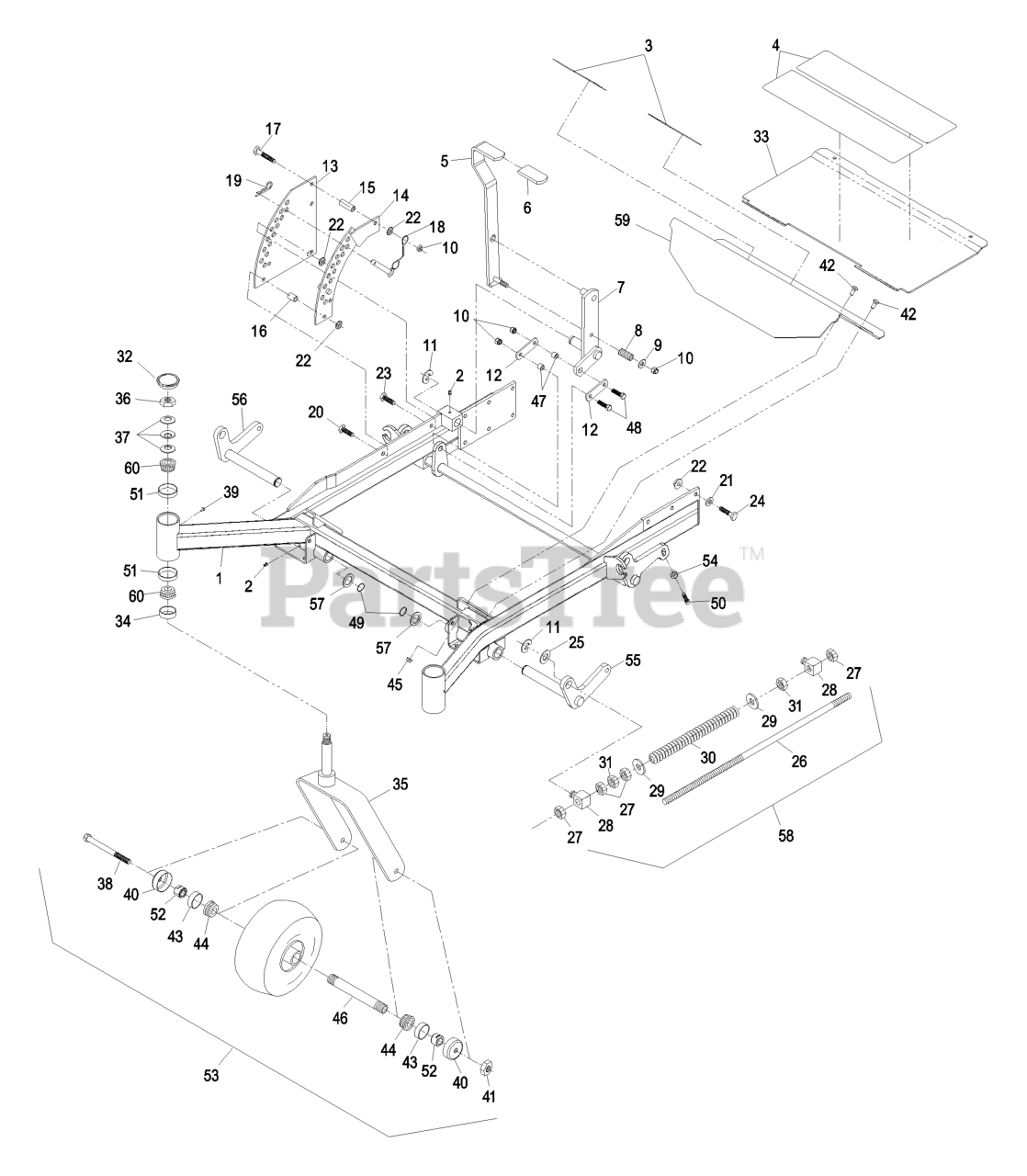

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005) > Parts Diagrams (14) > Front Frame Group

  • Title
103-5473

1

Asm, Front Frame, 52"

Part# 103-5473

Note: Includes frame weldment plus items #32, #34, #39, #49, #51, #55, #56, and #57.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1848.53

103-5474

Asm, Front Frame, 60"

Part# 103-5474

Note: Includes frame weldment plus items #32, #34, #39, #49, #51, #55, #56, and #57.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1968.63

302-19

2

Zerk, 1/4-28 Straight

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

106-6572

3

Pad, Antiskid

Part# 106-6572

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

1-633553

4

Pad, Anti Skid

Part# 1-633553

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

103-2084

5

Asm,Lever(103-2083-03)W/Grip

Part# 103-2084

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.97

1-633295

6

Grip, Lift Lever

Part# 1-633295

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

103-2064-03

7

Arm Wldmt, Deck Lift

Part# 103-2064-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.51

1-633325

8

Spring, Compression

Part# 1-633325

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.38

3256-24

9

Washer, 3/8 SAE Flat

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

3296-39

10

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.05

32151-103

11

E-Ring

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-633068

12

Arm, Deck Lift

Part# 1-633068

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-633889-01

13

Plate, Deck Lift

Part# 1-633889-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $57.68

103-5350-01

14

Plate Wldmt, Deck Lift

Part# 103-5350-01 (Superseded to 109-1899)

OEM Warranty Repair Part for Exmark

Not available

1-633082

15

Bushing, Lift Lever

Part# 1-633082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.82

1-633080

16

Bushing, Lift Lever

Part# 1-633080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.80

323-13

17

Screw, 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.82

1-633097

18

Hitch Pin W/Lanyard

Part# 1-633097

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.35

1-806005

19

Hairpin Cotter

Part# 1-806005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

323-9

20

Screw, 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

98-5975

21

Washer, 3/8 Disc Spring

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

3290-357

22

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

323-6

23

Screw, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

323-7

24

Screw, 3/8-16x1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3256-29

25

Washer, 7/8 SAE Flat

Part# 3256-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-633096

26

Rod, Deck Lift

Part# 1-633096

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.72

3217-11

27

Nut, 5/8-11 Regular

Part# 3217-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.54

1-633441

28

Swivel, Deck Mount

Part# 1-633441

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.92

3256-7

29

Washer, 5/8 Std Flat

Part# 3256-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.17

1-633064

30

Spring, Deck Support

Part# 1-633064

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.23

3218-6

31

Jam Nut, 5/8-11

Part# 3218-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.80

103-4882

32

Cap, Grease

Part# 103-4882

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

103-3528

33

Asm, Floorpan (103-3241-01) W/Pads & Decals

Part# 103-3528

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $148.34

1-543511

34

Seal, Grease

Part# 1-543511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.82

1-632511-01

35

Caster Wldmt

Part# 1-632511-01 (Superseded to 116-8883)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $96.99

3296-51

36

Nut, 3/4-10 Nyloc

Part# 3296-51

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.90

1-633508

37

Washer, Spring Disk

Part# 1-633508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.56

325-36

38

Screw, 1/2-13 X 7 1/2

Part# 325-36

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.70

1-811010

39

Plug

Part# 1-811010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-2768

40

Guard, Seal

Part# 103-2768

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

3296-23

41

Nut, 1/2-13 Nyloc

Part# 3296-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

3230-1

42

Bolt, Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

103-0063

43

Seal, Bearing

Part# 103-0063

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-633585

44

Bearing Cone

Part# 1-633585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.96

32128-20

45

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-3155

46

Axle, Caster

Part# 103-3155 (Superseded to 126-5360)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

103-1918

47

Bushing

Part# 103-1918

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.58

323-29

48

Screw, 3/8-16 X 1 3/8

Part# 323-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.42

32151-29

49

Ring, Retaining

Part# 32151-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3274-18

50

Screw, Socket Hd5/16-18x1 1/4

Part# 3274-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.46

1-543508

51

Bearing Cup, Tapered Roller

Part# 1-543508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

103-3051

52

Spacer, Nut

Part# 103-3051

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #52.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-5189

53

Asm, Caster Wheel (Pneumatic)

Part# 103-5189

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $163.22

1-633002

Tire, 13 X 5.0-6 4 Ply (Pneumatic)

Part# 1-633002

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $65.95

103-3785

Asm, Caster Wheel (Semi-Pneumatic)

Part# 103-3785 (Superseded to 109-9126)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $231.42

3218-2

54

Jam Nut, 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

103-1955-01

55

Weldmt, Front Lift Shaft (Lh)

Part# 103-1955-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.65

103-5340-01

56

Weldmt, Front Lift Shaft (Rh)

Part# 103-5340-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $90.65

1-523157

57

Washer, Spacer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-634439

58

Asm, Deck Lift Spring

Part# 1-634439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $47.77

103-3527

59

Asm, Floorpan (103-3242-01) W/Pads & Decals

Part# 103-3527

OEM Warranty Repair Part for Exmark

Not available

1-543509

60

Bearing Cone, Tapered Roller

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00
