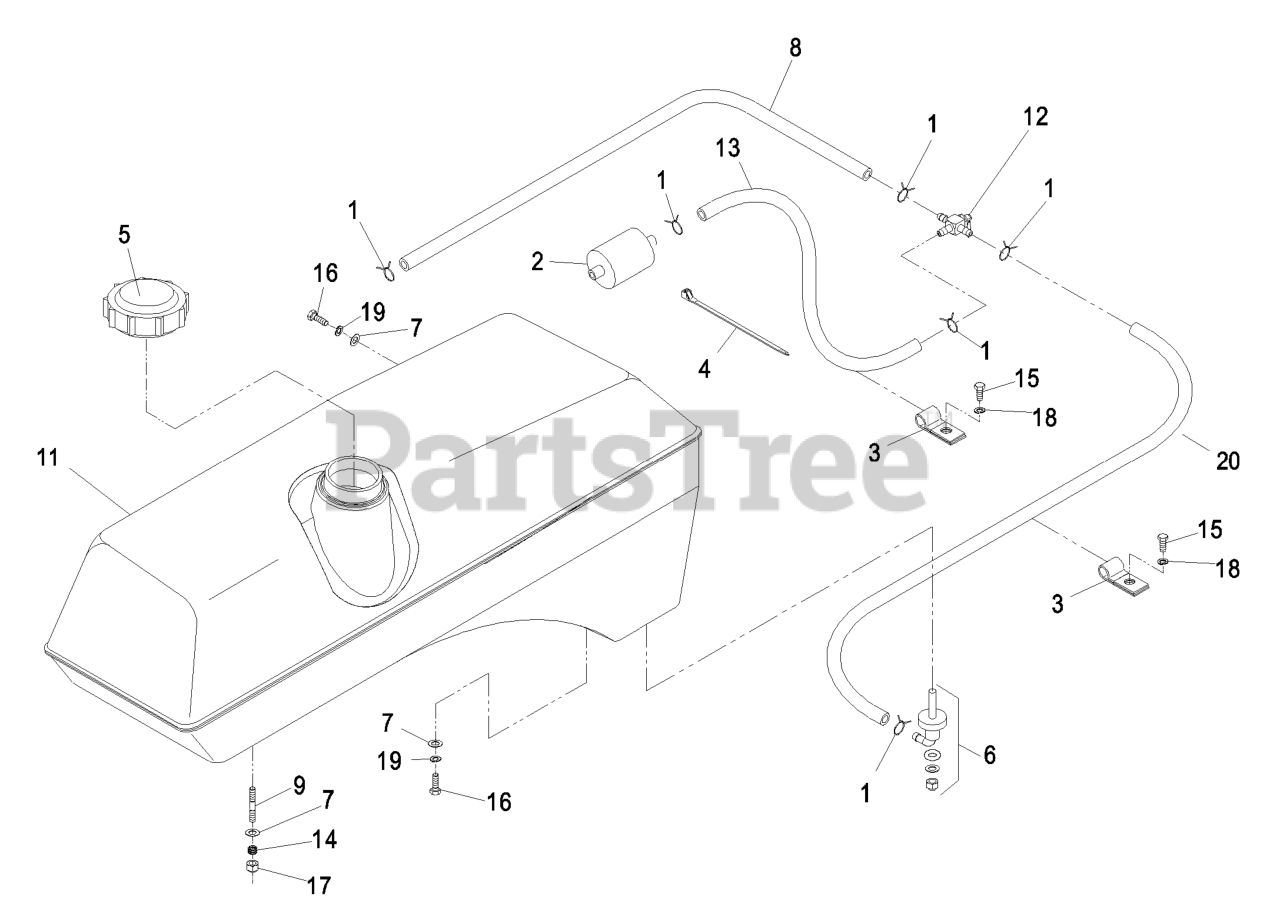

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005) > Parts Diagrams (14) > Kohler Fuel Group

  • Title
1-303077

1

Clamp, Fuel Line

Part# 1-303077

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

Kohler Part No. 2405002 Fuel Filter

2

Kohler Part No. 2405002 Fuel Filter

Part# Kohler Part No. 2405002 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 15 Micron or smaller).

Not available

1-513762

3

Clip, Loom

Part# 1-513762

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

1-303335

4

Plastic Tie (Large)

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

103-3536

5

Cap, Fuel Tank

Part# 103-3536 (Superseded to 109-0346)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.61

103-2605

6

Fitting, Fuel Blkhd W/Screen

Part# 103-2605

Note: Use Pro-lock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting threads.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $24.59

103-2784

O-Ring

Part# 103-2784

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

3256-23

7

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

1-543456

8

Fuel Line

Part# 1-543456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02

1-633023

9

Stud, Fuel Tank

Part# 1-633023

Note: Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.50

103-2132

10

Asm, Tank Fuel (Lh)

Part# 103-2132

Note: Includes tank, cap, fitting & studs. Not illustrated.

OEM Warranty Repair Part for Exmark

Not available

103-2133

11

Asm,Tank Fuel (Rh)

Part# 103-2133

Note: Includes tank, cap, fitting & studs.

OEM Warranty Repair Part for Exmark

Not available

1-633347

12

Valve, Fuel

Part# 1-633347

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.79

1-633348

13

Fuel Line

Part# 1-633348 (Superseded to 109-0307)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

1-633349

14

Spring, Fuel Tank

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

321-3

15

Screw, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

322-3

16

Screw, 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

3296-47

17

Nut, Thin Nyloc 5/16-18

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.19

1-805004

18

Washer, Lock 1/4

Part# 1-805004

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-805005

19

Washer, Lock 5/16

Part# 1-805005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-2885

20

Fuel Line

Part# 103-2885

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.02
