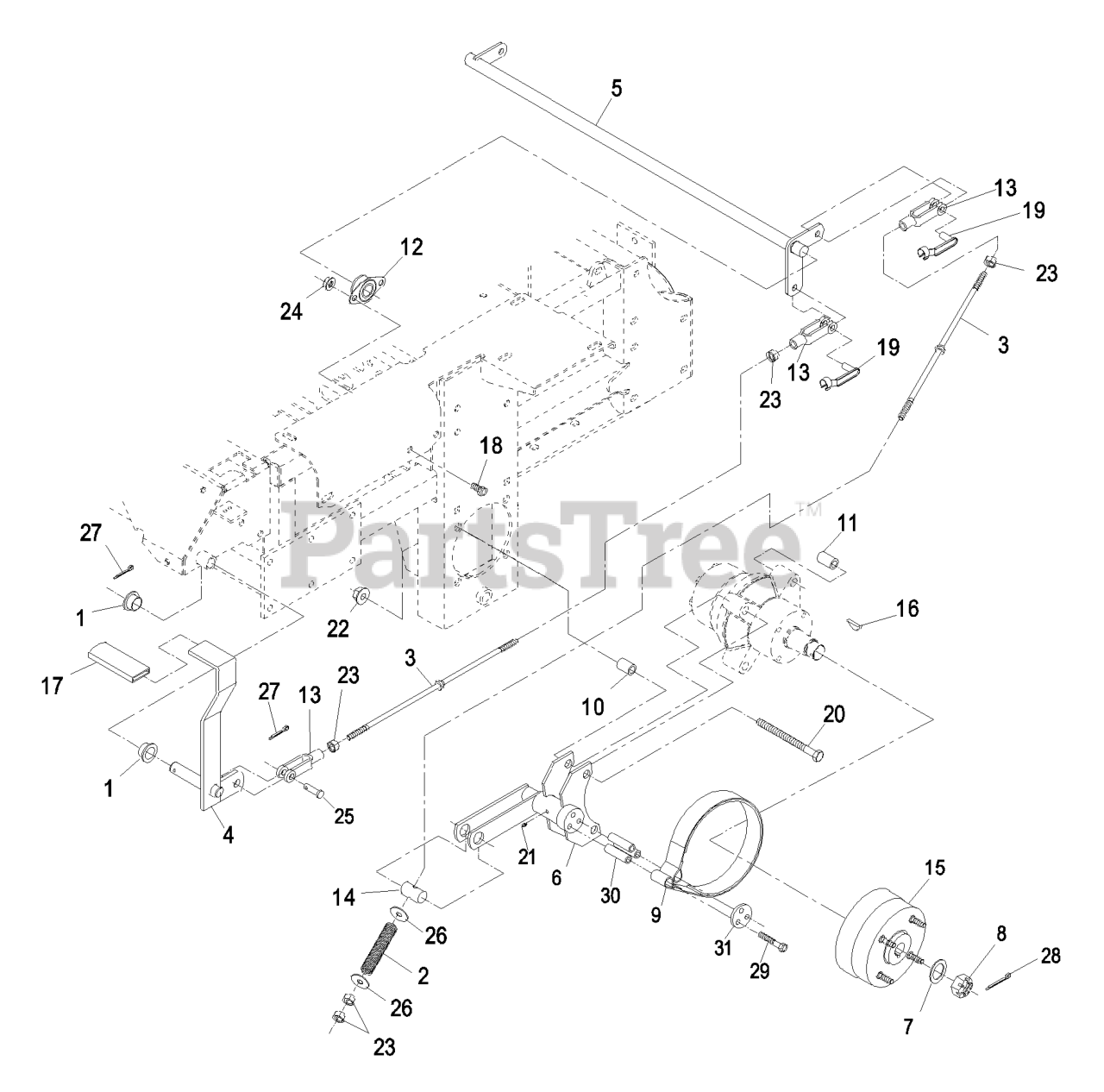

LZ25KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 25HP Kohler (SN: 510000 - 539999) (2005) > Parts Diagrams (14) > Park Brake Group

  • Title
1-513140

1

Bushing

Part# 1-513140

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-633454

2

Spring, Brake Rod

Part# 1-633454

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-633477

3

Rod, Brake

Part# 1-633477

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.11

1-634500

4

Lever (1-632489-03)W/Grip

Part# 1-634500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.53

1-632217-03

5

Shaft, Brake

Part# 1-632217-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.90

103-0352-03

6

Bracket, Brake (52")

Part# 103-0352-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $148.34

103-0354-03

Bracket, Brake (60")

Part# 103-0354-03

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $144.37

1-523157

7

Washer, Spacer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-809036

8

Nut, Slotted 1.00-20

Part# 1-809036

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.70

103-0355

9

Band, Brake

Part# 103-0355 (Superseded to 103-9761)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.47

1-633380

10

Spacer (Short)(52")

Part# 1-633380

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-633060

Spacer (Short) (60")

Part# 1-633060

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.05

1-633382

11

Spacer (Long)(52")

Part# 1-633382

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-633062

Spacer (Long)(60")

Part# 1-633062 (Superseded to 109-5012)

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.03

1-633102

12

Bearing, Flange

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-633131

13

Yoke

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

1-633144

14

Pin, Trunion

Part# 1-633144

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.05

103-0590

15

Hub & Drum W/Studs, Wheel

Part# 103-0590

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $121.99

1-633926

Studs, Wheel

Part# 1-633926

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

3257-42

16

Key, Woodruff 5/16 X 1

Part# 3257-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.94

1-633268

17

Grip, Brake Lever

Part# 1-633268

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

323-4

18

Screw, 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.95

103-2399

19

Pin, Clevis Spring 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

325-17

20

Screw, 1/2-13 X 4 (52")

Part# 325-17

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

325-20

Screw, 1/2-13 X 6 (60")

Part# 325-20

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

1-603991

21

Zerk, 1/4-28 Straight (52")

Part# 1-603991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.66

302-19

Zerk, 1/4-28 90° (60")

Part# 302-19

Note: Not Illustrated.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.77

32128-49

22

Nut, Whizlock 1/2-13 Unc-2b

Part# 32128-49

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.49

3219-3

23

Nut, 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

3290-357

24

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

1-808285

25

Pin, Clevis 3/8 X 1 1/4

Part# 1-808285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

3256-4

26

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3272-10

27

Pin, Cotter 1/8 X 3/4

Part# 3272-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

1-806800

28

Pin, Cotter 9/64 X 1 1/2

Part# 1-806800

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

322-9

29

Screw, 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.38

103-0384

30

Spacer

Part# 103-0384

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

103-0374

31

Retainer, Brake Band

Part# 103-0374

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52
