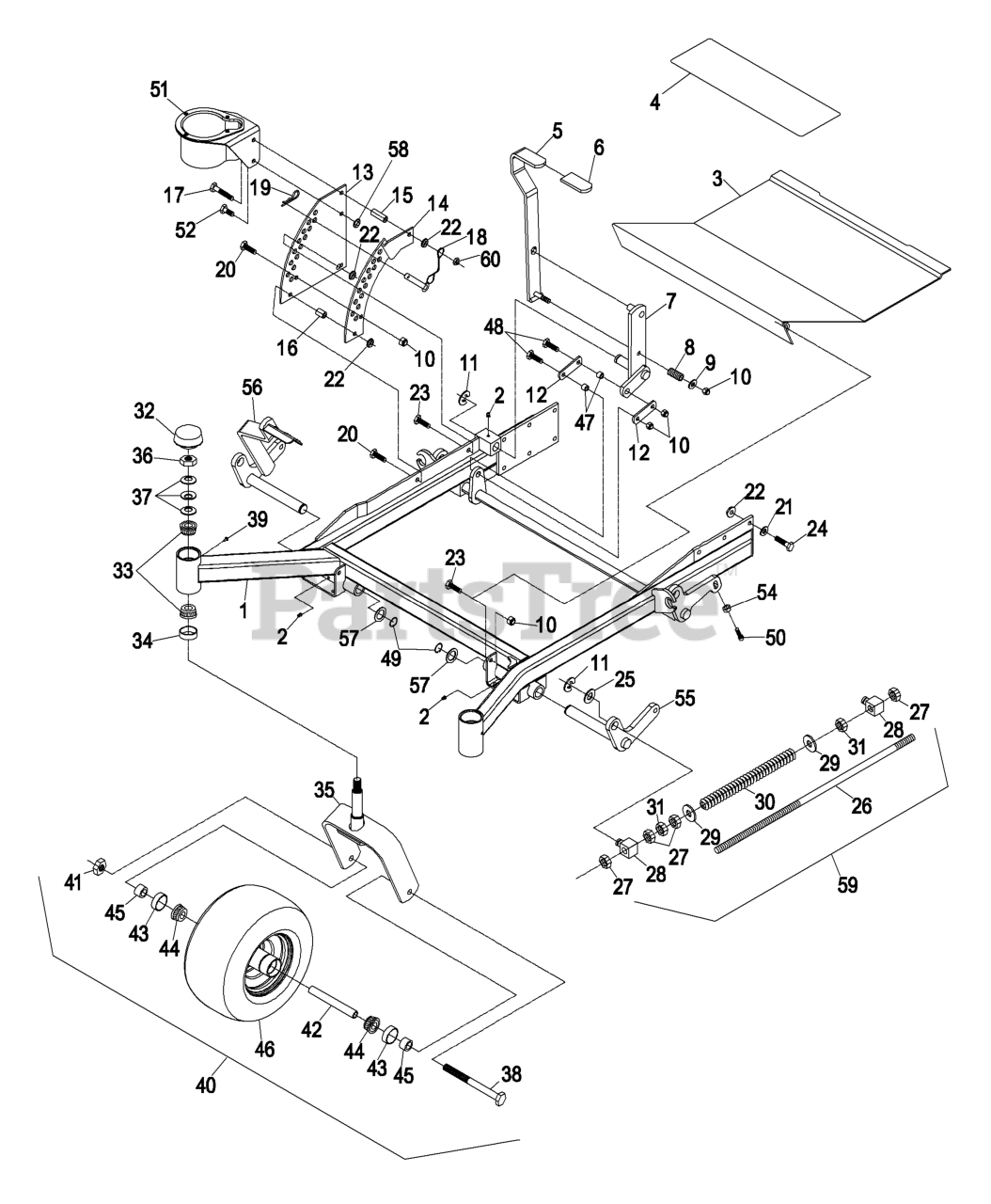

LZ26KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 320000 - 369999) (2002) Front Frame Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 26hp Kohler

Front Frame Group Parts Diagram

  • Title

1

Exmark 103-2066-01

103-3658
(Superseded to 103-3658)

$

$

Not available

Exmark 103-2068-01

103-3659
(Superseded to 103-3659)

$3574.99

$

Usually ships in 3-6 days

0

Exmark 103-1909-01

103-3661
(Superseded to 103-3661)

$

$

Not available

2

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

3

Exmark 103-1490-01

103-1502
(Superseded to 103-1502)

$

$

Not available

4

Exmark 1-633553

PAD-ANTISKID

$15.99

$

In Stock, Qty 6

0

5

Exmark 103-2084

LIFT LEVER/GRIP ASM

$86.99

$

Usually ships in 3-6 days

0

Exmark 103-2083-03

103-2084
(Superseded to 103-2084)

$86.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633295

GRIP-LEVER, LIFT

$8.99

$

In Stock, Qty 8

0

7

Exmark 103-2064-03

ARM-LIFT, DECK

$83.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633325

SPRING-COMPRESSION

$5.99

$

In Stock, only 1 left!

0

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

14

Exmark 1-632899-01

PLATE-LIFT, DECK

$

$

Not available

15

Exmark 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 1 left!

0

16

Exmark 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 323-13

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

18

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$27.99

$

In Stock, only 3 left!

0

19

Exmark 1-806005

PIN-COTTER

Note: (Serv only)

$2.99

$

In Stock, Qty 20+

0

20

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 8

0

26

Exmark 1-633096

ROD-LIFT, DECK

$27.99

$

In Stock, Qty 8

0

27

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

28

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$29.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Exmark 1-633064

SPRING-SUPPORT, DECK

$37.99

$

Usually ships in 3-6 days

0

Exmark 1-643015

SPRING-SUPPORT, DECK

$46.99

$

Usually ships in 3-6 days

0

31

Exmark 3218-6

NUT-JAM

$7.49

$

In Stock, Qty 9

0

32

Exmark 1-543513

CAP-GREASE

$9.49

$

In Stock, Qty 20+

0

33

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

34

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

35

Exmark 103-1474-01

116-8888
(Superseded to 116-8888)

$208.99

$

In Stock, Qty 20+

0

36

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

37

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

38

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

0

39

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

40

Exmark 103-0069

103-5188
(Superseded to 103-5188)

$253.99

$

Usually ships in 3-6 days

0

41

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-633959

SPACER-CASTER, FRONT

$19.99

$

In Stock, only 4 left!

0

43

Exmark 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

44

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

45

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

46

Exmark 103-0065

117-0361
(Superseded to 117-0361)

$253.99

$

Usually ships in 3-6 days

0

Exmark 1-523009

TIRE

$124.99

$

Usually ships in 3-6 days

0

Exmark 103-0071

103-5188
(Superseded to 103-5188)

$253.99

$

Usually ships in 3-6 days

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

47

Exmark 103-1918

BUSHING

$8.99

$

In Stock, Qty 6

0

48

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 8

0

49

Exmark 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0

50

Exmark 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

51

Exmark 103-2437

1-641284
(Superseded to 1-641284)

$

$

Not available

52

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

54

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

55

Exmark 103-1955-01

WLD, FRONT LIFT SHAFT - L

$168.99

$

Usually ships in 3-6 days

0

56

Exmark 103-2013-01

WLD, FRONT LIFT W/ LEVER

$168.99

$

Usually ships in 3-6 days

0

57

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

59

Exmark 1-634439

FRONT FRAME SPRING ASM

$77.99

$

Usually ships in 3-6 days

0

Exmark 103-2047

FRONT FRAME SPRING ASM

$90.99

$

Usually ships in 3-6 days

0

60

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

Exmark 850337

Exmark Red Touch Up Spray Paint

$

$

Currently unavailable
