LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 260000 - 319999) (2001) Motion Control Levers Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

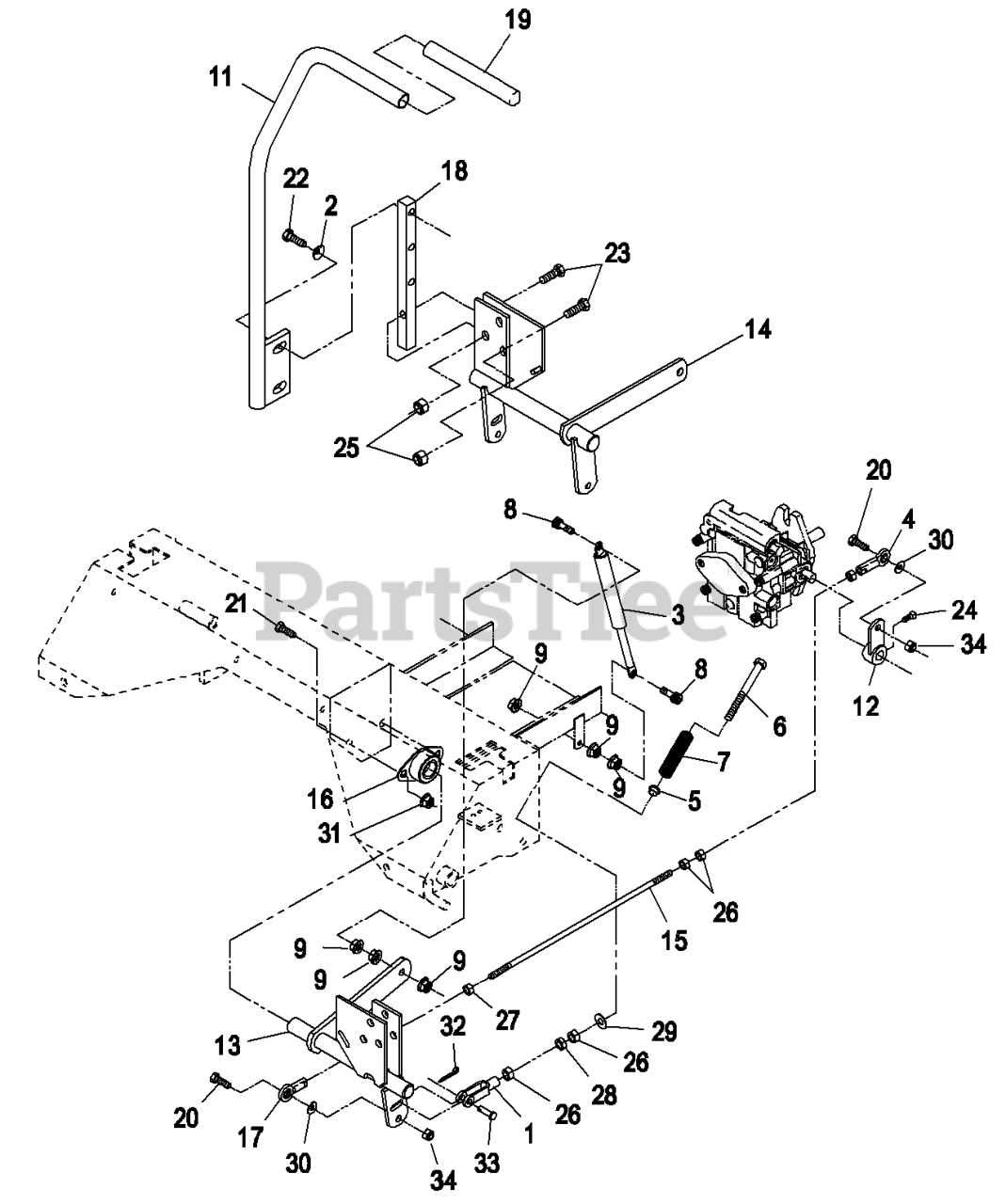

Motion Control Levers Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 1-523027

109-2339
(Superseded to 109-2339)

$80.99

$

In Stock, Qty 20+

0

4

Exmark 1-543017

BALLJOINT-RH

$21.99

$

In Stock, Qty 12

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, Qty 9

0

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, Qty 17

0

8

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 17

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-0631

LH LEVER ASM

Note: Not Illustrated. Components required for units with newer motion control assemblies (Identified by 3 holes in upper portion of motion control shaft (item 18)

$112.99

$

Usually ships in 3-6 days

0

Exmark 1-634258

ASM,LEVER/GRIP LH

Note: Components required for units with older motion control assemblies (Identified by 2 holes in upper portion of motion control shaft (item 18)

$

$

Not available

Exmark 103-0409-03

103-0631
(Superseded to 103-0631)

Note: Components required for units with newer motion control assemblies (Identified by 3 holes in upper portion of motion control shaft (item 18)

$112.99

$

Usually ships in 3-6 days

0

Exmark 1-632191-03

1-634258
(Superseded to 1-634258)

Note: Components required for units with older motion control assemblies (Identified by 2 holes in upper portion of motion control shaft (item 18)

$

$

Not available

11

Exmark 103-0632

RH LEVER ASM

Note: Components required for units with newer motion control assemblies (Identified by 3 holes in upper portion of motion control shaft (item 18)

$112.99

$

Usually ships in 3-6 days

0

Exmark 1-634259

ASM,LEVER/GRIP RH

Note: Components required for units with older motion control assemblies (Identified by 2 holes in upper portion of motion control shaft (item 18)

$

$

Not available

Exmark 103-0410-03

103-0632
(Superseded to 103-0632)

Note: Components required for units with newer motion control assemblies (Identified by 3 holes in upper portion of motion control shaft (item 18)

$112.99

$

Usually ships in 3-6 days

0

Exmark 1-632193-03

1-634259
(Superseded to 1-634259)

Note: Components required for units with older motion control assemblies (Identified by 2 holes in upper portion of motion control shaft (item 18)

$

$

Not available

12

Exmark 1-632208-03

1-632208
(Superseded to 1-632208)

$29.99

$

In Stock, Qty 20+

0

13

Exmark 1-642319

109-3902
(Superseded to 109-3902)

$

$

Not available

14

Exmark 1-642320

CONTROL-MOTION, RH

$188.99

$

Usually ships in 3-6 days

0

15

Exmark 1-633153

103-3064
(Superseded to 103-3064)

$49.99

$

In Stock, only 2 left!

0

16

Exmark 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 1 left!

0

17

Exmark 1-633152

BALLJOINT-LH

$21.99

$

In Stock, Qty 10

0

18

Exmark 103-0407

ARM-SHAFT, CONTROL

Note: Components required for units with newer motion control assemblies (Identified by 3 holes in upper portion of motion control shaft (item 18)

$33.99

$

Usually ships in 3-6 days

0

Exmark 1-633177

ARM-CONTROL, SHAFT

Note: Components required for units with older motion control assemblies (Identified by 2 holes in upper portion of motion control shaft (item 18)

$67.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

20

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

23

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews

$2.99

$

In Stock, Qty 16

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

28

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3272-5

PIN-COTTER

$1.99

$

In Stock, only 1 left!

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: .5 ml tube

$21.99

$

Usually ships in 3-6 days

0
