LZ26KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 26hp Kohler (SN: 320000 - 369999) (2002) Engine Deck Group (Kawasaki Liquid-Cooled) - Part 1 Parts Diagram

72" Lazer Z Zero-Turn Mower, 26hp Kohler

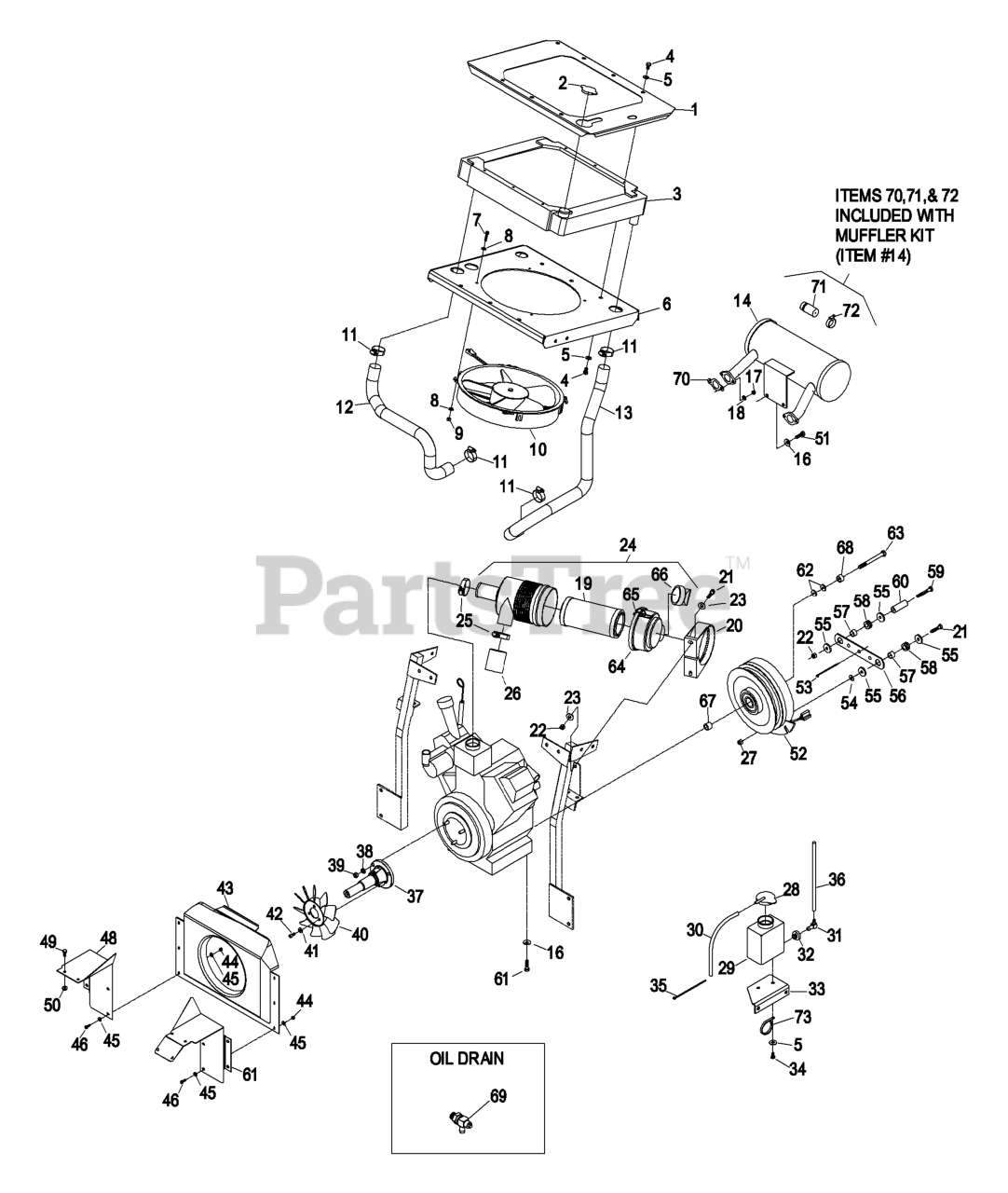

Engine Deck Group (Kawasaki Liquid-Cooled) - Part 1 Parts Diagram

  • Title

1

Exmark 1-633902-03

103-3342
(Superseded to 103-3342)

$

$

Not available

2

Exmark 1-643161

CAP-RADIATOR

$88.99

$

In Stock, only 3 left!

0

3

Exmark 103-1046

RADIATOR-MOUNT

$920.99

$

Usually ships in 3-6 days

0

4

Exmark 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-633888-03

103-3343
(Superseded to 103-3343)

$

$

Not available

7

Exmark 1-803067

SCREW

$1.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-633831

FAN

$652.99

$

Usually ships in 3-6 days

0

11

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 1 left!

0

12

Exmark 103-0074

HOSE-INLET, RADIATOR

$137.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0075

HOSE-OUTLET, RADIATOR

$111.99

$

Usually ships in 3-6 days

0

14

Exmark 103-1557

KIT,MUFFLER W/ARRESTOR

$

$

Not available

16

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

17

Exmark 33013-00

NUT-HEX

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

19

Exmark 93-2195

FILTER

$43.99

$

In Stock, Qty 6

0

20

Exmark 95-5806

BRACKET-MOUNTING

$31.99

$

Usually ships in 3-6 days

0

21

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 95-5805

AIR CLEANER ASM

$177.99

$

Usually ships in 3-6 days

0

25

Exmark 1-643009

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

26

Exmark 1-643084

HOSE-INLET, AIR

$

$

Not available

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-643164

CAP-TANK, OVERFLOW

$20.99

$

In Stock, only 2 left!

0

29

Exmark 1-643163

TANK-OVERFLOW

$102.99

$

Usually ships in 3-6 days

0

30

Exmark 1-643131

109-2669
(Superseded to 109-2669)

$13.99

$

In Stock, only 1 left!

0

31

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$44.99

$

Usually ships in 3-6 days

0

32

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

33

Exmark 1-643024-03

103-2603-03
(Superseded to 103-2603-03)

$

$

Not available

34

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

35

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 1-643129

DISCONTINUED

$

$

Not available

37

Exmark 1-633851

EXTENSION-CRANKSHAFT

$

$

Not available

38

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

39

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

40

Exmark 1-633869

FAN-PUMP, COOLING

$29.99

$

Usually ships in 3-6 days

0

41

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Exmark 1-809095

SCREW-HSH

$

$

Not available

43

Exmark 103-0098

SHROUD-FAN, HYD

$225.99

$

Usually ships in 3-6 days

0

44

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 103-0895-03

SHIELD-LH

$

$

Not available

48

Exmark 1-633794-03

1-644316
(Superseded to 1-644316)

$

$

Not available

49

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

50

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

51

Exmark 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

52

Exmark 103-1364

CLUTCH

$696.99

$

Usually ships in 3-6 days

0

53

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

54

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

56

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 1 left!

0

57

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

58

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 11

0

59

Exmark 322-38

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

60

Exmark 1-643008

SPACER-ANCHOR, CLUTCH

$16.99

$

Usually ships in 3-6 days

0

61

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

62

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

63

Exmark 33115-035

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

64

Exmark 94-3652

COVER ASM

$105.99

$

In Stock, only 2 left!

0

65

Exmark 1-643283

LATCH-CLEANER, AIR

$22.99

$

In Stock, only 2 left!

0

66

Exmark 87-9400

VALVE-VACUATOR

$13.99

$

In Stock, Qty 8

0

67

Exmark 103-0114

SPACER-CLUTCH

$36.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0152

KEEPER-CLUTCH

$13.99

$

In Stock, only 2 left!

0

69

Exmark 103-0161

VALVE, OIL DRAIN

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$71.99

$

Usually ships in 3-6 days

0

70

Exmark 103-1564

GASKET-EXHAUST

$

$

Not available

71

Exmark 103-1511

ARRESTOR-SPARK

$

$

Not available

72

Exmark 103-1512

CLAMP-MUFFLER

$

$

Not available

73

Exmark 103-0113

CLIP-LOOM

$

$

Not available

Replacement Engine Oil Filter

Note: Kawasaki Part No. 49065-2078

$

$

Not available
