LZ27DD604 - Exmark 60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 510000 - 539999) (2005) Hydraulic Group Parts Diagram

60" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

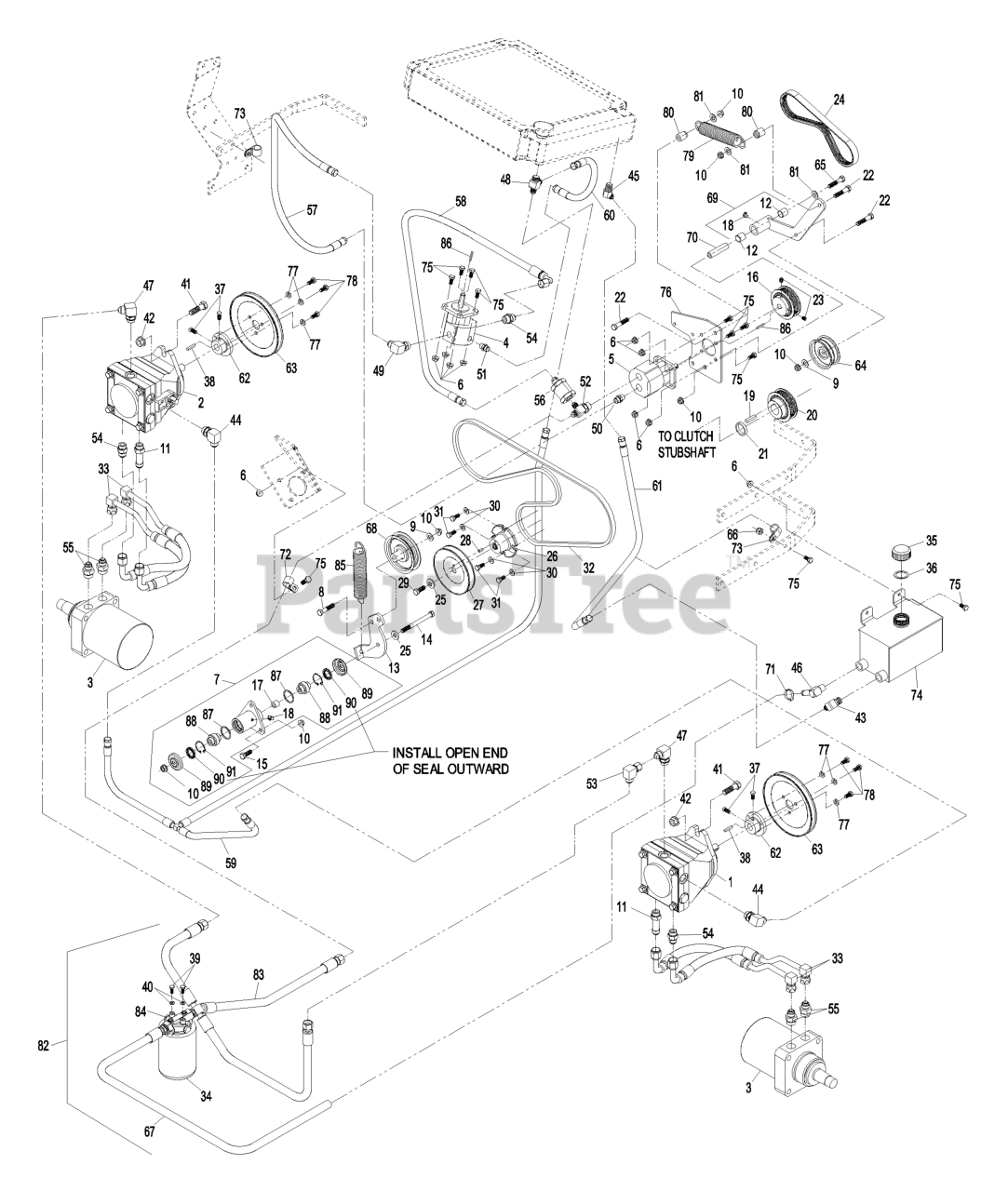

Hydraulic Group Parts Diagram

  • Title

1

Exmark 103-2978

PUMP-HYDRO, LH

$1609.99

$

Usually ships in 3-6 days

0

2

Exmark 103-2979

PUMP-HYDRO, RH

$1609.99

$

Usually ships in 3-6 days

0

Exmark 100-6110

OVERHAUL SEAL KIT

$94.99

$

In Stock, only 1 left!

0

Exmark 103-8439

INPUT BEARING KIT

$84.99

$

Usually ships in 3-6 days

0

Exmark 103-2670

THRUST BEARING KIT

$90.99

$

Usually ships in 3-6 days

0

Exmark 103-2668

127-3867
(Superseded to 127-3867)

$240.99

$

Usually ships in 3-6 days

0

Exmark 103-2667

100-6112
(Superseded to 100-6112)

$286.99

$

In Stock, only 1 left!

0

3

Exmark 103-2489

109-6553
(Superseded to 109-6553)

$1829.99

$

Usually ships in 3-6 days

0

Exmark 1-000099

103-6994
(Superseded to 103-6994)

$386.99

$

Usually ships in 3-6 days

0

Exmark 1-000139

Kit, Bearing

$

$

Not available

4

Exmark 103-7430

MOTOR-FAN, COOLING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) to fan motor and fan pump shafts next to the seals.

$1013.99

$

Usually ships in 3-6 days

0

Exmark 103-7434

KIT,FAN PUMP/MTR SHAFT SE

$

$

Not available

5

Exmark 103-7431

PUMP-FAN, COOLING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) to fan motor and fan pump shafts next to the seals.

$859.99

$

Usually ships in 3-6 days

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 103-6409

KIT,'04 XP PUMP IDLER

Note: 103-6409 kit includes components shown and (1) screw item 14 and (1) spring disc washer item 25.

$203.99

$

In Stock, only 1 left!

0

8

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

12

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

13

Exmark 103-4463-03

ARM-TIGHTENER, PUMP

$30.99

$

Usually ships in 3-6 days

0

14

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 5

0

15

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

16

Exmark 103-1338

SHEAVE-5 RIB

$166.99

$

Usually ships in 3-6 days

0

17

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, only 2 left!

0

18

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

19

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 2 left!

0

20

Exmark 103-1339

SHEAVE-5 RIB

$210.99

$

Usually ships in 3-6 days

0

21

Exmark 103-1422

SPACER-PUMP DRIVE, FAN

$8.49

$

Usually ships in 3-6 days

0

22

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3246-6

SCREW-SET, HSH

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$7.99

$

In Stock, only 2 left!

0

24

Exmark 103-5598

BELT,POLY-V K 25.38"
(Superseded to 103-5598-SL)

$31.99

$

In Stock, Qty 5

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

26

Exmark 103-1421

HUB-DRIVE, PUMP

$189.99

$

Usually ships in 3-6 days

0

27

Exmark 103-5164

SHEAVE-ENGINE

$

$

Not available

28

Exmark 103-1459

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

31

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 7

0

32

Exmark 103-2600

BELT,WRAPPED A-71.26
(Superseded to 103-2600-SL)

$64.99

$

In Stock, only 2 left!

0

33

Exmark 103-4679

HYD HOSE ASM

$

$

Not available

Exmark 103-4680

HYD HOSE ASM

$167.99

$

In Stock, only 1 left!

0

34

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$74.99

$

In Stock, Qty 19

0

35

Exmark 1-513167

CAP

$30.99

$

In Stock, only 2 left!

0

36

Exmark 1-523103

GASKET-CAP, TANK

$7.99

$

In Stock, only 2 left!

0

37

Exmark 1-803050

SCREW-SET

Note: Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.

$2.99

$

In Stock, Qty 5

0

38

Exmark 103-2739

KEY

$2.99

$

In Stock, Qty 13

0

39

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

41

Exmark 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

0

43

Exmark 103-1012

FITTING-ELBOW, 90 DEG

Note: Use Teflon pipe sealant on pipe threads in reservoir and cooler.

$

$

Not available

44

Exmark 103-1014

FITTING-ELBOW, 90 DEG

$43.99

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 17

0

45

Exmark 103-2151

FITTING-45 DEG

Note: Use Teflon pipe sealant on pipe threads in reservoir and cooler.

$

$

Not available

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

46

Exmark 103-2152

FITTING-90 DEG

Note: Use Teflon pipe sealant on pipe threads in reservoir and cooler.

$40.99

$

Usually ships in 3-6 days

0

47

Exmark 103-2153

FITTING-90 DEG

$53.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 17

0

48

Exmark 103-2154

FITTING-TEE

Note: Use Teflon pipe sealant on pipe threads in reservoir and cooler.

$

$

Not available

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

49

Exmark 103-2155

FITTING-90 DEG

$33.99

$

Usually ships in 3-6 days

0

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

50

Exmark 103-2156

FITTING-STRAIGHT

$45.99

$

In Stock, only 4 left!

0

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

51

Exmark 103-2157

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$3.49

$

Usually ships in 3-6 days

0

52

Exmark 103-2159

FITTING-TEE

$

$

Not available

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 17

0

53

Exmark 103-2315

FITTING-90 DEG

$54.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 7

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 17

0

55

Exmark 1-603991

FITTING-STRAIGHT

$23.99

$

In Stock, Qty 7

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 17

0

56

Exmark 103-3110

FILTER-IN LINE, 50 MICRON

$136.99

$

Usually ships in 3-6 days

0

57

Exmark 103-2148

AUXILLARY PUMP HOSE ASM

$104.99

$

Usually ships in 3-6 days

0

58

Exmark 1-323241

HOSE-PRESSURE, HIGH

$94.99

$

Usually ships in 3-6 days

0

59

Exmark 103-2172

CASE DRAIN HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

60

Exmark 103-2173

FAN CASE DRAIN HOSE ASM

$43.99

$

Usually ships in 3-6 days

0

61

Exmark 103-2174

TANK RETURN HOSE ASM

$56.99

$

Usually ships in 3-6 days

0

62

Exmark 103-1471

HUB-PUMP

$97.99

$

Usually ships in 3-6 days

0

63

Exmark 103-1472

SHEAVE-PUMP

$72.99

$

Usually ships in 3-6 days

0

64

Exmark 1-633167

SHEAVE-IDLER

$45.99

$

In Stock, Qty 20+

0

65

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, only 1 left!

0

66

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

67

Exmark 103-5121

FILTER INLET HOSE ASM

$133.99

$

Usually ships in 3-6 days

0

68

Exmark 103-4464

IDLER-PUMP

$70.99

$

Usually ships in 3-6 days

0

69

Exmark 103-3349

ASM,IDLER ARM W/DECALS

$164.99

$

Usually ships in 3-6 days

0

70

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 14

0

71

Exmark 103-2104

103-2340
(Superseded to 103-2340)

$

$

Not available

72

Exmark 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

73

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

74

Exmark 103-5859

KIT,HYD TANK W/DECALS

$

$

Not available

75

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

76

Exmark 103-1299-03

PLATE-MATING, FAN PUMP

$

$

Not available

77

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

78

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

79

Exmark 1-603414

SPRING-EXTENSION

$23.99

$

In Stock, only 2 left!

0

80

Exmark 103-1575

SPACER-SPRING, FAN PUMP

$15.99

$

Usually ships in 3-6 days

0

81

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

82

Exmark 103-5120

CHARGE HOSE ASM

Note: Charge hose assembly includes items 67, 83, & 84 only.

$

$

Not available

83

Exmark 103-2269

PUMP INLET HOSE ASM

$295.99

$

Usually ships in 3-6 days

0

84

Exmark 103-2259

HEAD-FILTER

$

$

Not available

85

Exmark 103-1767

SPRING-EXTENSION

$19.99

$

In Stock, only 1 left!

0

86

Exmark 32150-1

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

87

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

88

Exmark 103-3504

BEARING-SPHERICAL

$27.99

$

In Stock, Qty 17

0

89

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

90

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 15

0

91

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0
