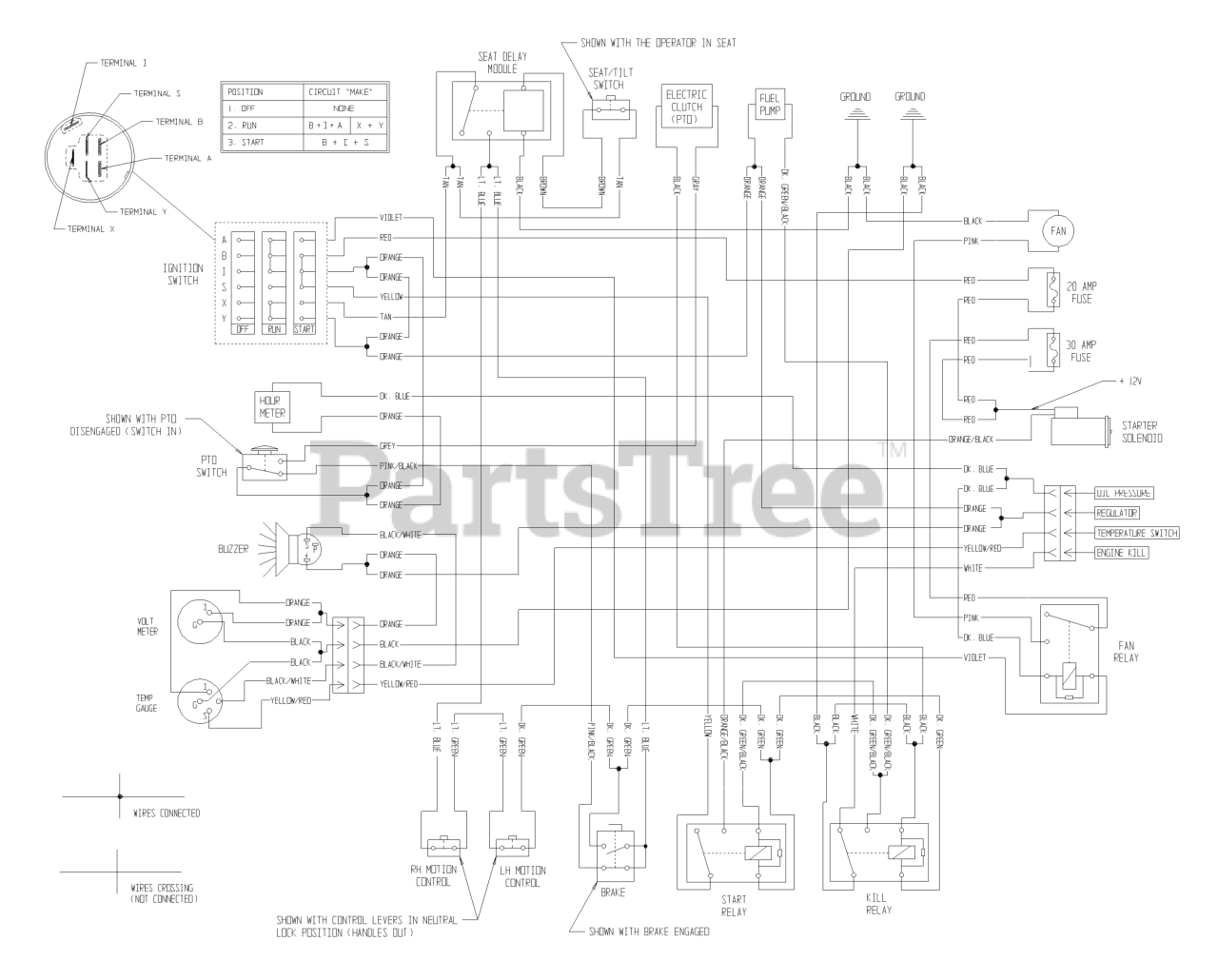

LZ27KC524 - Exmark 52" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 370000 - 439999) (2003) Kawasaki 27 HP Liquid-Cooled Electrical Logic Schematic Parts Diagram

52" Lazer Z Zero-Turn Mower, 27hp Kohler
