LZ27KC724 - Exmark 72" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 440000 - 509999) (2004) Deck Group 52" Parts Diagram

72" Lazer Z Zero-Turn Mower, 27hp Kohler

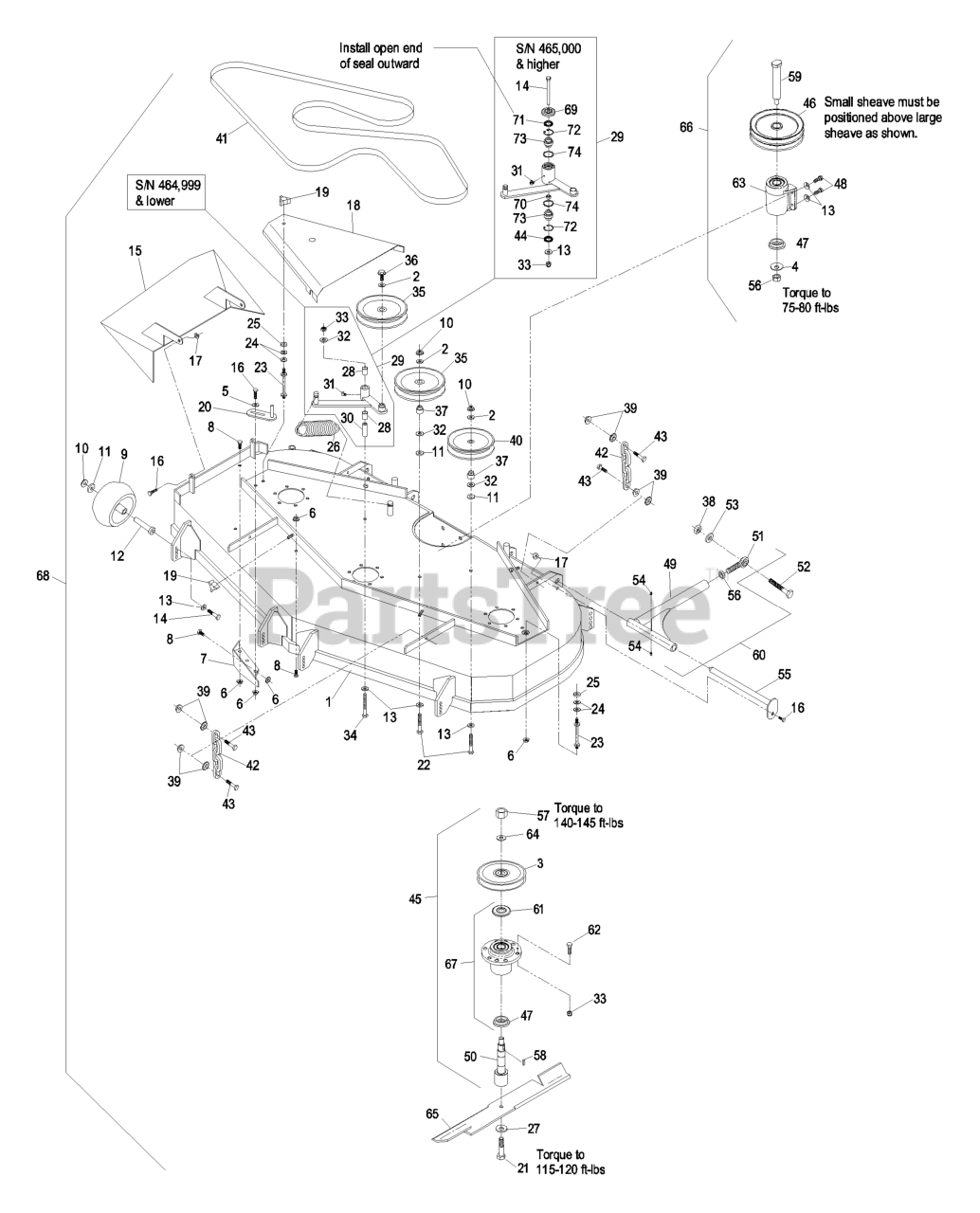

Deck Group 52" Parts Diagram

  • Title

1

Exmark 103-3183

ASM,DECK W/DECALS LZ524

$

$

Not available

2

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

$81.99

$

In Stock, Qty 7

0

4

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

0

8

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, bushing, & mounting hardware.

$25.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

Note: This component is required for units with 464,999 and lower.

$5.49

$

In Stock, Qty 20+

0

Exmark 98-5961

SCREW-HH

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-5870-01

WLD,CHUTE DICHARGE 524

$152.99

$

Usually ships in 3-6 days

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-633357-01

SHIELD,BELT 52

$110.99

$

Usually ships in 3-6 days

0

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

21

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$29.99

$

In Stock, Qty 20+

0

27

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

28

Exmark 103-4681

SLEEVE-BEARING

Note: This component is required for units with 464,999 and lower.

$5.49

$

In Stock, Qty 20+

0

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: 103-5693 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

$162.99

$

In Stock, Qty 8

0

30

Exmark 1-603044

BUSHING

Note: This component is required for units with 464,999 and lower.

$15.99

$

In Stock, Qty 20+

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 464,999 and lower.

$1.99

$

In Stock, Qty 20+

0

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 465,000 and higher.

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Exmark 323-13

SCREW-HH

Note: This component is required for units with 464,999 and lower.

$3.99

$

In Stock, Qty 20+

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$66.99

$

In Stock, Qty 20+

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

39

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

40

Exmark 1-603805

PULLEY-IDLER

$58.99

$

In Stock, Qty 20+

0

41

Exmark 1-633366

BELT,BLADE DRIVE 52
(Superseded to 1-633366-SL)

$123.99

$

In Stock, Qty 11

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

0

43

Exmark 103-1898

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

44

Exmark 103-3505

SEAL-LIP, DOUBLE

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, Qty 20+

0

45

Exmark 103-3200

103-8075
(Superseded to 103-8075)

Note: Complete cutter housing assembly also includes items #27 & #21.

$568.99

$

Usually ships in 3-6 days

0

46

Exmark 103-3182

SHEAVE,JACKSHAFT - DBL

$182.99

$

Usually ships in 3-6 days

0

47

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

0

48

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-1072-01

109-1181
(Superseded to 109-1181)

$120.99

$

In Stock, Qty 20+

0

50

Exmark 103-2785

SPINDLE,SHORT

$140.99

$

In Stock, only 1 left!

0

51

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, Qty 20+

0

52

Exmark 327-11

SCREW-HH

$13.99

$

In Stock, Qty 12

0

53

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

54

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

55

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 20+

0

56

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

57

Exmark 3217-46

NUT-HH

$13.99

$

In Stock, only 2 left!

0

58

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 5

0

59

Exmark 1-643393

JACKSHAFT

$35.99

$

In Stock, Qty 20+

0

60

Exmark 103-1081

STRUT ASM

$292.99

$

In Stock, only 2 left!

0

61

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 20+

0

62

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

63

Exmark 103-2544

103-9746
(Superseded to 103-9746)

$279.99

$

In Stock, Qty 5

0

64

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

65

Exmark 103-2528

103-6584-S
(Superseded to 103-6584-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-2508

103-6580-S
(Superseded to 103-6580-S)

$36.99

$

In Stock, Qty 13

0

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

66

Exmark 103-3248

KIT,JACKSHAFT 52-3750

$689.99

$

In Stock, only 1 left!

0

67

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$282.99

$

In Stock, Qty 13

0

68

Exmark 103-3257

Asm, Deck Complete

Note: Complete deck assembly excludes items #39, #42, #43, and #60 and includes mule drive belt from page 18.

$

$

Currently unavailable

69

Exmark 103-2916

GUARD-TOP

Note: This component is required for units with 465,000 and higher.

$2.99

$

In Stock, Qty 6

0

70

Exmark 103-5677

SPACER

Note: This component is required for units with 465,000 and higher.

$2.99

$

In Stock, Qty 8

0

71

Exmark 103-3506

SEAL-LIP, SINGLE

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, Qty 7

0

72

Exmark 32120-10

RING-SNAP

Note: This component is required for units with 465,000 and higher.

$1.49

$

In Stock, Qty 19

0

73

Exmark 103-3504

BEARING-SPHERICAL

Note: This component is required for units with 465,000 and higher.

$26.99

$

In Stock, Qty 20+

0

74

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark 103-3168

116-9981
(Superseded to 116-9981)

$55.99

$

In Stock, Qty 20+

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0
