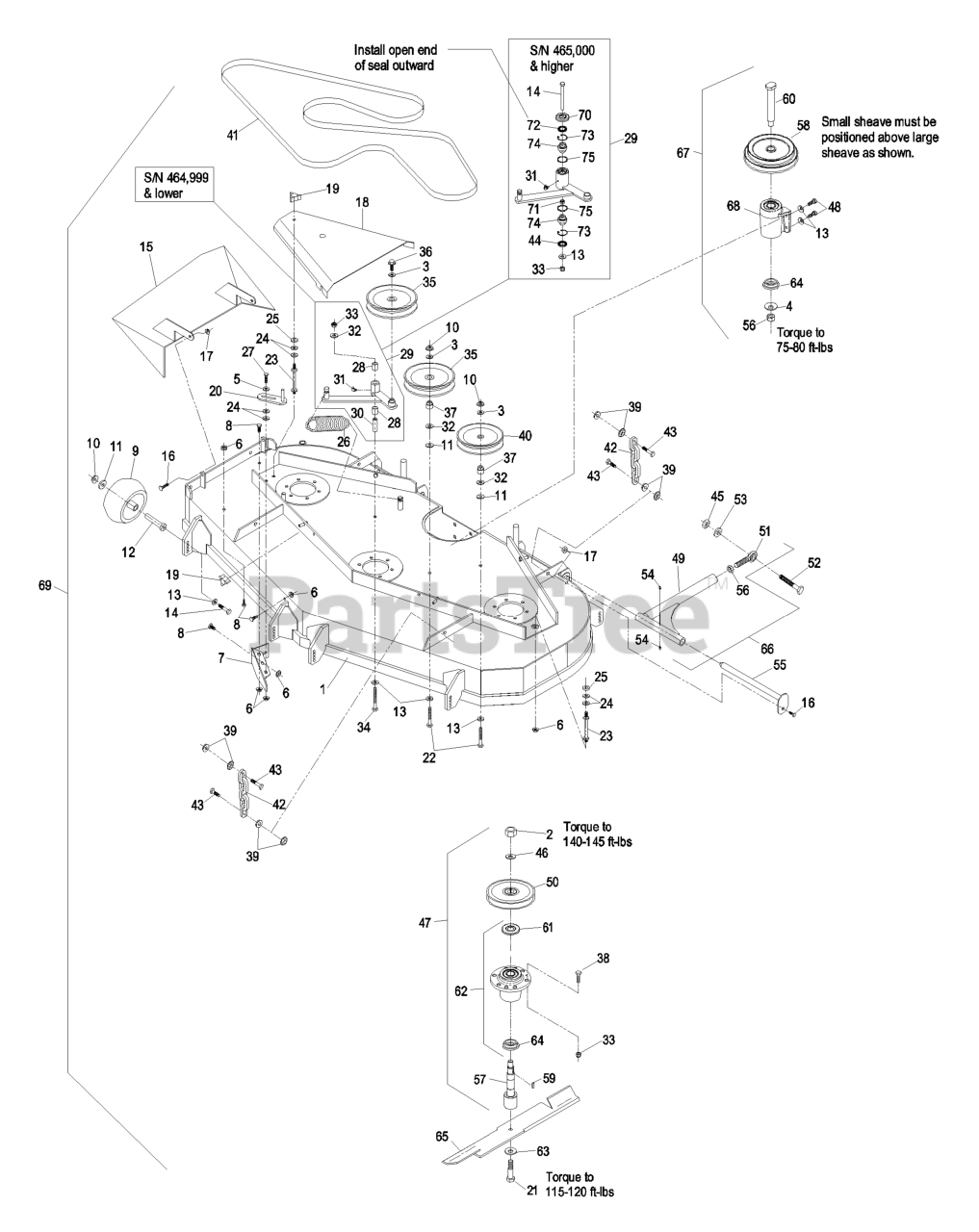

Exmark LZ27LKA724 - Exmark 72" Lazer Z Zero-Turn Mower, 27hp Kawasaki (SN: 440000 - 509999) (2004) Deck Group 60" Parts Lookup with Diagrams

1

Exmark 103-3184

ASM,DECK W/DECALS LZ604

$

Not available 

2

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

8

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, bushing, & mounting hardware.

$25.99

$

In Stock, Qty 20+

10

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

14

Exmark 98-5961

SCREW-HH

Note: This component is required for units with 464,999 and lower.

$5.49

$

In Stock, Qty 20+

Exmark 98-5961

SCREW-HH

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, Qty 20+

15

Exmark 103-5830-01

WLD,CHUTE LZ604

$177.99

$

Usually ships in 3-6 days

16

Exmark 1-633084-01

SHIELD,BELT

$113.99

$

In Stock, only 4 left!

19

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

24

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$29.99

$

In Stock, Qty 20+

27

Exmark 103-4681

SLEEVE-BEARING

Note: This component is required for units with 464,999 and lower.

$5.49

$

In Stock, Qty 20+

29

Exmark 103-5693

KIT,DECK IDLER LZ/XP

Note: 103-5693 kit includes components shown for S/N 465,000 and higher and services all serial numbers.

$162.99

$

In Stock, Qty 8

30

Exmark 1-603044

BUSHING

Note: This component is required for units with 464,999 and lower.

$15.99

$

In Stock, Qty 20+

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

32

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 464,999 and lower.

$1.99

$

In Stock, Qty 20+

Exmark 3256-4

WASHER-FLAT

Note: This component is required for units with 465,000 and higher.

$1.99

$

In Stock, Qty 20+

33

Exmark 323-13

SCREW-HH

Note: This component is required for units with 464,999 and lower.

$3.99

$

In Stock, Qty 20+

35

Exmark 1-633109

126-7685

(Superseded to 126-7685) 

$66.99

$

In Stock, Qty 20+

36

Exmark 1-633127

BELT,BLADE DRIVE

(Superseded to 1-633127-SL) 

$133.99

$

In Stock, Qty 20+

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

43

Exmark 103-3505

SEAL-LIP, DOUBLE

Note: This component is required for units with 465,000 and higher.

$5.49

$

In Stock, only 1 left!

45

Exmark 103-3200

103-8075

(Superseded to 103-8075) 

Note: Complete cutter housing assembly also includes items #63 & #21.

$568.99

$

Usually ships in 3-6 days

48

Exmark 103-1072-01

109-1181

(Superseded to 109-1181) 

$120.99

$

In Stock, Qty 20+

50

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$81.99

$

In Stock, Qty 7

51

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, Qty 20+

52

Exmark 327-11

SCREW-HH

$13.99

$

In Stock, Qty 12

53

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

54

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

55

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 20+

56

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

57

Exmark 103-2785

SPINDLE,SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$140.99

$

In Stock, only 1 left!

58

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$120.99

$

In Stock, Qty 17

59

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 5

60

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$35.99

$

In Stock, Qty 20+

61

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$5.49

$

In Stock, Qty 19

62

Exmark 103-2547

103-8280

(Superseded to 103-8280) 

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$282.99

$

In Stock, Qty 12

63

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

64

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, Qty 5

65

Exmark 103-2530

103-2530-S

(Superseded to 103-2530-S) 

$36.99

$

In Stock, Qty 20+

Exmark 103-2510

103-2510-S

(Superseded to 103-2510-S) 

$41.99

$

In Stock, Qty 11

Exmark 103-0301

103-0301-S

(Superseded to 103-0301-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

$40.99

$

In Stock, Qty 14

Exmark 103-1580

103-1580-S

(Superseded to 103-1580-S) 

$38.99

$

In Stock, Qty 14

66

Exmark 103-1081

STRUT ASM

$292.99

$

In Stock, only 2 left!

67

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$516.99

$

In Stock, only 1 left!

68

Exmark 103-2544

103-9746

(Superseded to 103-9746) 

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antisi

$279.99

$

In Stock, Qty 5
