LZ31DG604 - Exmark 60" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 260000 - 319999) (2001) 72" Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 31hp Daihatsu

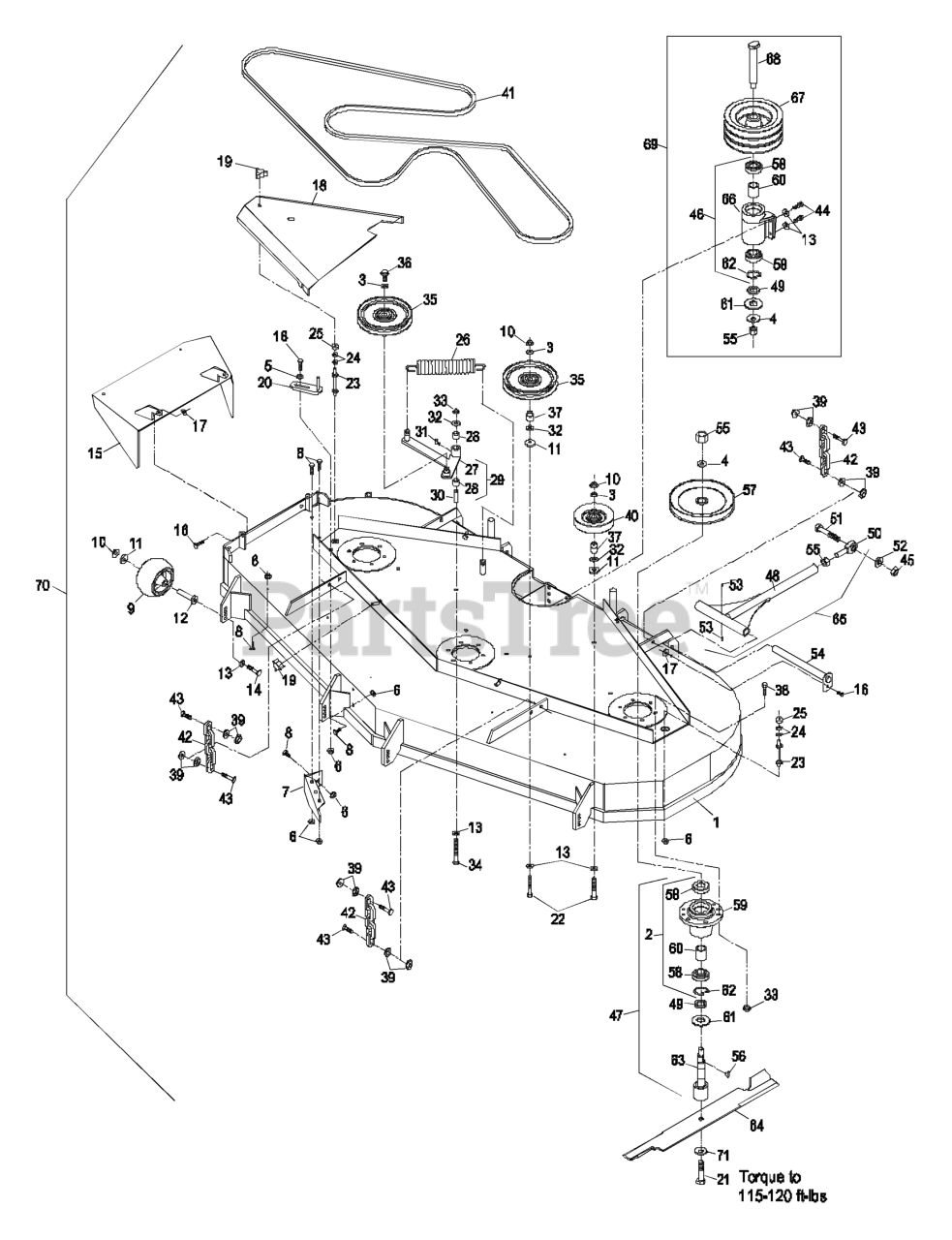

72" Deck Group Parts Diagram

  • Title

1

Exmark 103-0996-01

103-1591
(Superseded to 103-1591)

$

$

Not available

Exmark 103-1591

ASM,DECK W/DECALS LZ/XP72

$

$

Not available

2

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$55.99

$

In Stock, only 2 left!

0

8

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

15

Exmark 1-642071-01

WLD,CHUTE 72

$203.99

$

Usually ships in 3-6 days

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-643076-01

SHIELD,BELT RH

$151.99

$

Usually ships in 3-6 days

0

Exmark 1-643075-01

SHIELD,BELT LH

$162.99

$

In Stock, only 3 left!

0

19

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

21

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, only 2 left!

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 13

0

27

Exmark 1-632119-01

103-5693
(Superseded to 103-5693)

$177.99

$

In Stock, only 2 left!

0

28

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

29

Exmark 1-634244

103-5693
(Superseded to 103-5693)

$177.99

$

In Stock, only 2 left!

0

30

Exmark 1-603044

BUSHING

$15.99

$

In Stock, only 4 left!

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$66.99

$

In Stock, Qty 13

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

40

Exmark 1-603805

PULLEY-IDLER

$64.99

$

In Stock, Qty 6

0

41

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$234.99

$

In Stock, only 2 left!

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 10

0

43

Exmark 1-800811

SCREW-CAP, HH

$12.99

$

In Stock, only 3 left!

0

44

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

45

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

46

Exmark 103-1192

103-2571
(Superseded to 103-2571)

$380.99

$

Usually ships in 3-6 days

0

47

Exmark 1-644092

SPINDLE HSG ASSYCOMP72

Note: Cutter housing complete includes sheave, washer, nut blade bolt & disc spring washer.

$645.99

$

In Stock, only 1 left!

0

48

Exmark 103-0100-01

103-0840
(Superseded to 103-0840)

$414.99

$

In Stock, only 1 left!

0

49

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 5

0

50

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, only 2 left!

0

51

Exmark 327-28

SCREW-HH

$19.99

$

In Stock, only 2 left!

0

52

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 14

0

55

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

56

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

57

Exmark 1-643269

SHEAVE,BLADE DRIVE7.5EOD

Note: Use antiseize on bore of sheaves and bearings.

$134.99

$

Usually ships in 3-6 days

0

58

Exmark 1-513016

BEARING

Note: Use antiseize on bore of sheaves and bearings.

$90.99

$

In Stock, Qty 20+

0

59

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

60

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 7

0

61

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

0

62

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, only 2 left!

0

63

Exmark 103-0584

103-2532
(Superseded to 103-2532)

$155.99

$

In Stock, only 1 left!

0

64

Exmark 1-643006

103-2531-S
(Superseded to 103-2531-S)

$52.99

$

In Stock, only 4 left!

0

Exmark 1-643429

103-1581-S
(Superseded to 103-1581-S)

$54.99

$

In Stock, Qty 17

0

Exmark 1-643428

103-2511-S
(Superseded to 103-2511-S)

$

$

Not available

Exmark 1-643097

103-2521-S
(Superseded to 103-2521-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK724

$51.99

$

In Stock, Qty 15

0

Exmark 103-1581

103-1581-S
(Superseded to 103-1581-S)

$54.99

$

In Stock, Qty 17

0

65

Exmark 103-0840

STRUT WLDMT S/A

$414.99

$

In Stock, only 1 left!

0

66

Exmark 103-0280

103-9746
(Superseded to 103-9746)

$279.99

$

In Stock, only 2 left!

0

67

Exmark 103-0924

103-5382
(Superseded to 103-5382)

Note: Use antiseize on bore of sheaves and bearings.

$918.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0926

JACKSHAFT,LAZER XP

$

$

Not available

69

Exmark 103-0929

ASM,JACKSHAFT

$1179.99

$

Usually ships in 3-6 days

0

70

Exmark 103-1590

Complete Deck Assy

$

$

Currently unavailable

71

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 10

0

Exmark MK724

Mulch Kit

$

$

Currently unavailable
