LZ31DG724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 320000 - 369999) (2002) Mower Deck Cutter Housings Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Daihatsu

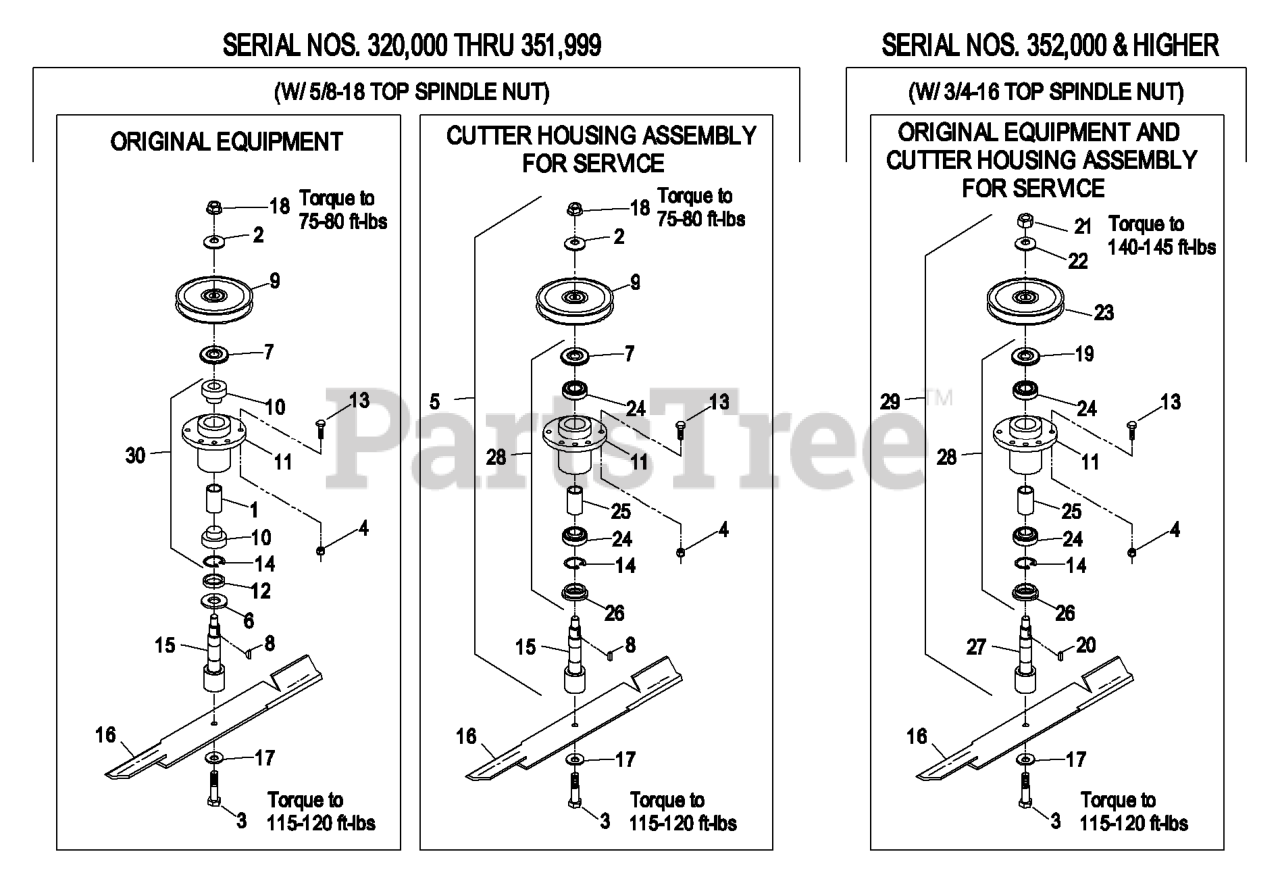

Mower Deck Cutter Housings Parts Diagram

  • Title

1

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 8

0

2

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

3

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

4

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Exmark 103-1140

ASM,SPINDLE HSG COMPLETE

Note: Complete cutter housings also include Items 3 & 17.

$682.99

$

Usually ships in 3-6 days

0

Exmark 1-644092

SPINDLE HSG ASSYCOMP72

Note: Complete cutter housings also include Items 3 & 17.

$632.99

$

In Stock, only 1 left!

0

6

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

0

7

Exmark 103-1331

GUARD,BEARING TOP .880

$6.99

$

In Stock, only 1 left!

0

8

Exmark 3257-32

KEY-WOODRUFF

Note: This component required if keyway is for a woodruff key, S/N 330,786 and lower.

$2.99

$

In Stock, Qty 20+

0

Exmark 10-8040

KEY-SQUARE

Note: This component required if keyway is for a square key, S/N 330,787 - 351,999.

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-633701

SHEAVE,BLADE DRIVE

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$86.99

$

Usually ships in 3-6 days

0

Exmark 1-643269

SHEAVE,BLADE DRIVE7.5EOD

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$123.99

$

Usually ships in 3-6 days

0

10

Exmark 1-513016

BEARING

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$86.99

$

In Stock, Qty 20+

0

11

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$282.99

$

In Stock, Qty 12

0

12

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 10

0

13

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

14

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-0584

103-2532
(Superseded to 103-2532)

Note: This component required if keyway is for a woodruff key, S/N 330,786 and lower. Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$152.99

$

In Stock, only 2 left!

0

Exmark 103-2326

SPINDLE,SHORT

Note: This component required if keyway is for a square key, S/N 330,787 - 351,999. Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$141.99

$

Usually ships in 3-6 days

0

16

Exmark 103-2530

103-2530-S
(Superseded to 103-2530-S)

$36.99

$

In Stock, Qty 20+

0

Exmark 103-2510

103-2510-S
(Superseded to 103-2510-S)

$41.99

$

In Stock, Qty 11

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604, or MK724

$40.99

$

In Stock, Qty 14

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$38.99

$

In Stock, Qty 14

0

Exmark 103-2531

103-2531-S
(Superseded to 103-2531-S)

$47.99

$

In Stock, Qty 13

0

Exmark 103-2511

103-2511-S
(Superseded to 103-2511-S)

$46.99

$

Usually ships in 3-6 days

0

Exmark 103-2521

103-2521-S
(Superseded to 103-2521-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604, or MK724

$46.99

$

In Stock, Qty 18

0

Exmark 103-1581

103-1581-S
(Superseded to 103-1581-S)

$49.99

$

In Stock, Qty 17

0

17

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

18

Exmark 32128-58

NUT FLANGE

$2.49

$

In Stock, only 2 left!

0

19

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 19

0

20

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 5

0

21

Exmark 3217-46

NUT-HH

$13.99

$

In Stock, only 2 left!

0

22

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

23

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$81.99

$

In Stock, Qty 7

0

Exmark 103-2795

SHEAVE,BLADE DRIVE 7.5

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$118.99

$

Usually ships in 3-6 days

0

24

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$62.99

$

In Stock, Qty 8

0

25

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

0

26

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, Qty 5

0

27

Exmark 103-2785

SPINDLE,SHORT

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves. DO NOT use a copper or nickel based antisieze.

$140.99

$

In Stock, only 1 left!

0

28

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$282.99

$

In Stock, Qty 12

0

29

Exmark 103-3200

103-8075
(Superseded to 103-8075)

Note: Complete cutter housings also include Items 3 & 17.

$568.99

$

Usually ships in 3-6 days

0

Exmark 103-3206

103-8323
(Superseded to 103-8323)

Note: Complete cutter housings also include Items 3 & 17.

$615.99

$

Usually ships in 3-6 days

0

30

Housing W/Ring,Spacer,& Brg

Note: This assembly is now serviced by kit number P/N 103-2547.

$

$

Not available
