LZ31DG724 - Exmark 72" Lazer Z Zero-Turn Mower, 31hp Daihatsu (SN: 370000 - 439999) (2003) Common Engine Deck Grop Parts Diagram

72" Lazer Z Zero-Turn Mower, 31hp Daihatsu

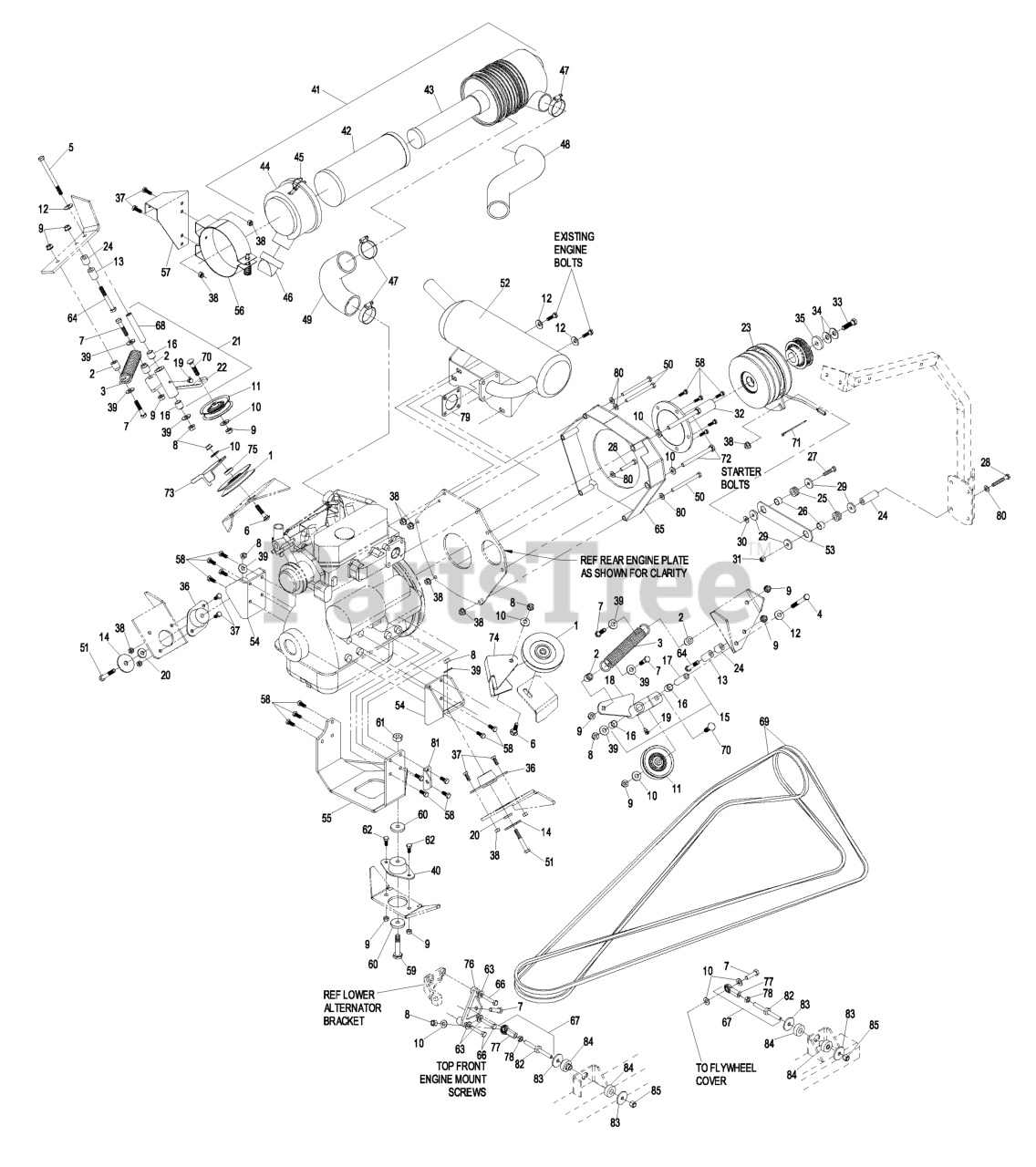

Common Engine Deck Grop Parts Diagram

  • Title

1

Exmark 103-0984

SHEAVE

$69.99

$

In Stock, only 4 left!

0

2

Exmark 103-1503

SPACER-TIGHTENER, BELT

$13.99

$

In Stock, only 1 left!

0

3

Exmark 103-1767

SPRING-EXTENSION

$19.99

$

In Stock, Qty 5

0

4

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 16

0

5

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

6

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

7

Exmark 323-8

SCREW-HH

Note: Use Prolock, Nut type (Part No. 1-840022) on screws threaded into block, and rear A-T link to Rear Engine Bracket screw.

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 103-0983

SHEAVE

$62.99

$

In Stock, Qty 5

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

13

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

15

Exmark 103-4178

103-5696
(Superseded to 103-5696)

$164.99

$

Usually ships in 3-6 days

0

16

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

17

Exmark 103-0919

BUSHING-TIGHTENER, PIVOT

$20.99

$

Usually ships in 3-6 days

0

18

Exmark 103-4165-03

103-5696
(Superseded to 103-5696)

$164.99

$

Usually ships in 3-6 days

0

19

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

20

Exmark 66-6480

WASHER

$2.49

$

Usually ships in 3-6 days

0

21

Exmark 103-0986

103-5697
(Superseded to 103-5697)

$185.99

$

Usually ships in 3-6 days

0

22

Exmark 103-0204-03

103-5697
(Superseded to 103-5697)

$185.99

$

Usually ships in 3-6 days

0

23

Exmark 103-0083

109-6627
(Superseded to 109-6627)

$954.99

$

In Stock, only 1 left!

0

24

Exmark 103-0193

SPACER-STRAP, CLUTCH

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 14

0

26

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

27

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 9

0

29

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Exmark 103-0286

SHAFT-STUB

$403.99

$

Usually ships in 3-6 days

0

33

Exmark 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

34

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

35

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

36

Exmark 103-2613

ISOLATOR-SIDE

$94.99

$

In Stock, only 1 left!

0

37

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

40

Exmark 103-1022

ISOLATOR-REAR

$105.99

$

Usually ships in 3-6 days

0

41

Exmark 103-1057

103-5178
(Superseded to 103-5178)

$319.99

$

In Stock, only 1 left!

0

42

Exmark 103-1327

FILTER-AIR

$36.99

$

In Stock, Qty 6

0

43

Exmark 103-1326

FILTER-AIR, SAFETY

$38.99

$

In Stock, Qty 18

0

44

Exmark 103-1060

COVER-FILTER, AIR

$242.99

$

Usually ships in 3-6 days

0

45

Exmark 1-643283

LATCH-CLEANER, AIR

$22.99

$

In Stock, only 2 left!

0

46

Exmark 87-9400

VALVE-VACUATOR

$13.99

$

In Stock, Qty 8

0

47

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

48

Exmark 103-0920

HOSE,PLENUM TO AIR CLNR

$

$

Not available

49

Exmark 103-0921

HOSE

$78.99

$

Usually ships in 3-6 days

0

50

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, Qty 18

0

51

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

52

Exmark 103-2592

MUFFLER KIT

$727.99

$

Usually ships in 3-6 days

0

53

Exmark 103-0192-03

STRAP-CLUTCH / BRAKE

$18.99

$

Usually ships in 3-6 days

0

54

Exmark 103-0839-03

LH AND RH ENGINE MOUNT AS

$85.99

$

Usually ships in 3-6 days

0

55

Exmark 103-0870-03

REAR ENGINE MOUNT ASM

$233.99

$

Usually ships in 3-6 days

0

56

Exmark 103-1058

BRACKET-FILTER, AIR

$117.99

$

Usually ships in 3-6 days

0

57

Exmark 103-0953-03

MOUNT-CLEANER, AIR

$

$

Not available

58

Exmark 33114-020

SCREW-HH

Note: Use Prolock, Nut type (Part No. 1-840022) on screws threaded into block, and rear A-T link to Rear Engine Bracket screw.

$0.99

$

In Stock, Qty 13

0

59

Exmark 325-10

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

60

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 15

0

61

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

62

Exmark 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

63

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

64

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

65

Exmark 103-3573-03

COVER-FLYWHEEL

$

$

Not available

66

Exmark 33114-045

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

67

Exmark 103-3745

BALL JOINT LINK ASM

$109.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0040

BUSHING-TIGHTENER, PIVOT

$19.99

$

In Stock, only 4 left!

0

69

Exmark 103-0881

BELT-V
(Superseded to 103-0881-SL)

$84.99

$

In Stock, Qty 10

0

70

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

71

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

72

Exmark 56-2150

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

73

Exmark 103-4039-03

GUARD-BELT SHEAVE, RH

$79.99

$

Usually ships in 3-6 days

0

74

Exmark 103-4011-03

GUARD-BELT SHEAVE, LH

$110.99

$

Usually ships in 3-6 days

0

75

Exmark 103-3186

SPACER-BRACKET, GUIDE

$24.99

$

In Stock, only 3 left!

0

76

Exmark 103-3556-03

BRACKET-ENGINE, FRONT

$

$

Not available

77

Exmark 103-0608

JOINT-BALL, END

$35.99

$

In Stock, only 1 left!

0

78

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

79

Exmark 103-1385

GASKET-MUFFLER

$89.99

$

Usually ships in 3-6 days

0

80

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

81

Exmark 103-3908

BRACKET-GROUND

$

$

Not available

82

Exmark 103-3567

LINK,REAR A-T AXIAL

$28.99

$

Usually ships in 3-6 days

0

83

Exmark 93-6099

WASHER

$4.49

$

Usually ships in 3-6 days

0

84

Exmark 103-3568

ISOLATOR-LINK

$56.99

$

Usually ships in 3-6 days

0

85

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

Usually ships in 3-6 days

0
