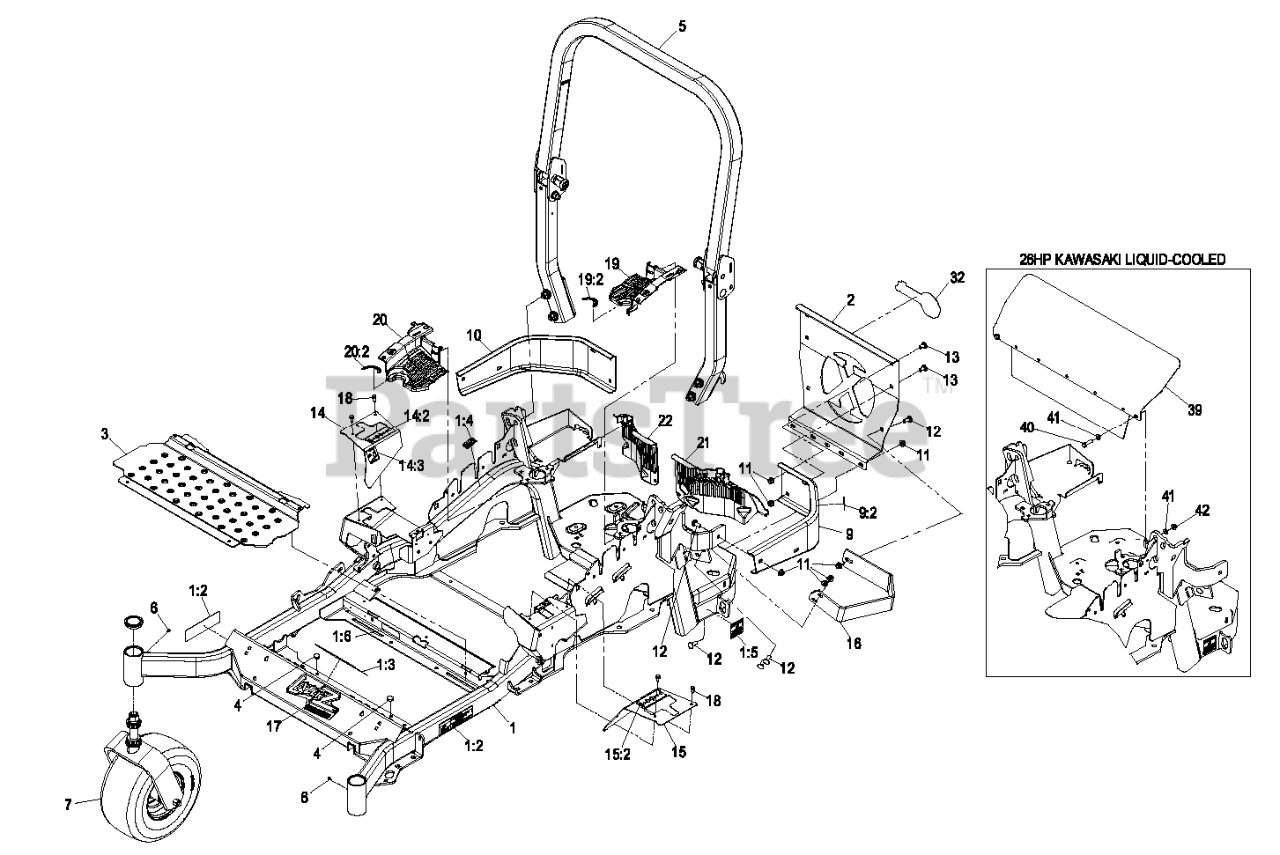

LZAS26LKA604 - Exmark 60" Lazer Z AS Zero-Turn Mower, 26hp Kawasaki (SN: 790000 - 849999) (2009) Mainframe Group Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 26hp Kawasaki

Mainframe Group Parts Diagram

  • Title

1

Exmark 109-7345

MAIN FRAME ASM

$3992.99

$

Usually ships in 3-6 days

0

Exmark 109-7347

116-3573
(Superseded to 116-3573)

$

$

Not available

Exmark 109-7349

116-3574
(Superseded to 116-3574)

$

$

Not available

1:2

Exmark 109-9477

DECAL-WARNING

$8.99

$

In Stock, only 1 left!

0

1:3

Exmark 107-2112

DECAL-WARNING

$18.99

$

In Stock, only 4 left!

0

1:4

Exmark 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-0205

DECAL-BELT DRIVE

$7.99

$

In Stock, only 1 left!

0

1:6

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0024-01

116-8898-01
(Superseded to 116-8898-01)

$106.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

5

Exmark 116-0230

ASM,ROPS SERVICE EXMARK

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

7

Asm, Caster Wheel (72")

Note: See Caster Wheel Assembly - 48" & 52" & Caster Wheel Assembly - 60" & 72"

$

$

Not available

Asm, Caster Wheel (48", 52" & 60")

Note: See Caster Wheel Assembly - 48" & 52" & Caster Wheel Assembly - 60" & 72"

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-0579

116-5899
(Superseded to 116-5899)

$47.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, Qty 5

0

14:3

Exmark 109-7929

116-5944
(Superseded to 116-5944)

$13.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, Qty 5

0

16

Exmark 116-0043-03

126-2067-03
(Superseded to 126-2067-03)

$58.99

$

Usually ships in 3-6 days

0

17

Exmark 116-0026

DECAL,LAZER AS LOGO

$15.99

$

In Stock, only 3 left!

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$83.99

$

In Stock, only 4 left!

0

19:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$83.99

$

In Stock, only 1 left!

0

20:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9057

GUARD-HYDRO, REAR (LH)

$22.99

$

In Stock, Qty 6

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$23.99

$

In Stock, Qty 9

0

Exmark 116-0669

GUARD,HYDRO REAR RH TRIMM

$

$

Not available

32

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 15

0

39

Exmark 116-1397

ASM,AIR DEFLECTOR

$

$

Not available

40

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

42

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
