LZC 6130 (965879801) - Husqvarna 61" Zero-Turn Mower (2009-06) MOWER DECK / CUTTING DECK Parts Diagram

61" Zero-Turn Mower

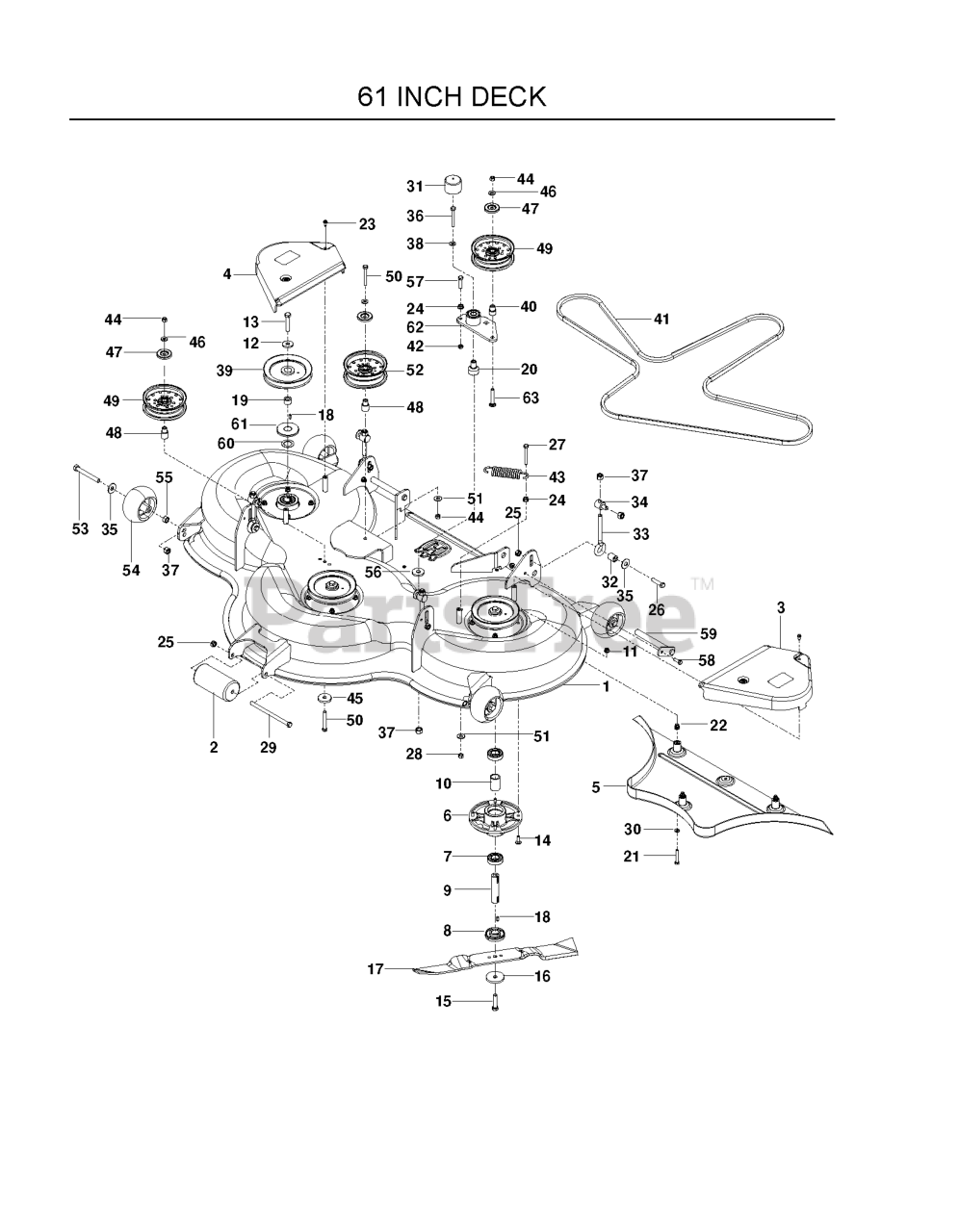

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

21

Husqvarna 539132494

HCS M8 X 1.25 X 50 GR8.8 ZD

$

$

Not available

15

Husqvarna 539132480

HCS M12 X 1.75 X 50 GR8.8 ZD

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

32

Husqvarna 539114404

SPACER

$

$

Not available

48

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

59

Husqvarna 539132498

PIN, STRUT, WELDMENT

$133.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506916203

BLIND RIVET NUT

$

$

Not available

26

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539132470

HCS 7/16-14 X 7 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

56

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

61

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 586198910

BLADE

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

51

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 6

0

60

Husqvarna 539127099

WASHER-1.06IDX1.63ODX.06

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539132778

BUSHING, BLADE

$37.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 539112530

DECK BELT, 61 CMB

$145.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

3

Husqvarna 539112508

BELT SHIELD LT

$24.99

$

In Stock, only 1 left!

0

28

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

30

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 505256501

SWIVEL, DECK HEIGHT ADJ

$18.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

54

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

58

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

53

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 539132479

HCS M12 X 1.75 X 60 GR5 ZD

$3.99

$

In Stock, only 1 left!

0

52

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

37

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 506792302

WASHER

$26.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 539115550

WASHER-.533IDX1.37OD

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 535428801

SPACER

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 535428702

AXLE

$102.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112509

BELT SHIELD RT

$

$

Not available

1

Husqvarna 539133057

DECK W/DECALS, 61" HUS

$

$

Not available

14

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

38

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 539112507

PULLEY, 61

$

$

Not available

63

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

5

Husqvarna 544166401

PLUG ASSEMBLY

$

$

Not available

62

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

25

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

46

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

24

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

7

Husqvarna 738220519

BALL BEARING

$32.99

$

In Stock, only 2 left!

0

47

Husqvarna 510254501

DUST SHIELD

$

$

Not available

33

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0
