LZDS902K60RD - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Cooling Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

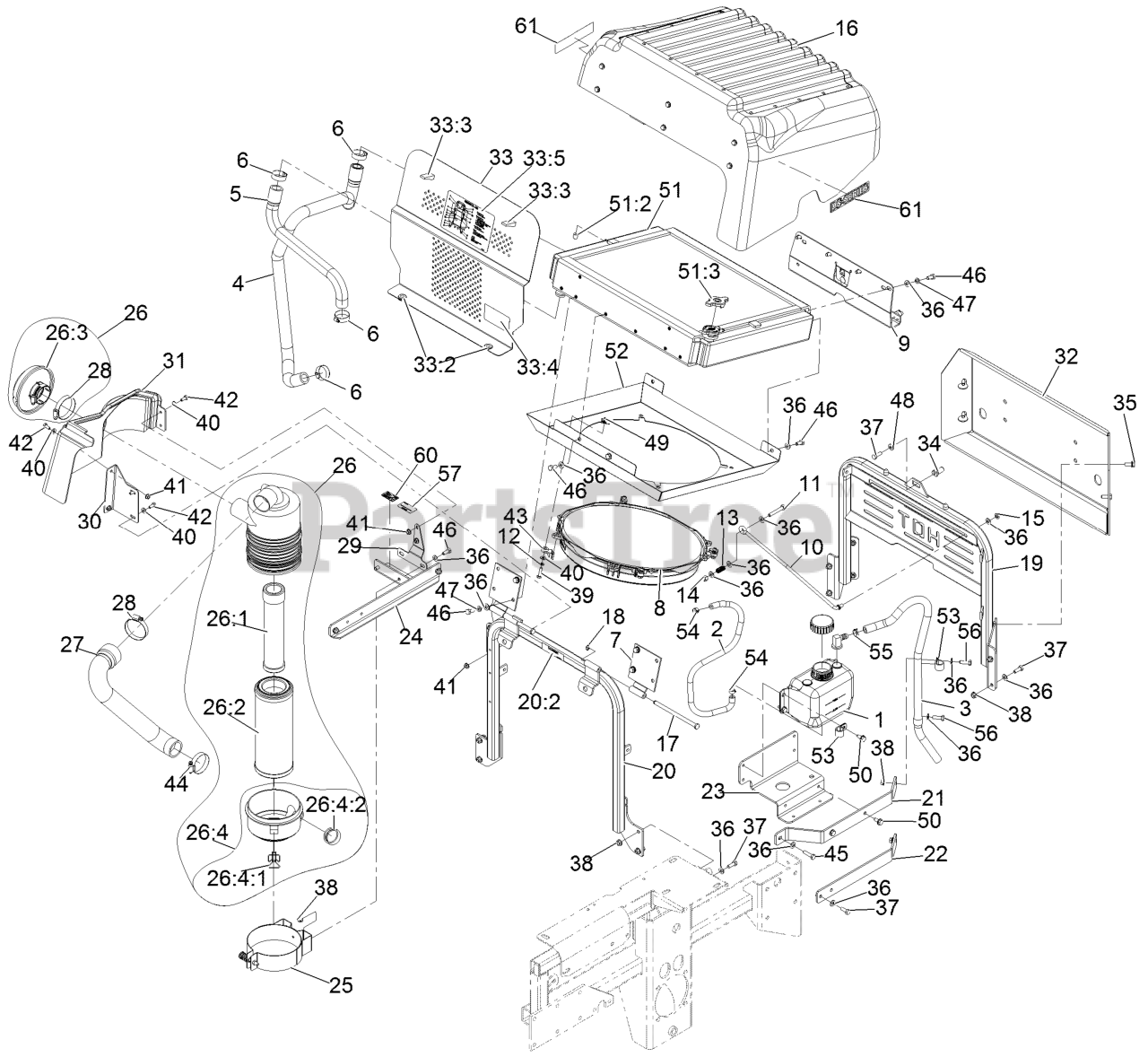

Cooling Assembly Parts Diagram

  • Title

1

Exmark 116-7124

TANK, OVERFLOW W/CAP

$186.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7204

HOSE, .313 I.D.X 25.0 REI

$

$

Not available

3

Exmark 116-7245

HOSE, .500 I.D. X 30" EPD

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3142

HOSE,RADIATOR LOWER D902

$172.99

$

Usually ships in 3-6 days

0

5

Exmark 103-7532

HOSE,RADIATOR UPPER D902(

$138.99

$

Usually ships in 3-6 days

0

6

Exmark 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

7

Exmark 109-3179-03

WLD,HINGE PLATE

$

$

Not available

8

Exmark 116-6274

FAN- ELECTRIC

$830.99

$

Usually ships in 3-6 days

0

9

Exmark 109-8427

ASM-LATCH PLATE

$

$

Not available

10

Exmark 103-9207

ROD,PROP

$46.99

$

Usually ships in 3-6 days

0

11

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

12

Exmark 325-33

SCREW-HH

$15.99

$

In Stock, only 4 left!

0

13

Exmark 103-6643

SPRING,LOCK PIN

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Exmark 109-0917

32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 4 left!

0

16

Exmark 116-6394

HOOD ASM, D902

$

$

Not available

17

Exmark 103-9218

PIN

$20.99

$

In Stock, only 1 left!

0

18

Exmark 32120-18

E-RING

$1.49

$

In Stock, Qty 16

0

19

Exmark 109-8546-03

WLD,REAR GUARD

$723.99

$

Usually ships in 3-6 days

0

20

Exmark 109-2804

ASM, RAD. MOUNT W/ DECALS

$

$

Not available

20:2

Exmark 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

21

Exmark 103-7558-03

RIB, TOP

$

$

Not available

22

Exmark 103-7579-03

RIB, BOTTOM

$

$

Not available

23

Exmark 116-4822-03

BRACKET, BOTTLE-HYDRO TAN

$

$

Not available

24

Exmark 103-9248-03

Wld, Air Cleaner Mount

$

$

Currently unavailable

24

Exmark 109-3257

ASM,AIR CLNR BRKT W/DECAL

$

$

Not available

25

Exmark 103-1058

BRACKET-FILTER, AIR

$120.99

$

Usually ships in 3-6 days

0

26

Exmark 103-5178

FILTER-AIR

$

$

Not available

26:1

Exmark 103-1326

FILTER-AIR, SAFETY

$44.99

$

In Stock, only 3 left!

0

26:2

Exmark 103-1327

FILTER-AIR

$37.99

$

In Stock, only 2 left!

0

26:3

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$78.99

$

Usually ships in 3-6 days

0

26:4

Exmark 103-1060

COVER-FILTER, AIR

$256.99

$

Usually ships in 3-6 days

0

26:4:1

Exmark 99-3174

CLIP-CLEANER, AIR

$19.99

$

In Stock, Qty 5

0

26:4:2

Exmark 109-2820

EJECTOR, NELSON AIR CLEAN

$71.99

$

In Stock, Qty 9

0

27

Exmark 103-7597

HOSE,AIR INTAKE D902(8015

$

$

Not available

28

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

29

Exmark 103-9222-03

BRACKET,REAR COVER

$

$

Not available

30

Exmark 103-9206-03

BRACKET,FRONT COVER

$

$

Not available

31

Exmark 103-9221

PANEL, SIDE

$

$

Not available

32

Exmark 103-1479-03

WLD,REAR BUMPER

$256.99

$

Usually ships in 3-6 days

0

33

Exmark 116-0136

ASM,PANEL W/ DECALS LXS L

$220.99

$

Usually ships in 3-6 days

0

33:2

Exmark 109-0023

GROMMET

$7.49

$

In Stock, Qty 11

0

33:3

Exmark 74-5950

LATCH-SWELL

$26.99

$

In Stock, Qty 20+

0

33:4

Exmark 116-0127

DECAL,HYDRO BELT ROUTING

$

$

Not available

33:5

Exmark 116-0997

DECAL, CHECK SERVICE

$

$

Not available

34

Exmark 109-8432

PIN,LATCH

$

$

Not available

35

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

36

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

38

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

40

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

42

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 109-2950

MOUNT,FAN

$6.49

$

Usually ships in 3-6 days

0

44

Exmark 1-643009

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

46

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

49

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

50

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

51

Exmark 116-5303

RADIATOR ASM, AL D902

$1953.99

$

Usually ships in 3-6 days

0

51:2

Exmark 99-8551

PLUG-PIPE

$

$

Not available

51:3

Exmark 1-643161

CAP-RADIATOR

$93.99

$

In Stock, only 2 left!

0

52

Exmark 116-6296-03

FAN SHROUD,16

$

$

Not available

53

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

54

Exmark 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

55

Exmark 110-6242

CLAMP-HOSE

$5.99

$

Usually ships in 3-6 days

0

56

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

57

Exmark 110-0806

DECAL-CAUTION

$10.99

$

Usually ships in 3-6 days

0

60

Exmark 103-2076

DECAL-CAUTION

$7.49

$

In Stock, only 3 left!

0

61

Exmark 116-6992

DECAL, DS SERIES

$17.99

$

Usually ships in 3-6 days

0
