LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Hydraulic Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

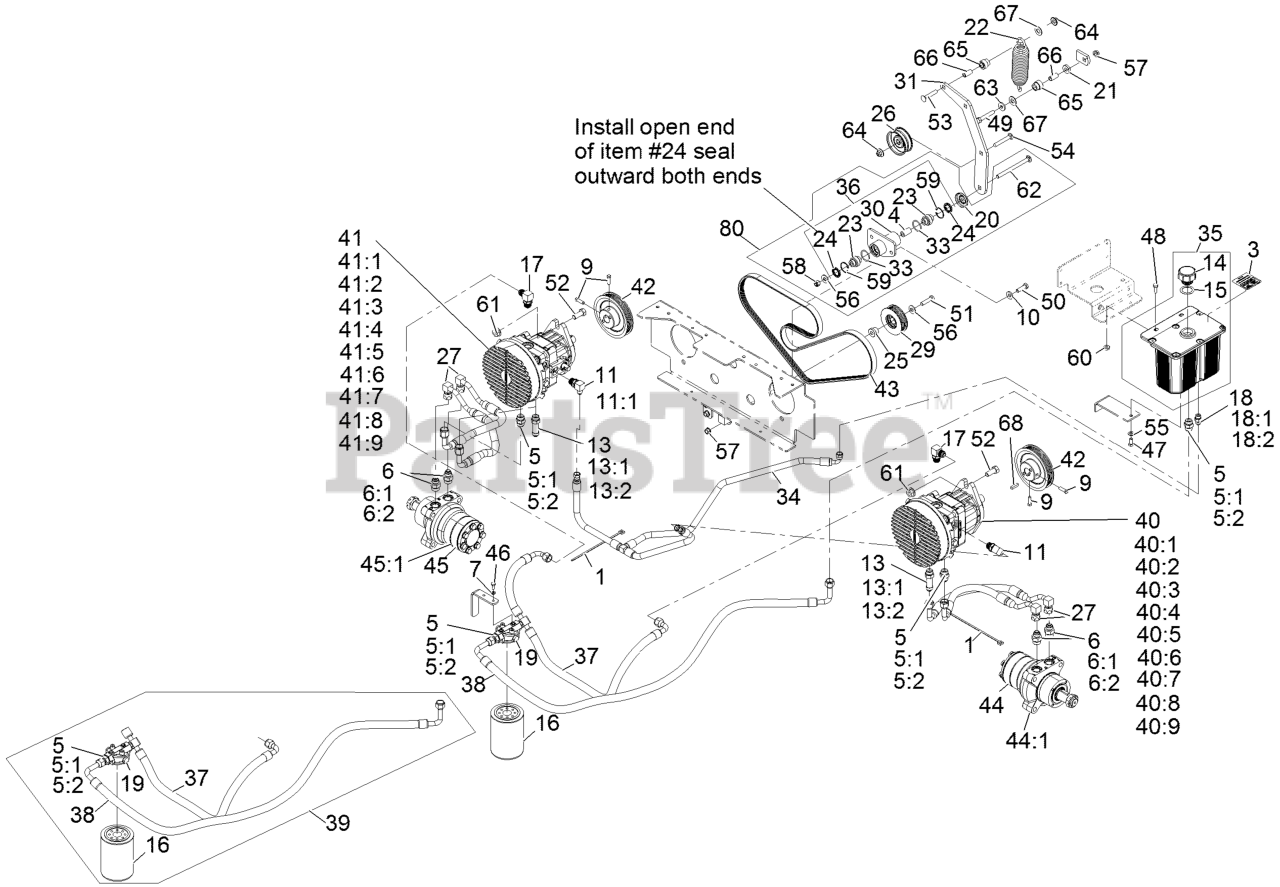

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0

3

Exmark 116-0404

DECAL-HYDRAULIC TANK

$2.49

$

In Stock, Qty 14

0

4

Exmark 1-603401

SPACER

$7.49

$

In Stock, only 2 left!

0

5

Exmark 1-603990

FITTING-STRAIGHT

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$19.99

$

In Stock, Qty 7

0

5:1

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

5:2

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

6

Exmark 1-603991

FITTING-STRAIGHT

$23.99

$

In Stock, Qty 7

0

6:1

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

6:2

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 20+

0

7

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

9

Exmark 30-1710

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$12.99

$

In Stock, Qty 7

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

11

Exmark 103-1014

FITTING-ELBOW, 90 DEG

$43.99

$

Usually ships in 3-6 days

0

11:1

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

13

Exmark 103-1940

ADAPTER-STR, LONG

$27.99

$

In Stock, only 3 left!

0

13:1

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

13:2

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

14

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$36.99

$

In Stock, only 4 left!

0

15

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 103-2146

FILTER,XP HYD 25 MICRON

$74.99

$

In Stock, Qty 19

0

17

Exmark 103-2153

FITTING-90 DEG

$53.99

$

Usually ships in 3-6 days

0

18

Exmark 103-2156

FITTING-STRAIGHT

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$45.99

$

In Stock, only 4 left!

0

18:1

Exmark 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

18:2

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

19

Exmark 103-2259

HEAD-FILTER

$

$

Not available

20

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

21

Exmark 103-3186

SPACER-BRACKET, GUIDE

$24.99

$

In Stock, only 3 left!

0

22

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 16

0

23

Exmark 103-3504

BEARING-SPHERICAL

$27.99

$

In Stock, Qty 17

0

24

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 15

0

25

Exmark 103-4566

SPACER,LOWER FRAME IDLER

$17.99

$

In Stock, only 1 left!

0

26

Exmark 116-0888

IDLER,FLANGED

$69.99

$

In Stock, only 1 left!

0

27

Exmark 103-4679

HYD HOSE ASM

$

$

Not available

29

Exmark 103-4728

ASM,LOWER FRAME IDLER

$169.99

$

In Stock, only 2 left!

0

30

Exmark 103-7559-03

109-3250
(Superseded to 109-3250)

$275.99

$

In Stock, only 2 left!

0

31

Exmark 103-7569-03

ARM,PUMP IDLER

$60.99

$

Usually ships in 3-6 days

0

33

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

34

Exmark 109-0087

ASM,CASE DRAIN HOSE

$169.99

$

Usually ships in 3-6 days

0

35

Exmark 109-0448

109-0582
(Superseded to 109-0582)

$455.99

$

Usually ships in 3-6 days

0

36

Exmark 109-3036

Asm, Pump Idler

$

$

Currently unavailable

37

Exmark 109-6903

ASM, HOSE-PUMP INLET

$199.99

$

Usually ships in 3-6 days

0

38

Exmark 109-6904

ASM, HOSE-FILTER INLET

$188.99

$

Usually ships in 3-6 days

0

39

Exmark 109-6905

ASM, Filter HD. W/ Hoses

$222.99

$

In Stock, only 1 left!

0

40

Exmark 109-7543

PUMP, LH

$1772.99

$

Usually ships in 3-6 days

0

40:1

Exmark 109-8113

100-6110
(Superseded to 100-6110)

$94.99

$

In Stock, only 1 left!

0

40:2

Exmark 109-8109

KIT, INPUT SHAFT

$

$

Not available

40:3

Exmark 103-2670

THRUST BEARING KIT

$90.99

$

Usually ships in 3-6 days

0

40:4

Exmark 94-1913

127-3867
(Superseded to 127-3867)

$240.99

$

Usually ships in 3-6 days

0

40:5

Exmark 100-6112

PLATE-VALVE

$286.99

$

In Stock, only 1 left!

0

40:6

Exmark 116-1739

FAN-7",21CC PW PUMP

$49.99

$

Usually ships in 3-6 days

0

40:7

Exmark 116-0917

GUARD-FAN, PUMP

$76.99

$

Usually ships in 3-6 days

0

40:8

Exmark 109-8110

104-2143
(Superseded to 104-2143)

$45.99

$

Usually ships in 3-6 days

0

40:9

Exmark 106-2053

SHOCK VALVE KIT

$

$

Not available

41

Exmark 109-7544

PUMP, RH

$1772.99

$

Usually ships in 3-6 days

0

41:1

Exmark 109-8113

100-6110
(Superseded to 100-6110)

$94.99

$

In Stock, only 1 left!

0

41:2

Exmark 109-8109

KIT, INPUT SHAFT

$

$

Not available

41:3

Exmark 103-2670

THRUST BEARING KIT

$90.99

$

Usually ships in 3-6 days

0

41:4

Exmark 94-1913

127-3867
(Superseded to 127-3867)

$240.99

$

Usually ships in 3-6 days

0

41:5

Exmark 100-6112

PLATE-VALVE

$286.99

$

In Stock, only 1 left!

0

41:6

Exmark 116-1739

FAN-7",21CC PW PUMP

$49.99

$

Usually ships in 3-6 days

0

41:7

Exmark 116-0917

GUARD-FAN, PUMP

$76.99

$

Usually ships in 3-6 days

0

41:8

Exmark 109-8110

104-2143
(Superseded to 104-2143)

$45.99

$

Usually ships in 3-6 days

0

41:9

Exmark 106-2053

SHOCK VALVE KIT

$

$

Not available

42

Exmark 109-7561

SHEAVE,5K 5.0" PD POLY-V

$136.99

$

Usually ships in 3-6 days

0

43

Exmark 109-7582

BELT, 5K 68.8
(Superseded to 109-7582-SL)

$67.99

$

In Stock, only 3 left!

0

44

Exmark 112-8357

HYD MOTOR ASM (CCW)

$1544.99

$

Usually ships in 3-6 days

0

44:1

Exmark 109-5966

126-7279
(Superseded to 126-7279)

$389.99

$

Usually ships in 3-6 days

0

45

Exmark 112-8358

HYD MOTOR ASM (CW)

$1461.99

$

Usually ships in 3-6 days

0

45:1

Exmark 109-5966

126-7279
(Superseded to 126-7279)

$389.99

$

Usually ships in 3-6 days

0

46

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

47

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

49

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

50

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

51

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

53

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

54

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 13

0

55

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

58

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

59

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

60

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

61

Exmark 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

0

62

Exmark 9000784

BOLT CARR 3/8-16X5

$

$

Not available

63

Exmark 5-0838

WASHER

$4.99

$

Usually ships in 3-6 days

0

64

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

65

Exmark 109-8752

BUSHING,PLASTIC

$27.99

$

In Stock, only 3 left!

0

66

Exmark 109-8753

SPACER

$16.99

$

In Stock, only 2 left!

0

67

Exmark 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 15

0

68

Exmark 1-807259

KEY

$2.49

$

In Stock, only 2 left!

0

80

Exmark 109-3250

KIT,PUMP IDLER

$275.99

$

In Stock, only 2 left!

0
