LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Spindle Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

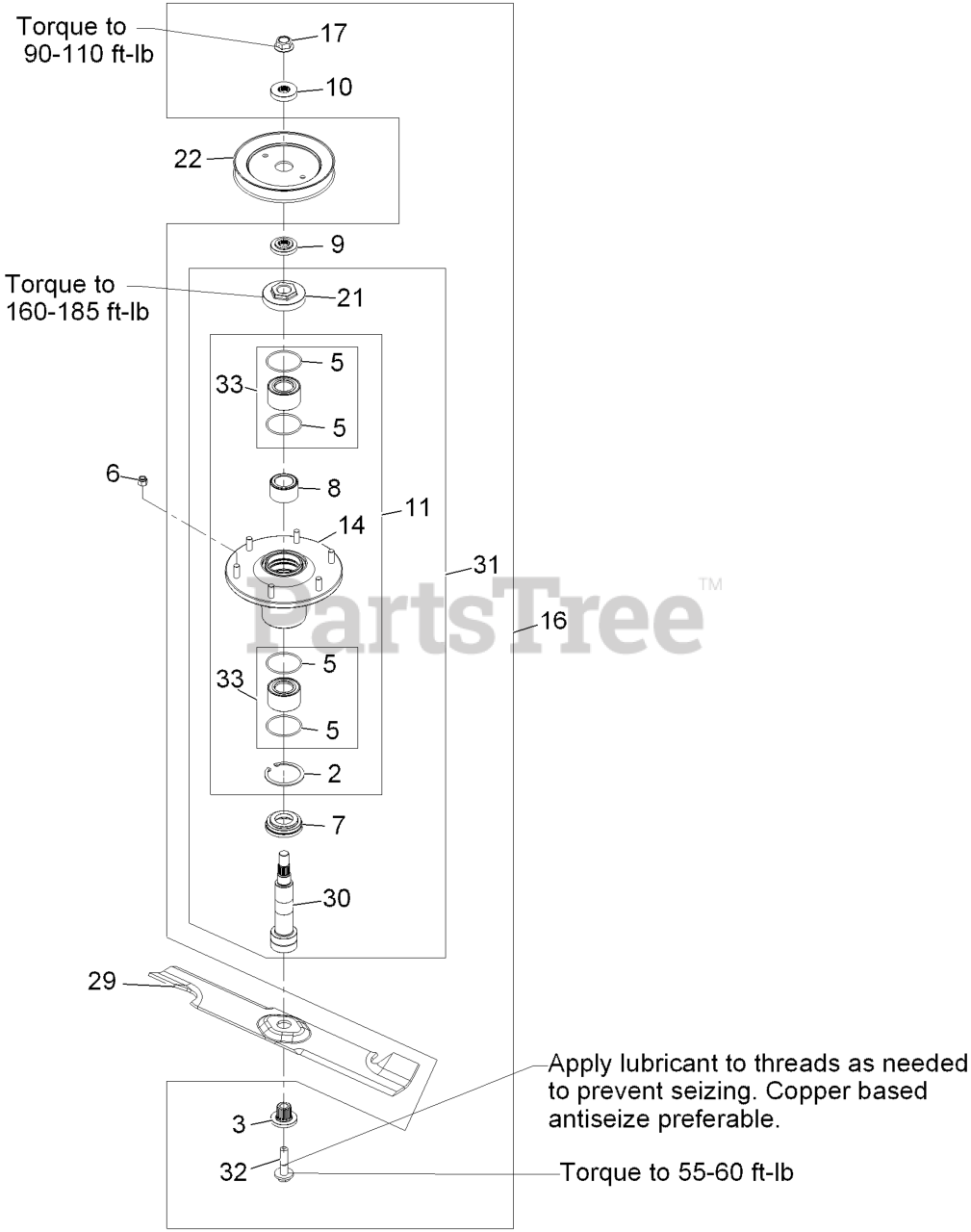

Spindle Assembly Parts Diagram

  • Title

2

Exmark 92-5581

RING-RETAINING

$3.49

$

In Stock, Qty 8

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

5

Exmark 103-5895

O-RING

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

In Stock, Qty 5

0

8

Exmark 103-9506

SPACER,BEARING

$11.99

$

In Stock, Qty 7

0

9

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 20+

0

10

Exmark 103-9523

SPACER,SPLINED

$8.99

$

In Stock, Qty 20+

0

11

Exmark 103-9539

ASM,CUTTER HOUSING

$415.99

$

In Stock, only 2 left!

0

14

Exmark 109-0764

ASM,HOUSING W/STUDS

$106.99

$

In Stock, only 4 left!

0

16

Exmark 109-2102

ASM, CUTTER HSG W/MNT HRD

$831.99

$

Usually ships in 3-6 days

0

17

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-0916

NUT, SPINDLE 7/8-14

$26.99

$

In Stock, only 2 left!

0

22

Exmark 109-0929

SHEAVE,BLADE DRIVE 7.25

$53.99

$

In Stock, Qty 7

0

29

Exmark 109-6465

109-6465-S
(Superseded to 109-6465-S)

$51.99

$

In Stock, Qty 15

0

29

Exmark 103-9622

103-9622-S
(Superseded to 103-9622-S)

$54.99

$

Usually ships in 3-6 days

0

29

Exmark 103-9625

116-5501-S
(Superseded to 116-5501-S)

$61.99

$

In Stock, Qty 5

0

29

Exmark 103-9623

109-6471-S
(Superseded to 109-6471-S)

$51.99

$

In Stock, only 1 left!

0

29

Exmark 109-6465

109-6465-S
(Superseded to 109-6465-S)

$51.99

$

In Stock, Qty 15

0

29

Exmark 109-5879

109-5879-S
(Superseded to 109-5879-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$54.99

$

In Stock, Qty 13

0

29

Exmark 103-9631

116-5501-S
(Superseded to 116-5501-S)

$61.99

$

In Stock, Qty 5

0

30

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$152.99

$

In Stock, Qty 6

0

31

Exmark 109-6917

ASM,SPINDLE HOUSING

$425.99

$

In Stock, Qty 8

0

32

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

33

Exmark 109-2064

ASM, BEARING W/ORINGS

$125.99

$

In Stock, only 3 left!

0
