LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Motion Control Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

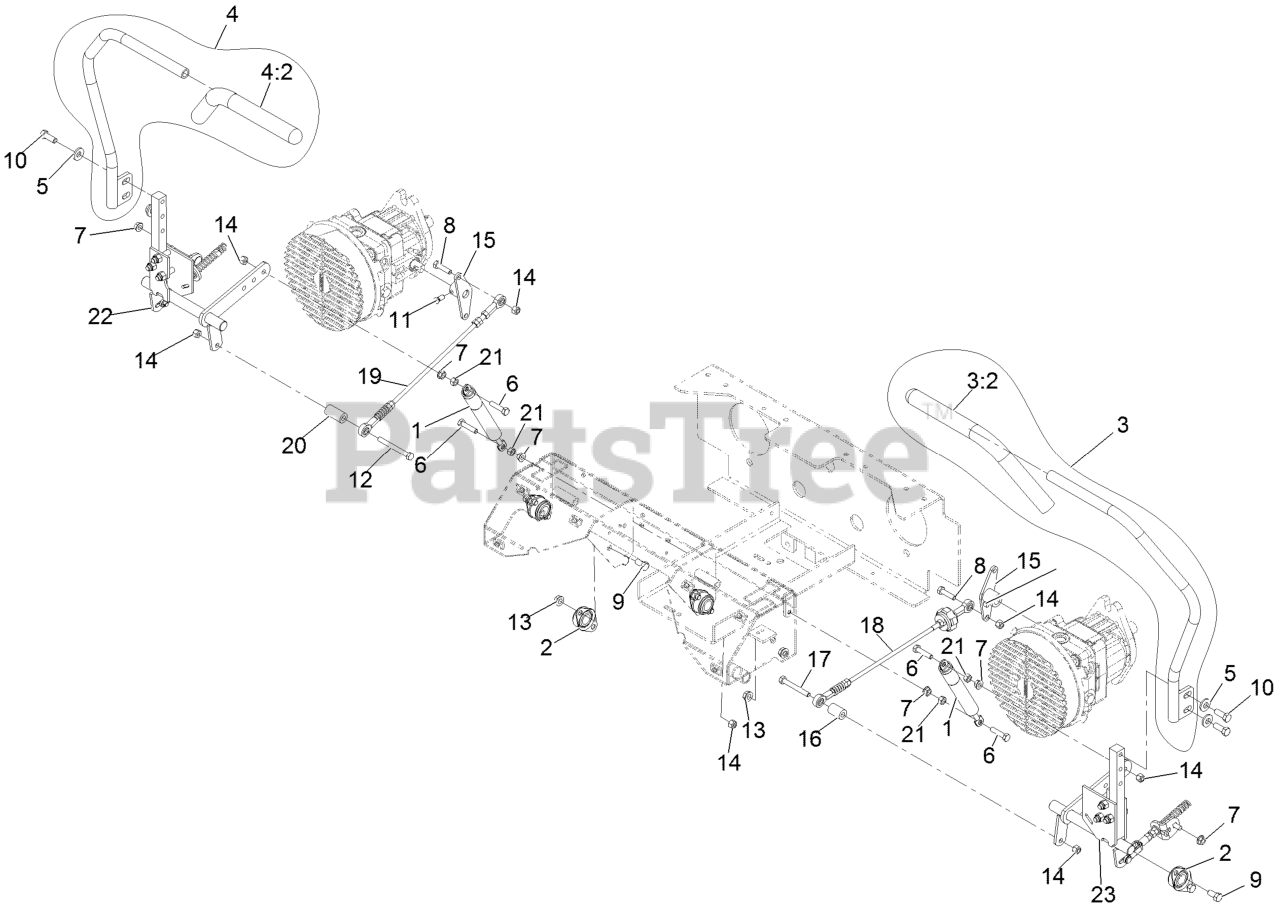

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 109-2339

DAMPER-CONTROL, MOTION

$80.99

$

In Stock, Qty 6

0

2

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

3

Exmark 103-3457

ASM,LH LEVER/GRIP

$105.99

$

In Stock, only 1 left!

0

3:2

Exmark 103-3456

GRIP,CONTROL LEVER

$17.99

$

In Stock, only 2 left!

0

4

Exmark 103-3458

ASM.RH LEVER/GRIP

$105.99

$

In Stock, only 1 left!

0

4:2

Exmark 103-3456

GRIP,CONTROL LEVER

$17.99

$

In Stock, only 2 left!

0

5

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 8

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

9

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

10

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, only 2 left!

0

12

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, only 3 left!

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 103-0194-03

ARM-CONTROL, HYDRO

$71.99

$

Usually ships in 3-6 days

0

16

Exmark 103-1361

SPACER-HYDRO CONTROL, LH

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 9

0

18

Exmark 103-3062

TRACKING ROD ASM

$

$

Not available

19

Exmark 103-5190

RH HYD CONNECT LINK ASM

$90.99

$

Usually ships in 3-6 days

0

20

Exmark 103-5192

SPACER-CONTROL, HYD

$

$

Not available

21

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

22

Exmark 109-3978

RH MOTION CONTROL ASM

$178.99

$

Usually ships in 3-6 days

0

23

Exmark 109-3979

LH MOTION CONTROL ASM

$

$

Not available
