LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Hood Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

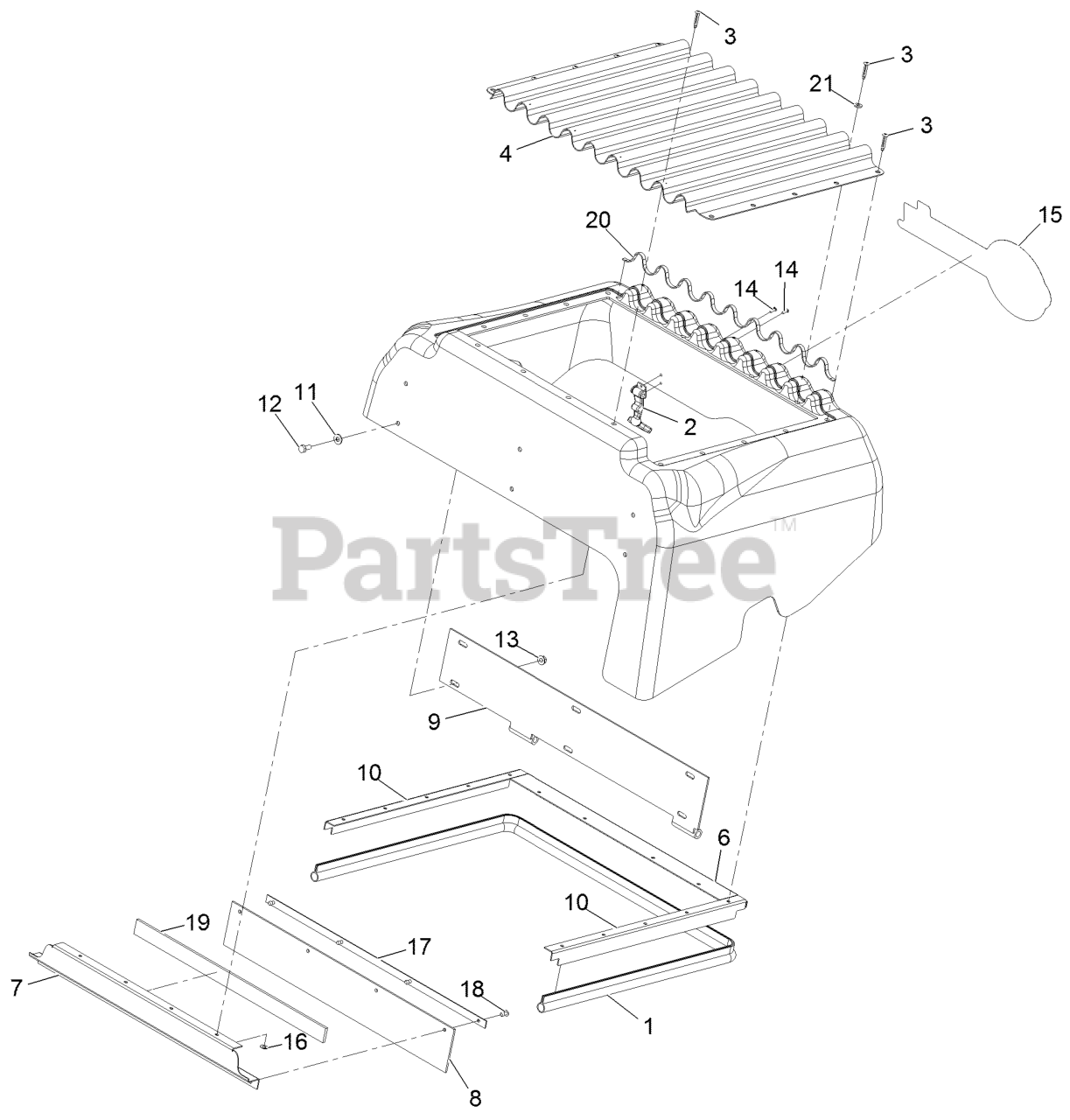

Hood Assembly Parts Diagram

  • Title

1

Exmark 116-5325

Seal-Trim 54.6

$

$

Currently unavailable

2

Exmark 1-643188

LATCH-RUBBER

$21.99

$

In Stock, only 2 left!

0

3

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 103-9201-03

SCREEN, RADIATOR

$251.99

$

Usually ships in 3-6 days

0

6

Exmark 116-5323-03

MOUNT-SEAL REAR

$33.99

$

Usually ships in 3-6 days

0

7

Exmark 116-5302-03

MOUNT-SEAL FRONT

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 116-5160

SEAL-RADIATOR HOOD

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9226-03

WLD, HINGE

$94.99

$

Usually ships in 3-6 days

0

10

Exmark 116-5324-03

MOUNT-SEAL SIDE

$33.99

$

Usually ships in 3-6 days

0

11

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

13

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 16

0

15

Exmark 109-1801

DECAL,EXMARK

$35.99

$

In Stock, only 2 left!

0

16

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

17

Exmark 116-5319-03

PLATE-SEAL BACKUP

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 1-803073

Rivet-Pop

$

$

Currently unavailable

19

Exmark 116-5348

SEAL-FRONT SCREEN

$5.99

$

Usually ships in 3-6 days

0

20

Exmark 116-5349

SEAL-REAR SCREEN

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
