LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Wheel and Tire Assembly No. 116-8644 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

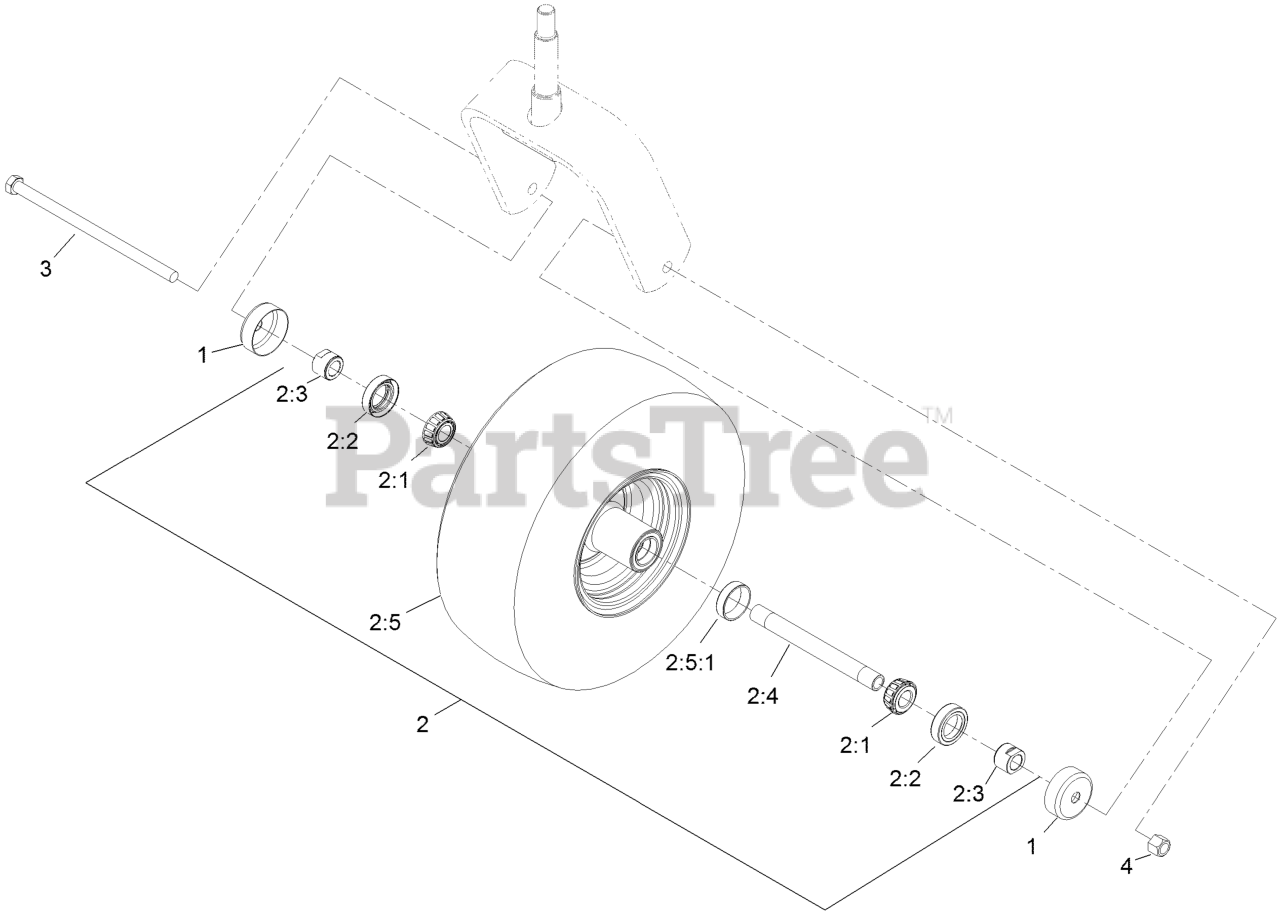

Wheel and Tire Assembly No. 116-8644 Parts Diagram

  • Title

1

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

2

ASM-Whl And Tire

Note: Not serviced separately

$

$

Not available

2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

2:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 13

0

2:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:4

Exmark 103-5156

126-5361
(Superseded to 126-5361)

$19.99

$

In Stock, only 4 left!

0

2:5

ASM-Wheel Tire 15X6.0-6

Note: Not serviced separately

$

$

Not available

2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

3

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 9

0

4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
