LZE20KA484 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Caster Wheel and Fork Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, 20hp Kawasaki

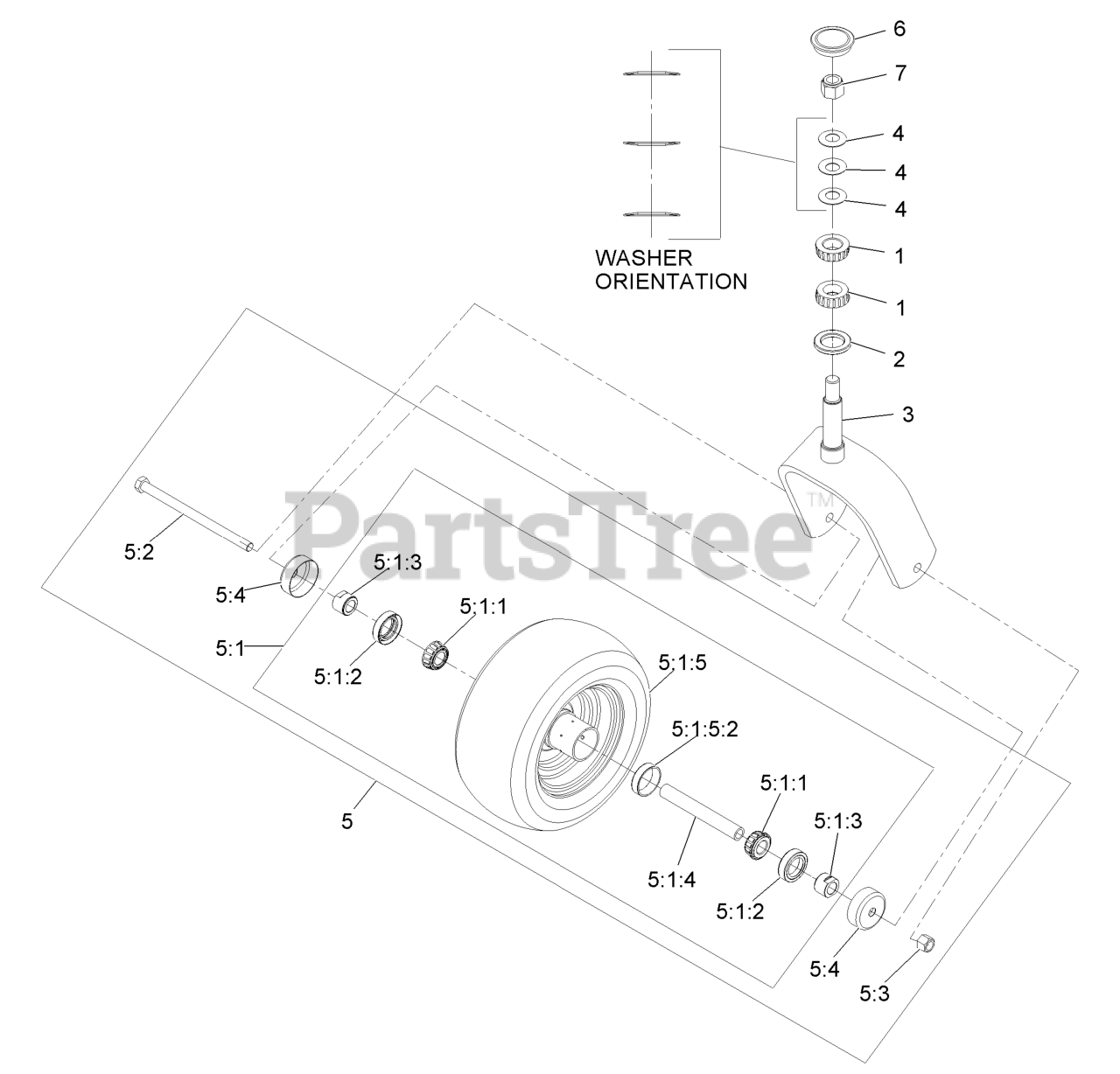

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

2

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

3

Exmark 116-1963-01

116-8886
(Superseded to 116-8886)

$182.99

$

Usually ships in 3-6 days

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

5

Exmark 116-1949

WHEEL AND TIRE ASM

$

$

Not available

5:1

Asm,Wheel, Tire And Brgs 12x5.00-6

Note: Not serviced separately

$

$

Not available

5:1:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

5:1:2

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 5

0

5:1:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

5:1:4

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$15.99

$

In Stock, only 4 left!

0

5:1:5

Asm,Wheel And Tire 12x5.00-6

Note: Not serviced separately

$

$

Not available

5:1:5:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

5:2

Exmark 325-42

SCREW-HH

$14.99

$

In Stock, Qty 11

0

5:3

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

5:4

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0
