LZE20KA484 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Deck Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, 20hp Kawasaki

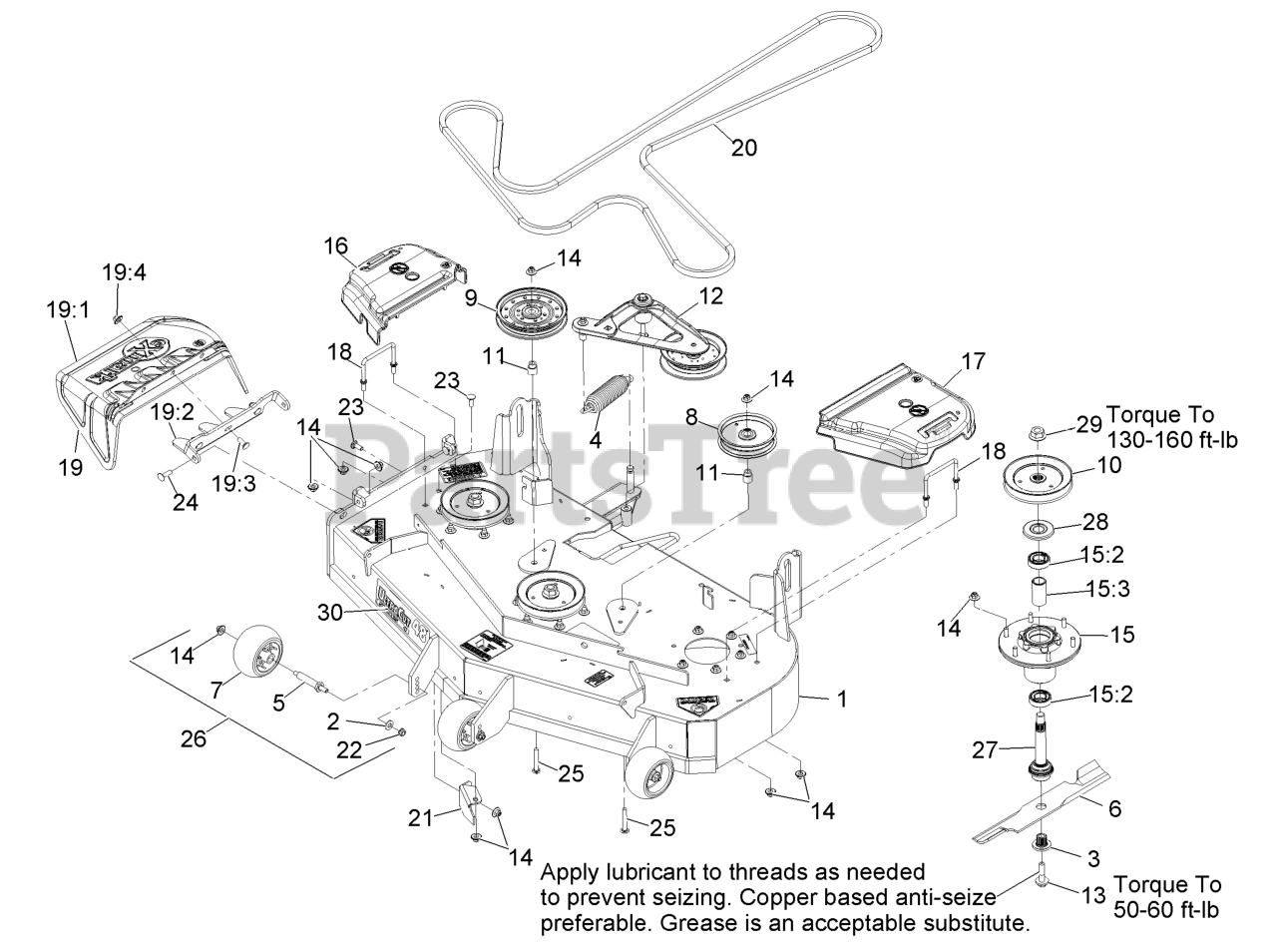

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-1978

116-8899
(Superseded to 116-8899)

$2908.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 16

0

5

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$41.99

$

In Stock, Qty 16

0

6

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$36.99

$

In Stock, Qty 20+

0

6

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$36.99

$

In Stock, Qty 20+

0

6

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

6

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$34.99

$

In Stock, only 2 left!

0

6

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$33.99

$

In Stock, Qty 9

0

7

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 7

0

9

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$66.99

$

In Stock, Qty 13

0

10

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$88.99

$

In Stock, only 2 left!

0

11

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

12

Exmark 116-3755

DECK IDLER ASM

$292.99

$

In Stock, only 2 left!

0

13

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 19

0

15:2

Exmark 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 10

0

15:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

0

16

Exmark 109-6935

COVER-BELT, RH

$42.99

$

Usually ships in 3-6 days

0

17

Exmark 109-6936

COVER-BELT, LH

$42.99

$

In Stock, only 2 left!

0

18

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

19

Exmark 109-7188

ASM,DISCHARGE CHUTE

$125.99

$

In Stock, only 2 left!

0

19:1

Exmark 109-2738

CHUTE,DISCHARGE

$88.99

$

In Stock, Qty 8

0

19:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$59.99

$

In Stock, only 3 left!

0

19:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 116-1965

109-8070
(Superseded to 135-5775)

$148.99

$

In Stock, only 2 left!

0

21

Exmark 109-9010-01

BAFFLE,DISCHARGE

$

$

Not available

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

25

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

26

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$55.99

$

In Stock, Qty 20+

0

27

Exmark 116-3341

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, Qty 7

0

28

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, only 2 left!

0

29

Exmark 104-0753

NUT-FLANGE

$4.99

$

In Stock, Qty 18

0

30

Exmark 116-0033

DECAL,ULTRACUT 48 SERIES

$21.99

$

Usually ships in 3-6 days
