LZE651GKA484A2 - Exmark 48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) Deck Assembly Parts Diagram

48" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

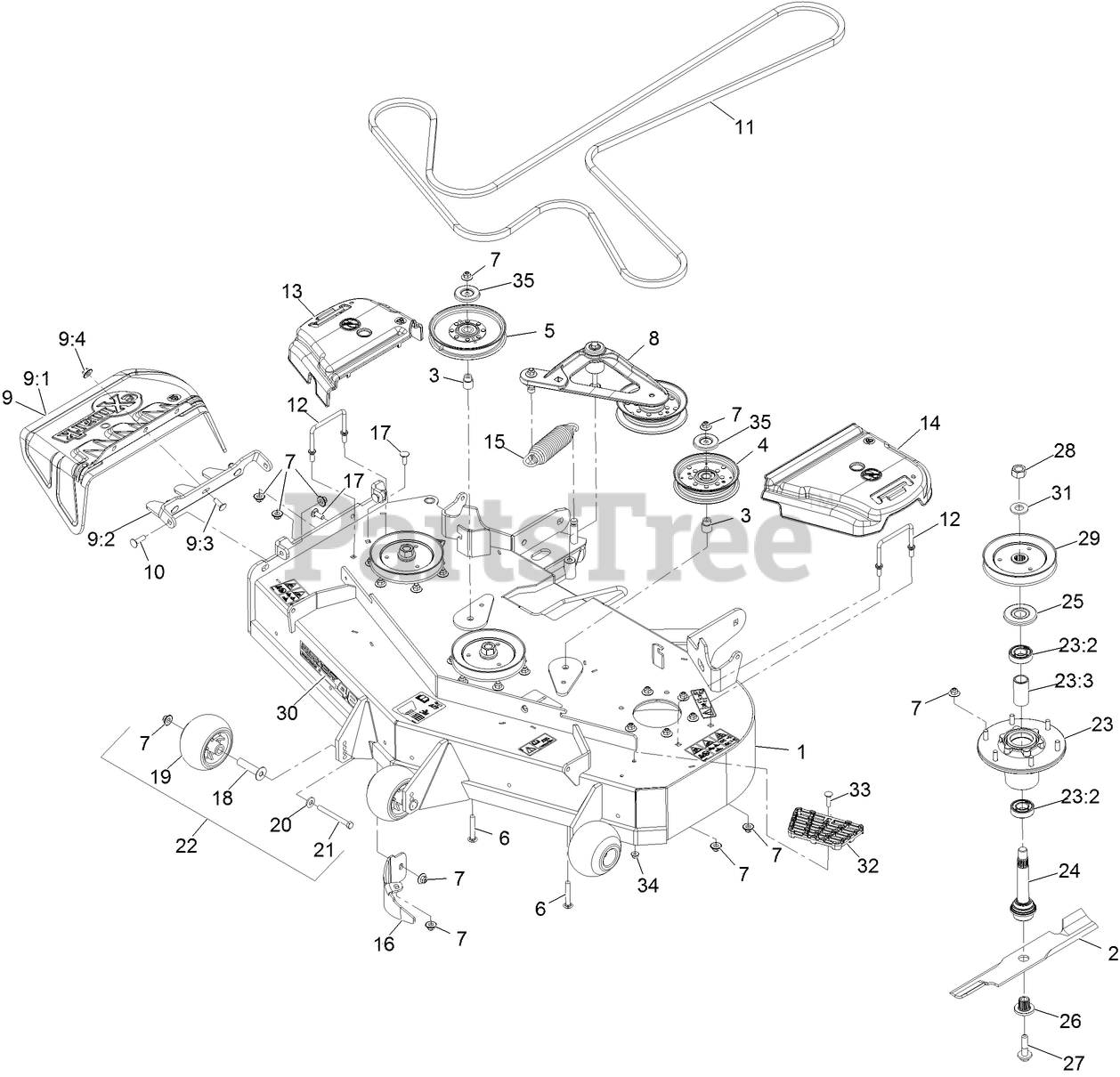

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9008

ASM,DECK W/DECALS 48

$4436.99

$

Usually ships in 3-6 days

0

2

Exmark 103-6381

USE 103-6381-S
(Superseded to 103-6381-S)

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

0

2

Exmark 103-6386

USE 103-6386-S
(Superseded to 103-6386-S)

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

0

2

Exmark 103-6391

USE 103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

2

Exmark 103-6401

USE 103-6401-S
(Superseded to 103-6401-S)

$33.99

$

In Stock, Qty 9

0

2

Exmark 116-5177

USE 116-5177-S
(Superseded to 116-5177-S)

Note: Optional Equipment

$34.99

$

In Stock, only 4 left!

0

3

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

4

Exmark 126-9187

PULLEY-IDLER, FLAT

$63.99

$

In Stock, Qty 5

0

5

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 13

0

6

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-3755

DECK IDLER ASM

$292.99

$

In Stock, only 2 left!

0

9

Exmark 109-7188

ASM,DISCHARGE CHUTE

$125.99

$

In Stock, only 2 left!

0

9:1

Exmark 109-2738

CHUTE,DISCHARGE

$88.99

$

In Stock, Qty 8

0

9:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$59.99

$

In Stock, only 3 left!

0

9:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

11

Exmark 109-8070

BELT
(Superseded to 109-8070-SL)

$157.99

$

Usually ships in 3-6 days

0

12

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

13

Exmark 109-6935

COVER-BELT, RH

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 109-6936

COVER-BELT, LH

$42.99

$

In Stock, only 2 left!

0

15

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

16

Exmark 116-5995-01

BAFFLE-DOGLEG,LZS LZX VT48

$74.99

$

Usually ships in 3-6 days

0

17

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

0

19

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

21

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 12

0

22

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$55.99

$

In Stock, Qty 20+

0

23

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 5

0

23:2

Exmark 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 12

0

23:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

0

24

Exmark 116-3341

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, Qty 7

0

25

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, only 2 left!

0

26

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

0

27

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

0

28

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 20+

0

29

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$88.99

$

In Stock, only 2 left!

0

30

Exmark 126-6587

DECAL, 484

$10.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

32

Exmark 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

0

33

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 9

0

34

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

35

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0
