LZE691KA524 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V (SN: 312000000 - 312999999) (2012) Parking Brake Handle Assembly No. 116-7551 Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX691V

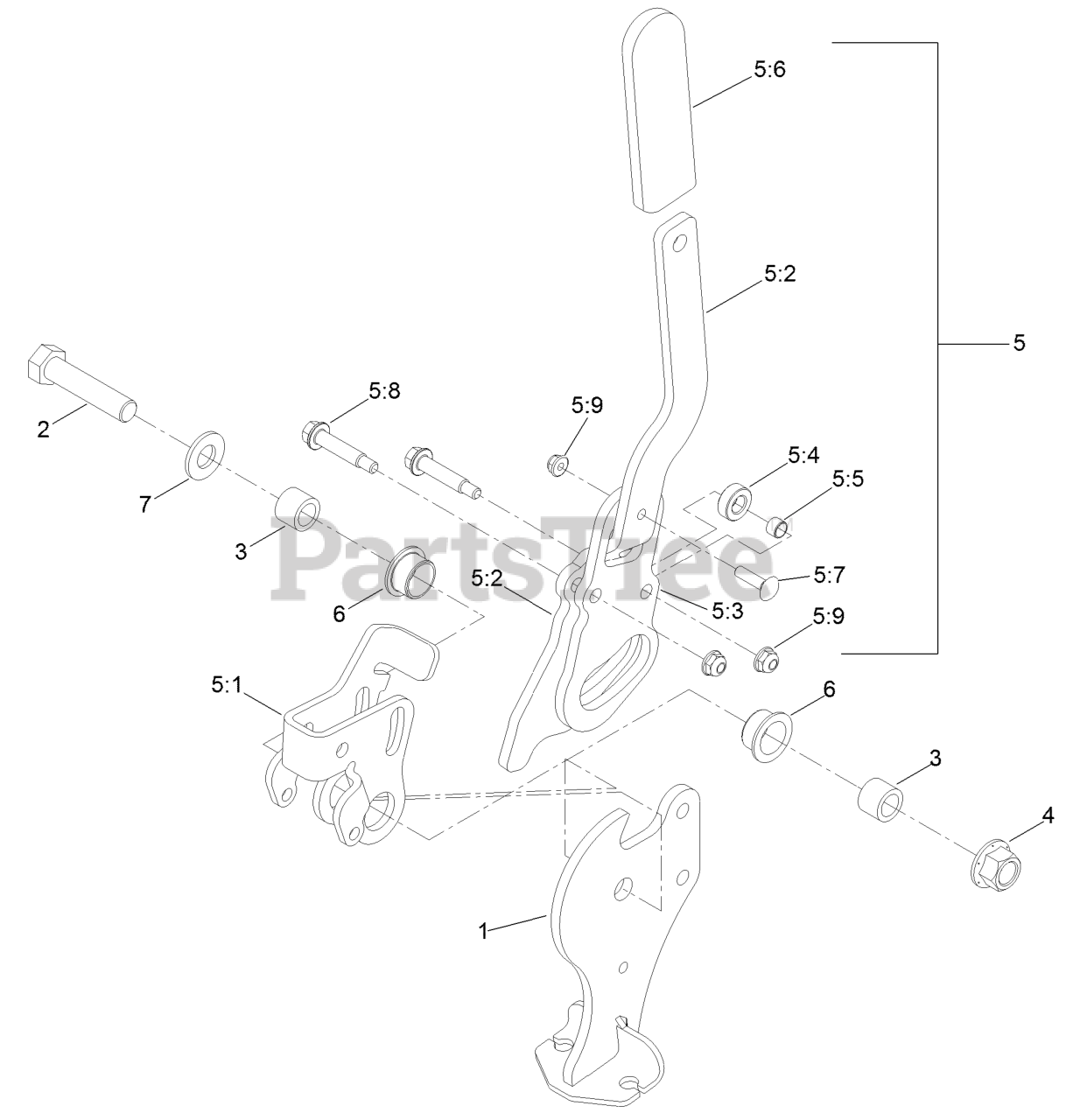

Parking Brake Handle Assembly No. 116-7551 Parts Diagram

  • Title

1

Exmark 116-7263

PIVOT-BRAKE

$52.99

$

Usually ships in 3-6 days

0

2

Exmark 325-9

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

3

Exmark 116-5384

SPACER

$5.49

$

In Stock, only 1 left!

0

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

5

Exmark 116-6860

HANDLE ASM

$95.99

$

Usually ships in 3-6 days

0

5:1

Exmark 116-6856

BELLCRANK-BRAKE

$25.99

$

Usually ships in 3-6 days

0

5:2

Exmark 116-6857

HANDLE-BRAKE

$45.99

$

Usually ships in 3-6 days

0

5:3

Exmark 116-6858

PLATE-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5:4

Exmark 116-6846

ROLLER-BRAKE

$6.49

$

In Stock, only 4 left!

0

5:5

Exmark 116-6852

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

5:6

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 20+

0

5:7

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 6

0

5:8

Exmark 116-6876

SCREW-SHOULDER

$2.99

$

In Stock, only 4 left!

0

5:9

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

7

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
