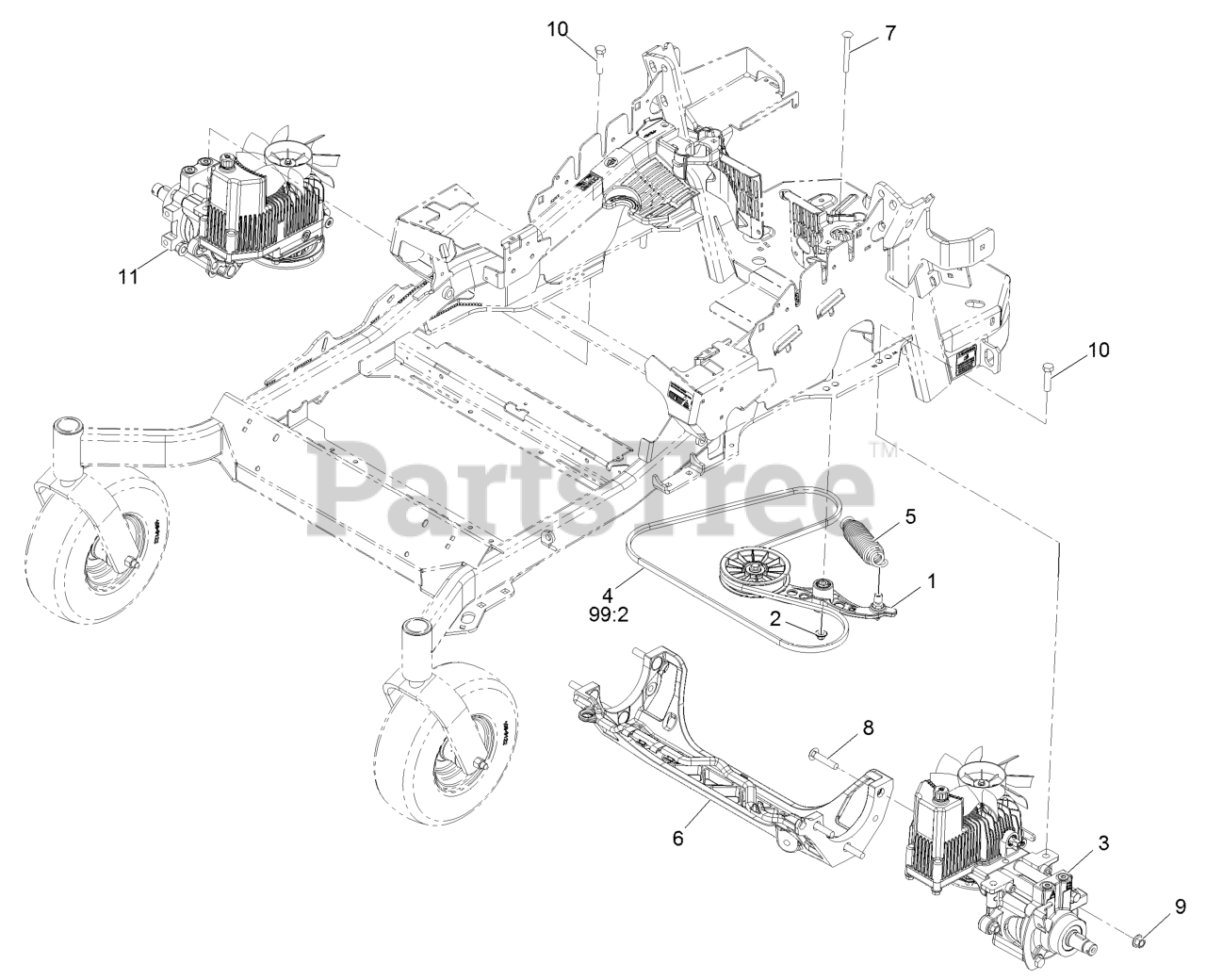

LZE730EKC604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler (SN: 312000000 - 312999999) (2012) Hydraulic Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-1255

PUMP IDLER ASM

$230.99

$

In Stock, Qty 9

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-6413

126-1323
(Superseded to 135-7903)

$3728.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$47.99

$

Usually ships in 3-6 days

0

5

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

6

Exmark 109-9375

116-7558
(Superseded to 116-7558)

$241.99

$

In Stock, only 1 left!

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$8.49

$

In Stock, only 1 left!

0

8

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 14

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.99

$

In Stock, Qty 12

0

11

Exmark 116-6414

126-1324
(Superseded to 135-7904)

$3728.99

$

Usually ships in 3-6 days

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$76.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

Bottle,Oil 1 Gallon Hydraulic

Note: Not illustrated

$71.99

$

In Stock, Qty 20+

0

99

Exmark 116-3270

126-8103
(Superseded to 126-8103)

Note: Not illustrated

$269.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$47.99

$

Usually ships in 3-6 days

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$76.99

$

In Stock, Qty 20+

0
