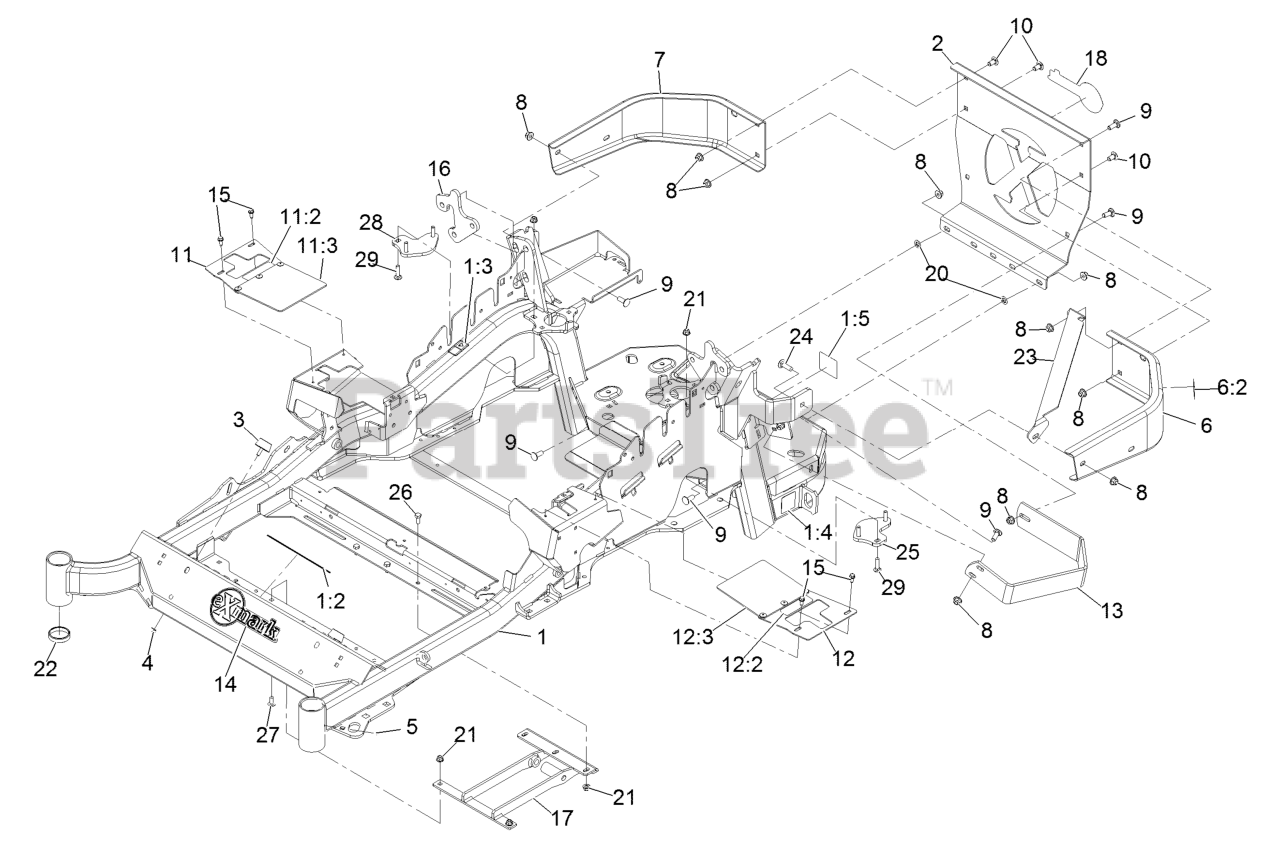

LZE730GKA524C2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5900

Mainframe ASM
(Superseded to 142-7272)

$3079.99

$

Usually ships in 3-6 days

0

1:2

Exmark 132-0871

Decal-Danger

$8.49

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

1:4

Exmark 106-2655

Decal-Hazard, Pinched Finger

$1.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

Decal-Spark Arrester

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

Plate,Rear Guard

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 131-8834

Bumper

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-0180

LH Bumper ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-0057-03

Bumper-RH

$213.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

10

Exmark 3231-21

Bolt-Carriage 3/8-16 X 3/4

$1.49

$

In Stock, only 1 left!

0

11

Exmark 131-4615

RH Motion Control Cover ASM

$114.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

11:3

Exmark 136-8967

Flap-Rubber

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 131-4610

LH Motion Control Cover ASM

$114.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

Decal-Control, Motion

$20.99

$

Usually ships in 3-6 days

0

12:3

Exmark 136-8967

Flap-Rubber

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

Guard-Muffler

$58.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

Decal-Exmark

$25.99

$

In Stock, only 2 left!

0

15

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 12

0

16

Exmark 136-1674-01

Plate-Mount, Shock

$22.99

$

Usually ships in 3-6 days

0

17

Exmark 131-6327-01

Mount-Lower

$135.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6965

Decal-Exmark Logo
(Superseded to 126-6877)

$7.49

$

In Stock, Qty 20+

0

20

Exmark 107-3154

Nut-Push 3/8-16

$1.49

$

In Stock, Qty 12

0

21

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 20+

0

23

Exmark 127-0324-03

Strap

$24.99

$

Usually ships in 3-6 days

0

24

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

25

Exmark 127-6766

LH Plate ASM (W/Studs)

$39.99

$

Usually ships in 3-6 days

0

26

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

28

Exmark 127-6765

RH Plate ASM (W/Studs)

$39.99

$

Usually ships in 3-6 days

0

29

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0
